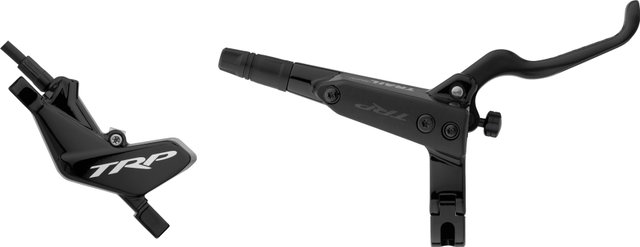

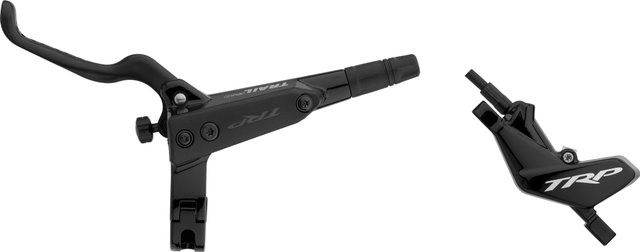

TRP Trail EVO Disc Brake

The TRP Trail EVO disc brake with four pistons for E-MTBs

The Trail EVO from TRP is a hydraulic disc brake with four stainless steel pistons, which was especially designed for use on e-mountain bikes.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

All Mountain, Enduro, Downhill

Type:

hydraulic, 4 pistons

Actuation:

mineral oil

Hose Length (Front/Rear):

1900 mm

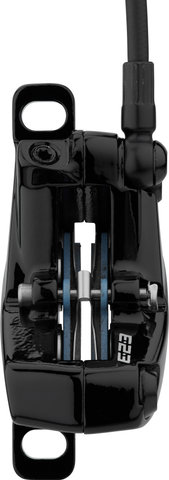

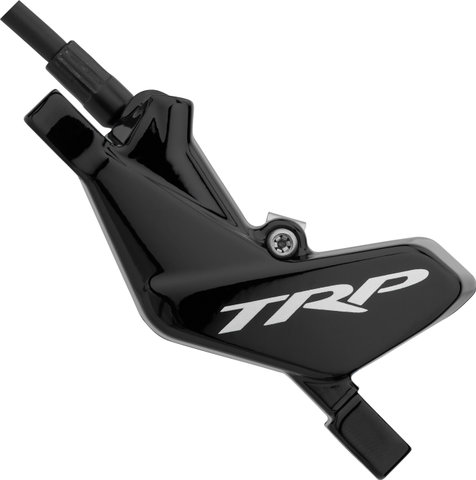

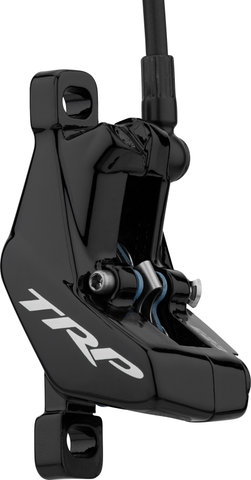

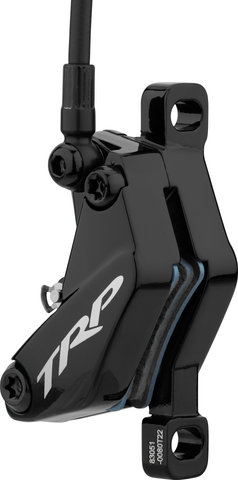

Technical Information - Caliper:

Caliper Mount:

post mount

Pads:

organic

Design:

two-part

Calliper Material:

aluminium

Piston Material:

stainless steel

Hose Connection:

banjo

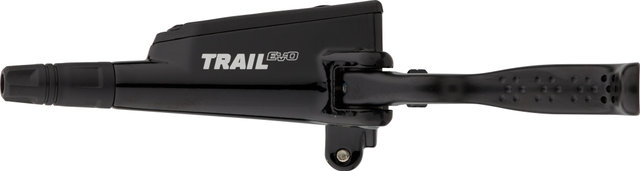

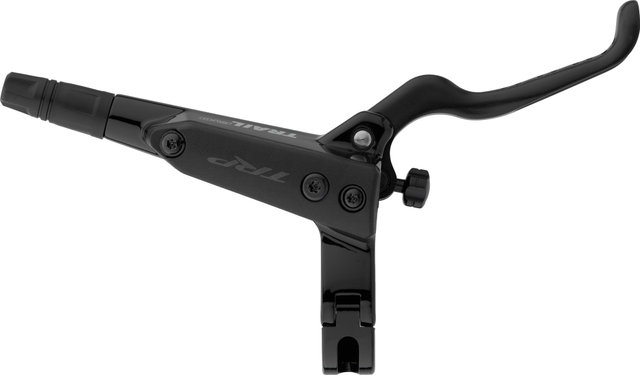

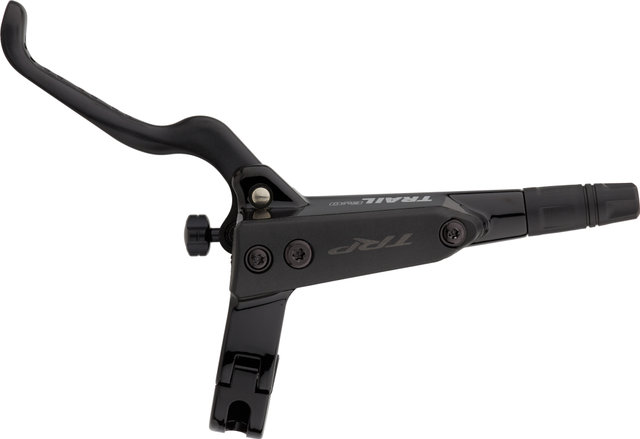

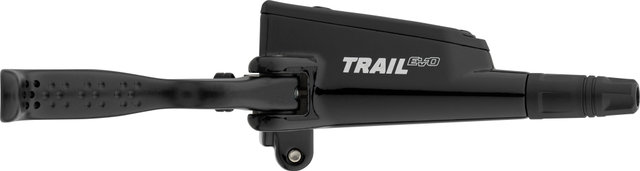

Technical Information - Lever:

Lever Length:

1-finger

Adjustment Options:

grip width

Mount:

clamp (split), I-Spec II, compatible with Matchmaker or I-Spec EV with available adapters

Design:

side-specific left (front) / right (rear)

Brake Lever Material:

aluminium

Brake Lever Housing Material:

aluminium

Hose Connection:

straight

Compatibility:

• brake rotors with 2.3 mm thickness

Features:

• hydraulic four-piston brake, especially for e-mountain bikes
• brake caliper with more stability and better oil flow than the previous model
• ergonomic and weight-optimised brake lever with structured blade and 10 mm piston for a powerful transmission ratio and less effort
• adjustable grip width
• brake lever designed in collaboration with professional downhiller Aaron Gwin
• brake hose with 5 mm diameter for more stability and pressure, higher temperature stability and easy internal cable routing
• revised organic brake pad compound for quieter operation, shorter brake run in and higher heat resistance
• easy brake pad replacement without needing to remove the rear wheel
• with heat-resistant, good-flowing mineral oil

Manufacturer Numbers:

Front:

ABHD000786

Rear:

ABHD000787

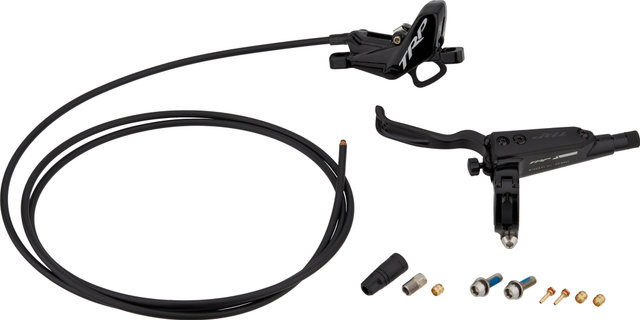

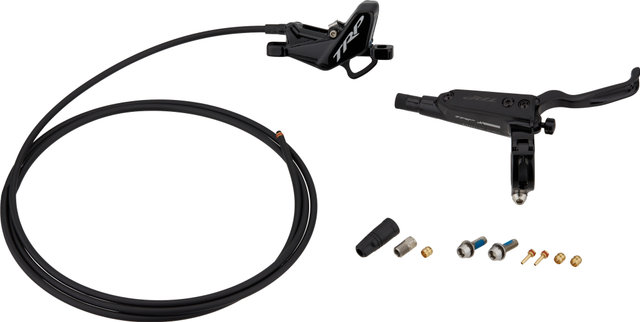

Contents:

• 1 x TRP Trail EVO disc brake
• 1 x TRP brake hose
• 2 x insert
• 3 x olive
• 1 x compression hose nut
• 2 x bolts
• 1 x cover

Order Together:

• HD 3.7 shift lever adapter for SRAM Matchmaker

• black/Front wheel/Left (side-specific): 307 g
