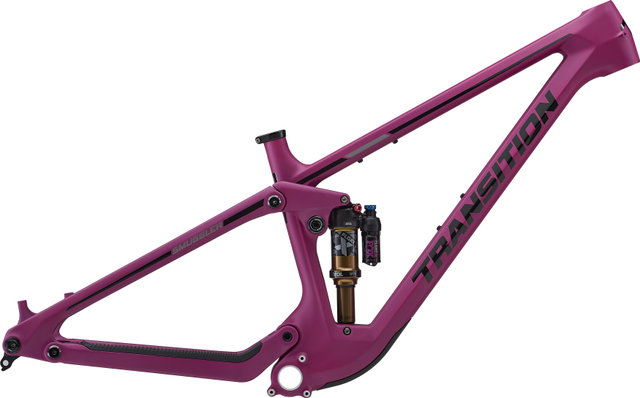

Transition Smuggler Carbon 29" Frame kit

Specifications:

Application:

Cross Country, All Mountain

Wheel Size:

29"

Travel:

130 mm

Size:

L, XL

Front Triangle Material:

carbon

Rear Triangle Material:

carbon

Linkage Design:

GiddyUp

Rear Shock:

Fox Racing Shox Float X Factory

Technical Information:

Wheel Standard:

12 x 148 mm (Boost)

Axle Type:

12 mm thru-axle

Seatpost (Ø):

31.6 mm

Seatpost Clamp(Ø):

37 mm

Headset:

IS42 - IS52 (top to bottom)

Steerer tube rec.:

1 1/8" – 1.5" tapered

Recommended Fork Axle to Crown:

552 mm

Recommended Fork Travel:

140 mm

Bottom Bracket Standard:

BSA

Shell Width:

73 mm

Chainline:

52 - 55 mm (Boost)

Chainstay Guide:

ISCG05

Brake Mount:

Disc PM7 (direct mount 180 mm)

Front Derailleur Mount:

not possible

Rear Shock Eye-to-Eye Measurement:

210 mm

Rear Shock Stroke:

50 mm

Bottle Cage Mounts:

1

Approved For:

Rotor Size (max.):

203 mm

Tyre Size (max.):

29 x 2.5"

Chainrings:

1x

Chainring Size (max.):

1x 34 T (Chainline 52 mm)

Features:

• Agile 29" carbon frame with Fox Racing Shox shock for Cross Country and All Mountain
• Speed Balanced Geometry with a flat steering angle and low fork offset for agility, traction, control, and confidence
• GiddyUp Suspension with balanced progression over 27% and tuned anti-squat
• SRAM UDH universal derailleur hanger
• Clean cable routing through integrated channels in the downtube and through the rear end
• Integrated rubber frame protectors on high-wear areas such as the downtube and chainstays
• Mounting points on the underside of the top tube for accessory holders
• Also compatible with coil shocks

Geometry:

Recommended Height:

178 - 188 cm

Stack:

625 mm

Reach:

485 mm

Seat Tube Length:

430 mm

Effective Top Tube Length:

617 mm

Head Tube Length:

120 mm

Chainstay Length:

440 mm

Wheelbase:

1247 mm

Bottom Bracket Height:

340 mm

Seat Tube Angle:

78.1°

Head Tube Angle:

65°

Recommended Height:

188 - 198 cm

Stack:

635 mm

Reach:

510 mm

Seat Tube Length:

460 mm

Effective Top Tube Length:

645 mm

Head Tube Length:

130 mm

Chainstay Length:

440 mm

Wheelbase:

1277 mm

Bottom Bracket Height:

340 mm

Seat Tube Angle:

77.6°

Head Tube Angle:

65°

Manufacturer Numbers:

L:

NO-01-23-10-3915

XL:

NO-01-23-10-3917

Contents:

• 1 x Transition Smuggler 29" frame kit
• 1 x Fox Racing Shox Float X Factory rear shock
• 1 x FSA 42/48/ACB headset
• 1 x Transition thru axle
