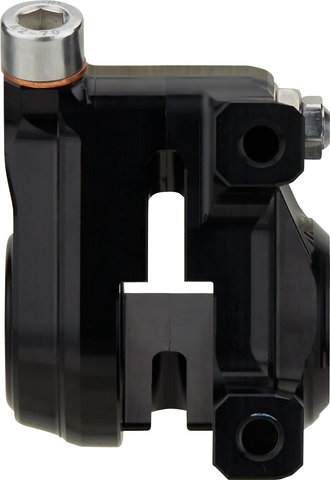

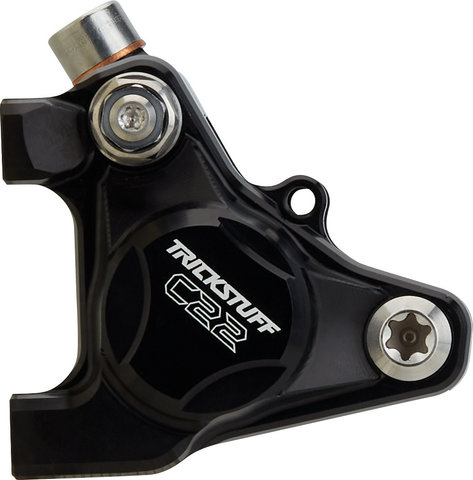

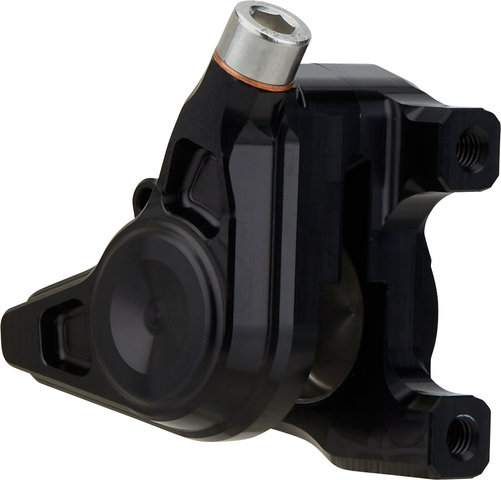

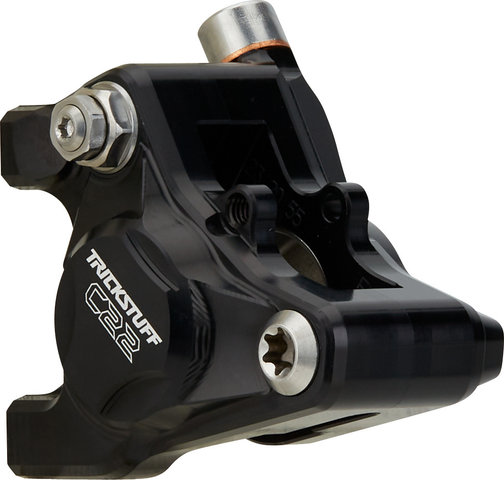

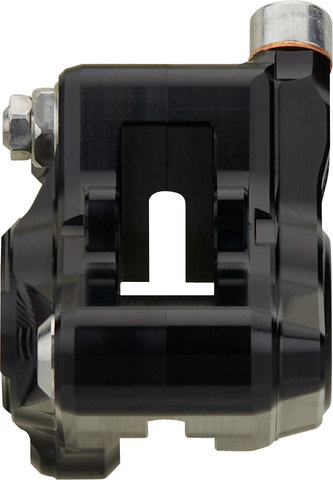

Trickstuff C22 Flatmount Brake Caliper

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

Cross Country, Cyclocross, Gravel, Road

Type:

hydraulic, 2 pistons

Actuation:

mineral oil

Technical Information:

Caliper Mount:

flat mount

Pads:

POWER-A organic

Calliper Material:

aluminium

Piston Material:

stainless steel

Compatibility:

Mounting Position:

front or rear wheel

Features:

• flat mount brake caliper for the Piccola
• defined bite point and fine modulation of braking force
• made of CNC-milled 7075-T6 aircraft aluminium
• high heat resistance due to polished stainless steel pistons
• strong and low-noise POWER+ pads with reduced risk of fading
• pad distance to the disc of 0.2 mm to counteract grinding
• with temperature-stable, biodegradable bionol with an extremely high boiling point of 420 °C
• easy, fast and clean bleeding
• suitable for the increased requirements of e-bikes
• common brake pad shape for easy replacement
• with optionally available interfaces, direct mount for various SRAM or Shimano shift levers is possible
• made in Germany

Manufacturer Numbers:

black:

BLCA22FBS0000S

silver:

BLCA22FBL0000S

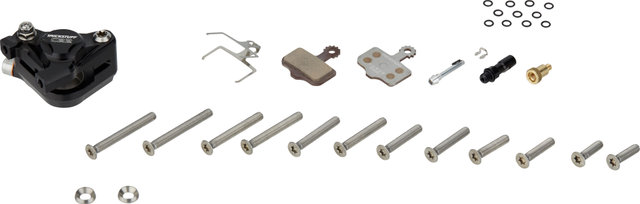

Contents:

• 1 x Trickstuff C22 flat mount brake caliper
• 1 pair of Trickstuff POWER+ brake pads
• 1 x pad retaining bolt
• 1 x snap ring
