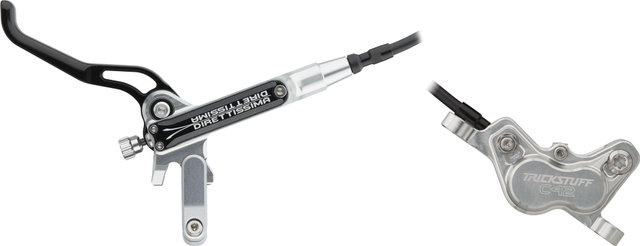

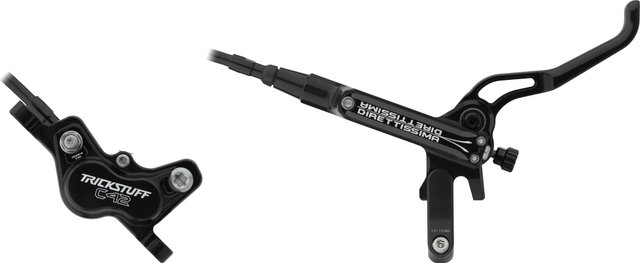

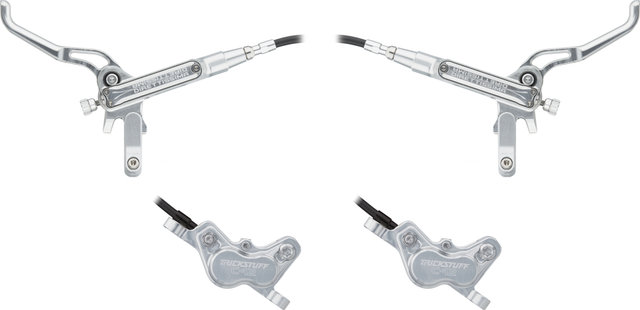

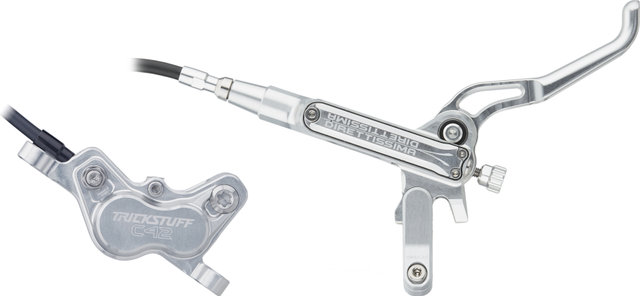

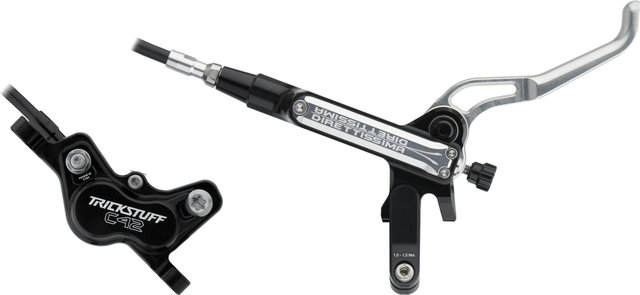

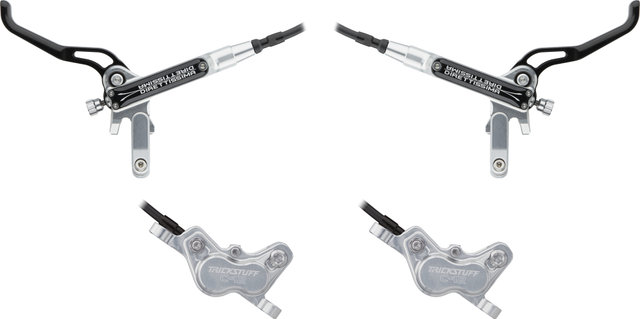

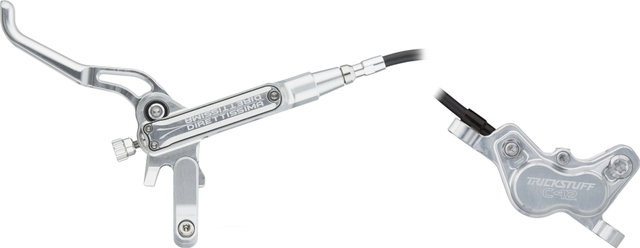

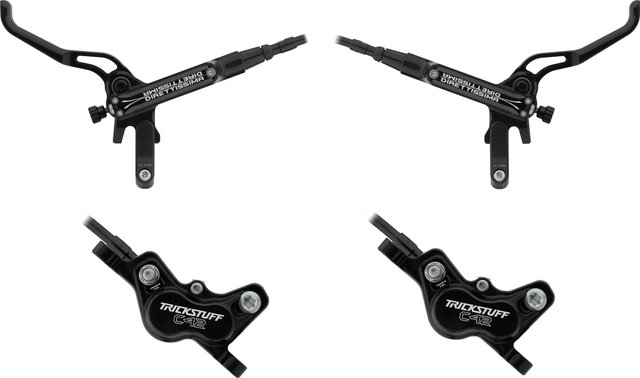

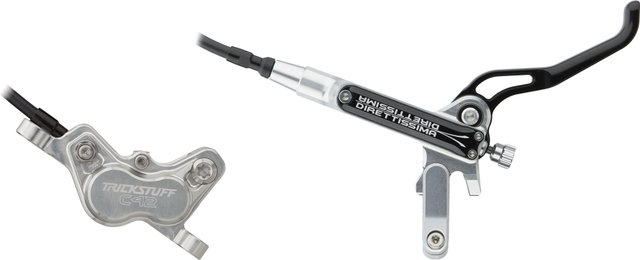

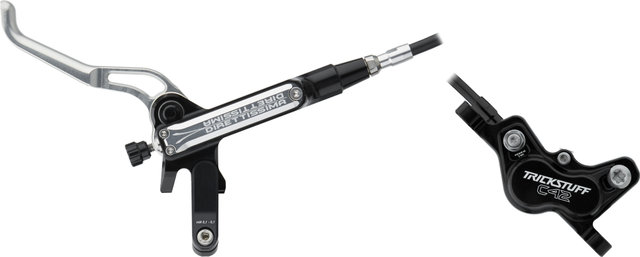

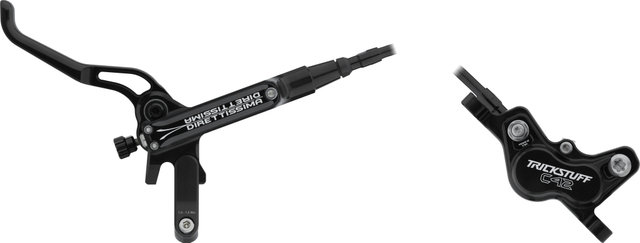

Trickstuff Direttissima Front+Rear Disc Brake Set

The Direttissima disc brake by Trickstuff for a direct braking experience

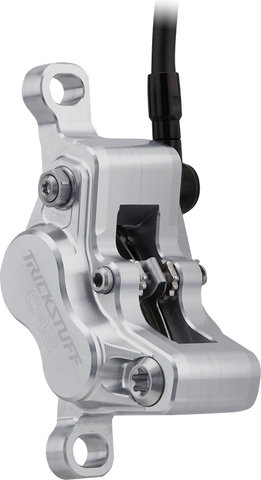

The Trickstuff Direttissima disc brake impresses with stability, defined pressure point and fine dosing. Four pistons on the C42 brake caliper provide plenty of braking power. For ergonomics, the lever width features a wide adjustment range. The brake does its job reliably even with heavier system weights, e.g. on e-bikes, and is characterised by excellent heat management. This results from the use of particularly temperature-stable Bionol, which incidentally does not cause any problems even down to -15 °C, stainless steel pistons and insulating POWER+ brake pads. The clear pressure point is created by the finely tuned gear ratio from the lever to the brake and supports intuitive operation. Trickstuff optimise the metering capability by consistently reducing friction in the system: practically frictionless roller bearings, PU seals at contact points, Kevlar-sheathed high-pressure hoses and a lever with 4x bearings make their contribution here. The Direttissima has a progressive braking force characteristic, which means that the harder you pull on the lever, the harder the brakes are applied. The feeling that you have to pull harder and harder on long descents to get the same braking power is a thing of the past. Speaking of the lever: it is designed in such a way that no surface structure irritates you when braking and your finger can slide along when you pull the lever closer. This way you don't have to turn your hand, but can keep a full grip on the handlebars. The two-piece milling clamp compensates for minimal deviations in handlebar circumference. The brake set consists of parts for both the front and rear wheel.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

Cross Country, All Mountain, Enduro

Type:

hydraulic, 4 pistons

Actuation:

mineral oil (Bionol)

Hose:

Beta high pressure hose, kevlar sheathed

Hose Length (Front/Rear):

900 mm / 1700 mm

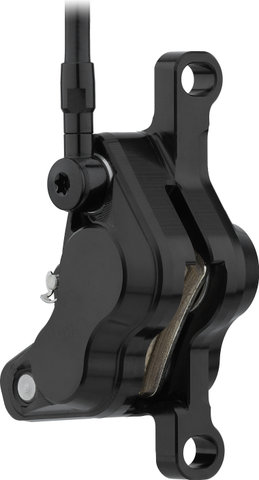

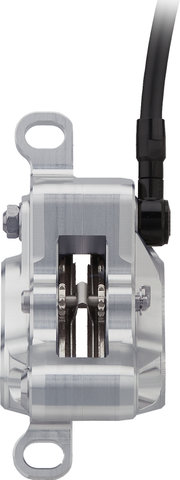

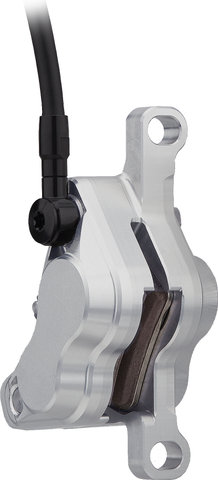

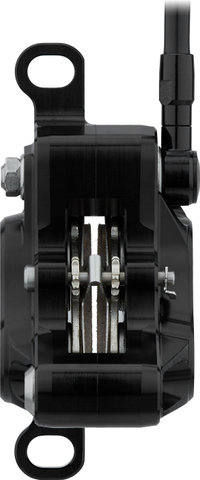

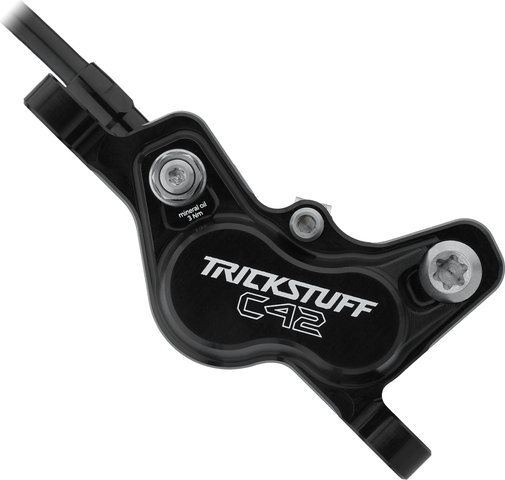

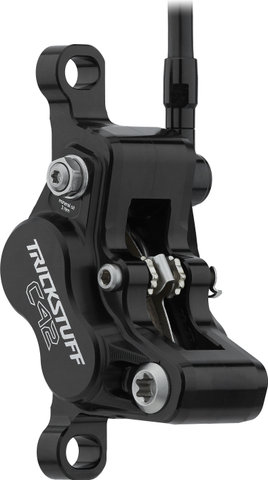

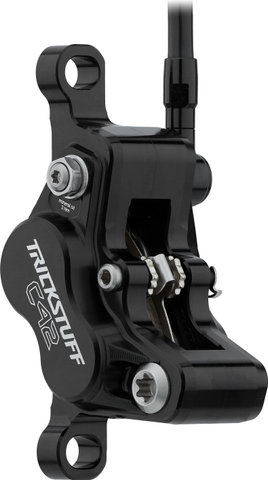

Technical Information - Caliper:

Caliper Mount:

post mount

Pads:

POWER+ organic

Calliper Material:

aluminium (7075-T6)

Piston Material:

stainless steel

Hose Connection:

banjo

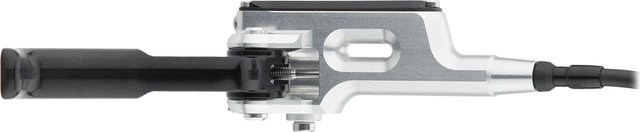

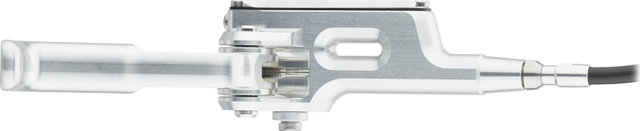

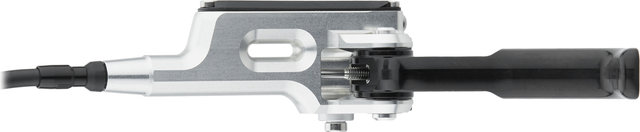

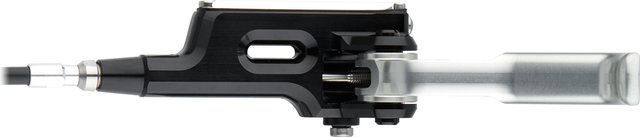

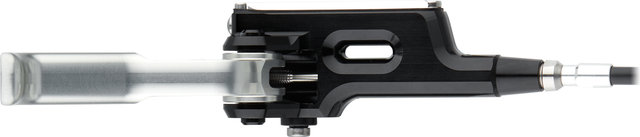

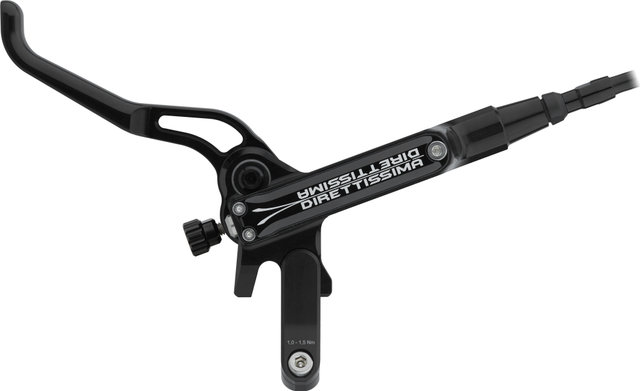

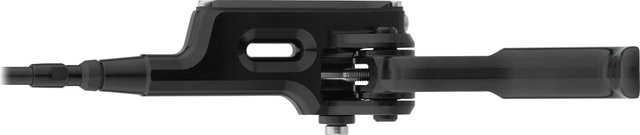

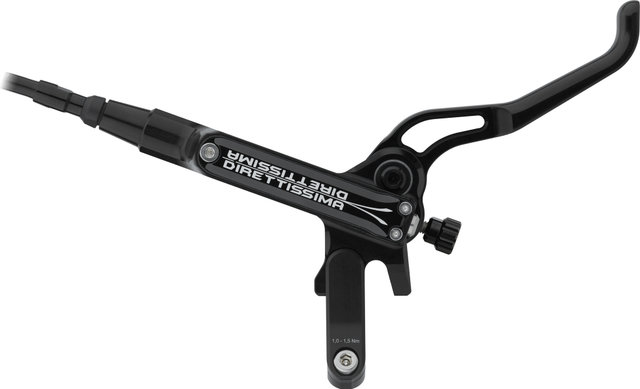

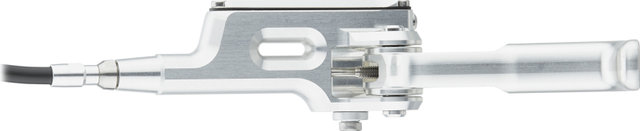

Technical Information - Lever:

Lever Length:

1-finger

Adjustment Options:

Reach Adjust

Mount:

clamp (split)

Design:

Flip-Flop (without specific side)

Brake Lever Material:

aluminium (7075-T6)

Brake Lever Housing Material:

aluminium (7075-T6)

Hose Connection:

straight

Compatibility:

• brake rotors up to 2.1 mm thick, recommended Dächle Discs

Features:

• powerful, precise four-piston brake for mountain bikes
• grip width can be adjusted without tools, large adjustment range from 47 - 88 mm lever width

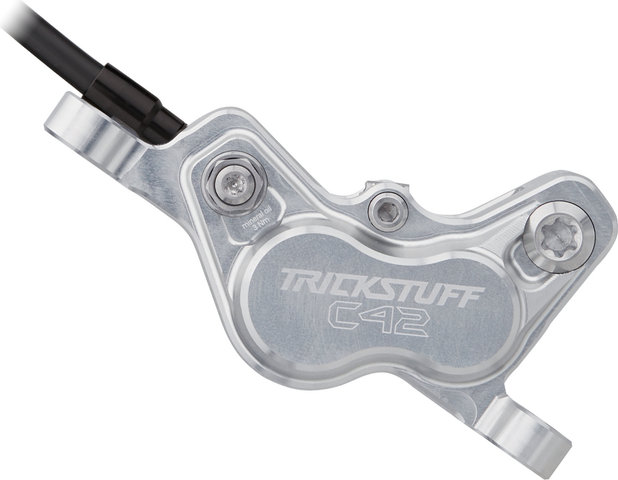

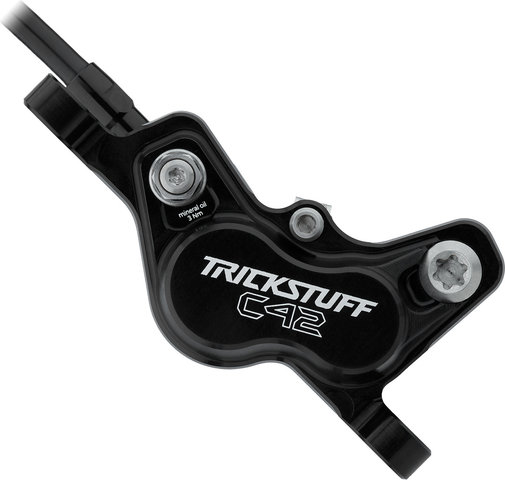

• stiff brake caliper C42
• lightweight: brake pump weighs only 98 g
• extremely low-wear
• smooth running thanks to lever and connecting rod bearings with four ball bearings
• intuitive operation thanks to defined pressure point and finely adjustable braking force
• made of CNC-milled 7075-T6 aircraft aluminium
• high heat resistance due to polished stainless steel pistons
• two-piece milling clamp protects the handlebars and prevents the brake lever from giving way
• strong and low-noise POWER+ pads with reduced risk of fading
• with temperature-stable, biodegradable bionol with an extremely high boiling point of 420 °C
• easy, fast and clean bleeding
• suitable for the increased requirements of e-bikes
• common brake pad shape for easy replacement
• with optionally available interfaces, direct mount for various SRAM or Shimano shift levers is possible
• made in Germany

Manufacturer Numbers:

black:

BDRTAFSKPQBSA0002S

black-silver:

BDRTAFLKPQBSA0002S

silver-black:

BDRTAFSKPQBLA0002S

silver-silver:

BDRTAFLKPQBLA0002S

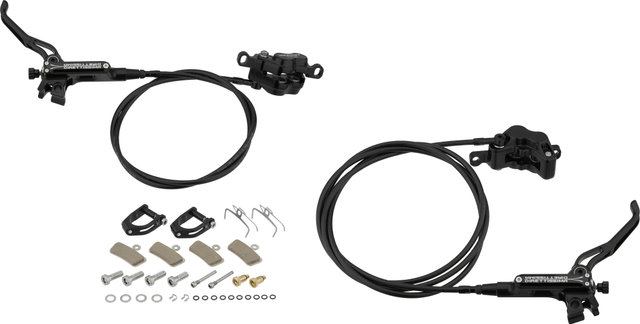

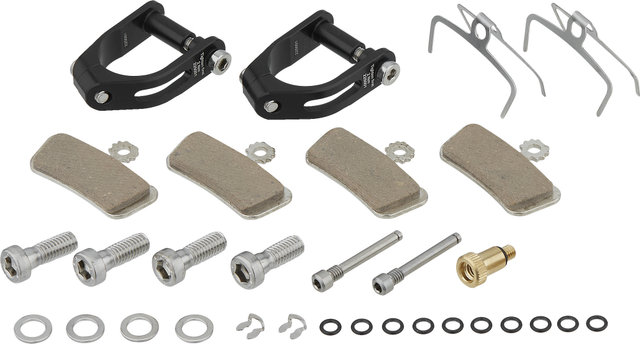

Contents:

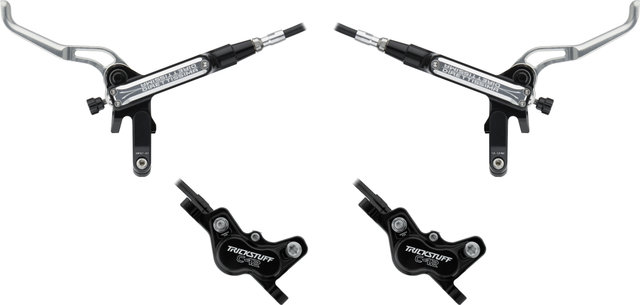

• 2 x Trickstuff Direttissima disc brakes, filled and bled, ready for installation (front and rear)
• 2 pairs of Trickstuff POWER+ brake pads
• 2 x brake pad springs
• 2 x pad retaining bolts
• 2 x snap ring
• 4 x brake caliper bolts
• 4 x washer
• 2 x Trickstuff handlebar clamps

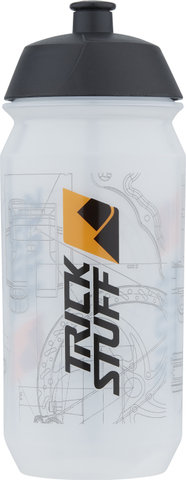

• 1 x Trickstuff drink bottle
• 1 x wooden box

Order Together:

Optional accessories:

• Interface for SRAM Shifter
