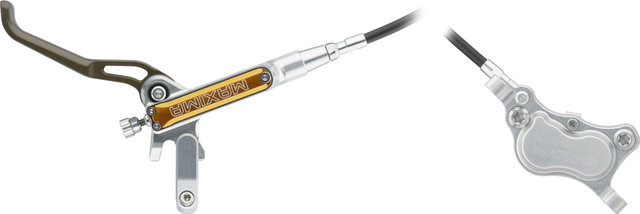

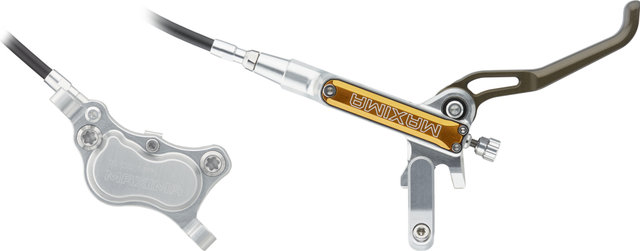

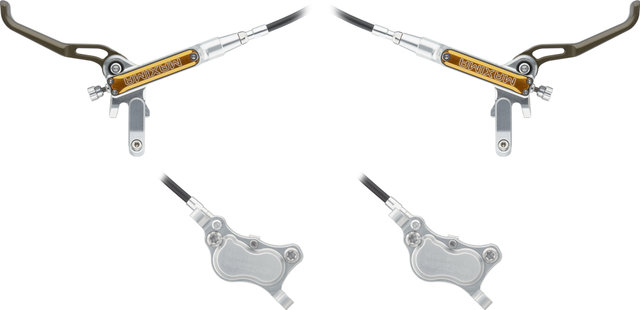

Trickstuff Maxima front+rear set disc brake with Beta high-pressure hose

Specifications:

Series:

Maxima

Application:

Cross Country, All Mountain, Enduro, Downhill

Type:

hydraulic, 4 pistons

Actuation:

mineral oil (Bionol)

Hose:

Beta high pressure hose, kevlar sheathed

Hose Length (Front/Rear):

900 mm / 1700 mm

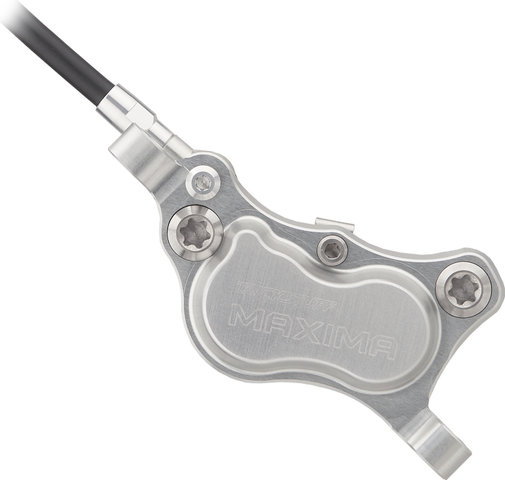

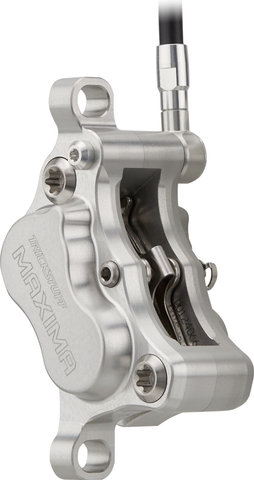

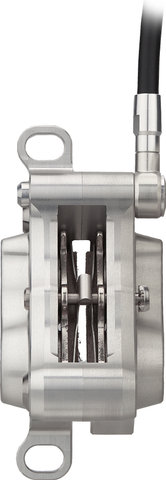

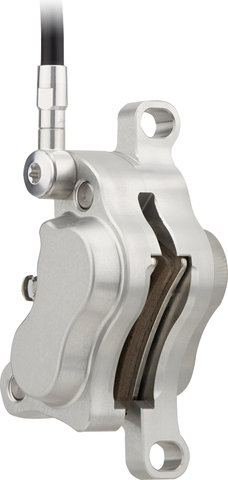

Technical Information – Caliper:

Caliper Mount:

post mount

Pads:

POWER+ organic

Caliper Material:

aluminium

Piston Material:

steel

Hose Connection:

banjo

Technical Information – Lever:

Lever Length:

2-Finger

Adjustment Options:

Reach Adjust

Mount:

clamp (split)

Design:

right / left (side-specific)

Brake Lever Material:

aluminium

Brake Lever Housing Material:

aluminium

Hose Connection:

straight

Features:

• Disc brake set with Kevlar-sheathed lines for mountain bikes
• Defined pressure point and progressive, finely modulable braking force
• Made of CNC-milled 7075-T6 aircraft aluminium
• 9 mm primary piston
• Four 16 mm and 17 mm large, heat-resistant hollow pistons made of stainless steel
• Strong and low-noise POWER+ pads with reduced risk of fading
• With temperature-stable, biodegradable Bionol with an extremely high boiling point of 420 °C
• Tool-free lever width adjustment

Manufacturer Number:

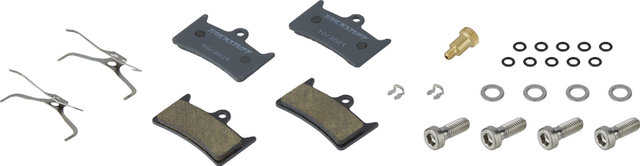

Contents:

• 2 x Trickstuff Maxima disc brakes, pre-filled and bled (front and rear)
• 2 pairs of Trickstuff POWER+ brake pads
• 2 x brake pad springs
• 2 x pad retaining bolts
• 2 x safety clips
• 4 x brake caliper bolts
• 4 x washers
• 2 x Trickstuff handlebar clamps
