UPLOCK Seatpost with Folding Lock
Item number: 92712
The UPLOCK seatpost with folding lock - practical combination for the city and on rides

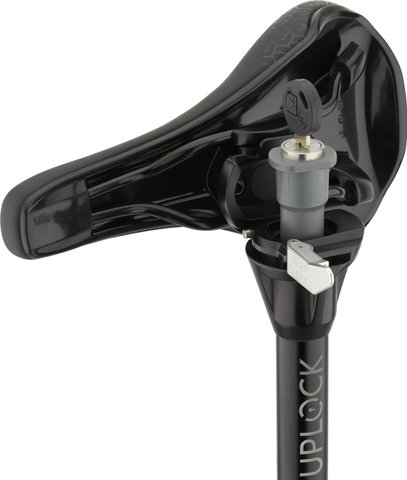

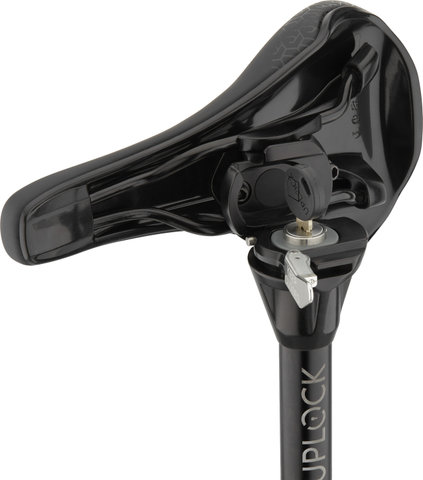

The UPLOCK set consists of a seatpost and a folding lock. This innovative concept utilises the hollow shaft of the seatpost to accommodate the bike lock. This means that the folding lock is concealed, rattle-free and weatherproof during the ride. If you want to lock your bike, tilt the head and saddle to the side and remove the folding lock. With its hardened steel bars, it offers a high level of protection against theft and is also suitable for locking high-quality bicycles in the urban jungle.
Specifications:
Seatpost:- Application:
- All Mountain, City, Gravel, City & Touring, Road
- Diameter:
- 27.2 mm, 30.9 mm, 31.6 mm
- Length:
- 450 mm
- Setback:
- 10 mm

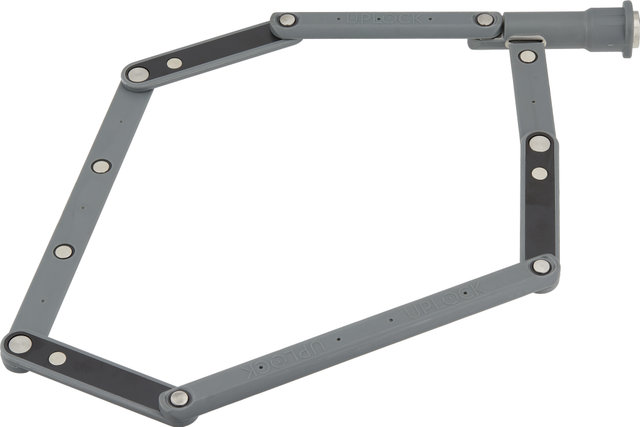

Folding lock:
- Design:
- folding lock
- Dimensions (Length x Bar Thickness):
- 93 cm x 0.5 cm
- Closure Type:
- key
Technical Information:
Seatpost:- Clamp:
- 2-bolt clamp
- Compatible Saddle Rails:
- 7 x 7 mm (standard), 7 x 9 mm (oval)
- Material:
- aluminium (7075-T6)
Folding lock:
- Length:
- 93 cm
- Bar Thickness:
- 0.5 cm
- Folded Size (Length x Height x Width):
- 44 cm x 3.4 cm x 2.2 cm
- Bar Material:
- steel
Approved For:
- Weight Limit:
- 120 kg total weight
- Insertion Depth (max.):
- 210 mm (27.2 mm), 260 mm (30.9 mm, 31.6 mm)
Features:
- seatpost with integrated storage space for the included folding lock
- sturdy seatpost made from 3D forged and hard-anodised aluminium

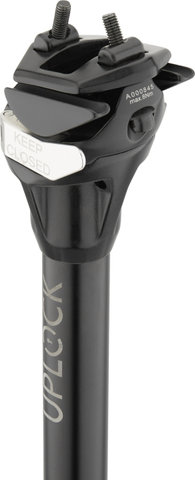

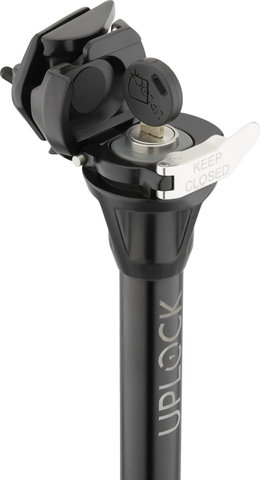

- tilting mechanism with automatic locking on the seatpost head
- rattle-free cavity design for low-noise storage of the lock
- seatpost compatible with round and oval saddle rails
- folding lock for use in situations with medium to high theft risk
- lock bars made of through-hardened special steel, 5 mm thick
- rivet connections also resist manipulation with nut splitters
- integrated magnets prevent the lock from unfolding and minimise rattling
Models:
27.2 mm / 450 mm / SB 10 mm:- Diameter:
- 27.2 mm
- Length:
- 450 mm
- Setback:
- 10 mm
- Insertion Depth (max.):
- 210 mm
- Manufacturer Number:
- 010272-BL-01-LO-01
30.9 mm / 450 mm / SB 10 mm:
- Diameter:
- 30.9 mm
- Length:
- 450 mm
- Setback:
- 10 mm
- Insertion Depth (max.):
- 260 mm
- Manufacturer Number:
- 010309-BL-01-LO-01
31.6 mm / 450 mm / SB 10 mm:
- Diameter:
- 31.6 mm
- Length:
- 450 mm
- Setback:
- 10 mm
- Insertion Depth (max.):
- 260 mm
- Manufacturer Number:
- 010316-BL-01-LO-01

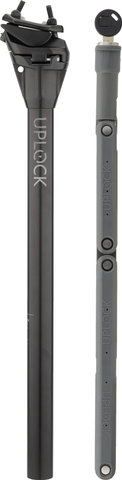

Contents:
- 1 x UPLOCK seatpost
- 1 x UPLOCK folding lock

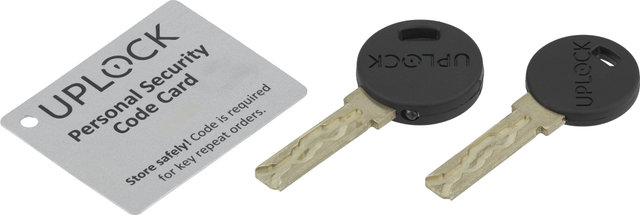

- 2 x keys
Weight:
- black/27.2 mm / 450 mm / SB 10: 1375 g
