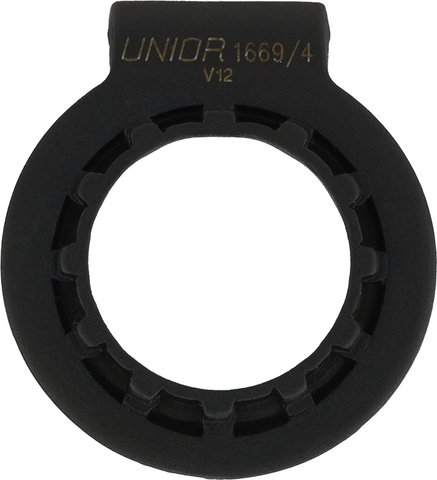

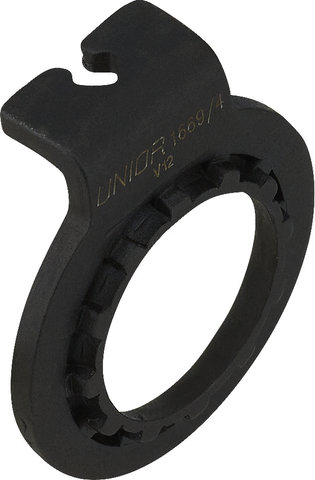

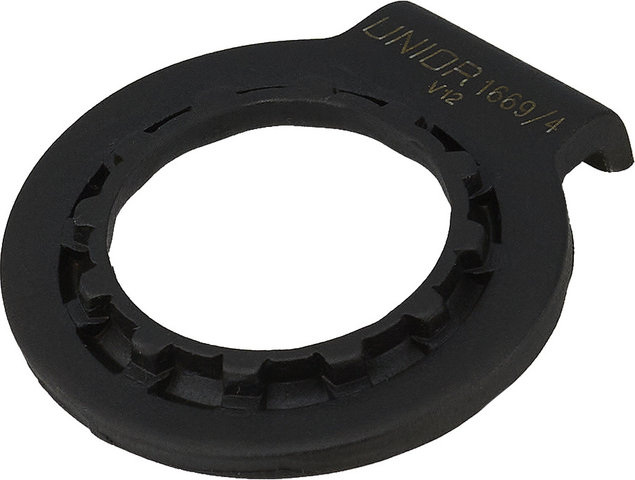

Unior Bike Tools 2-in-1 Pocket Spoke & Cassette Lockring Tool 1669/4

Unior Bike Tools 2-in-1 Cassette Lockring Tool with Spoke Wrench 1669/4 - Practical aid on bike trips

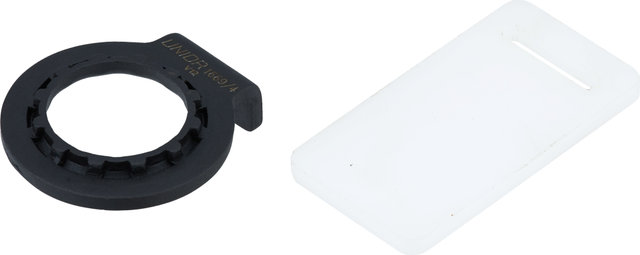

The Unior Bike Tools 2-in-1 tool 1669/4 combines a cassette lockring tool and a spoke wrench function. It is ideal for longer bike tours or bike trips where you want to take as few accessories as possible. The tool provides uncomplicated help when you need to quickly remove the cassette, e.g. to change a spoke on the right side of the rear wheel. It is inserted between the cassette lockring and the axle nut and ensures that the lockring releases when the pedal is pressed down. You tighten the lockring in the same way after re-mounting the cassette. A protective plastic plate to prevent scratches on the frame is included. The tool can also be used as a size 3.3 mm spoke wrench. It is made of premium carbon steel and has been burnished for higher durability.

Specifications:

Function:

Disassembly and assembly of cassettes, truing tool, wheel truing

Tool Type:

special tool

Size:

3.3 mm (spoke wrench)

Technical Information:

Material:

steel

Features:

• 2-in-1 tool for longer bike tours and bike trips when only a few tools can be brought along
• is fixed between the cassette lockring and axle nut, pressing down on the pedal releases the lockring
• speeds up disassembly and assembly of the cassette, e.g. in case of a spoke change on the right side
• made of Premium Flex Plus carbon steel
• with plastic frame protection plate
• can also be used as a 3.3 mm spoke wrench
• burnished

Application:

• Loosen and remove the axle nut of the rear wheel
• Place the tool on the lockring, with the curved side facing outwards
• Insert wheel into dropout, tighten axle nut, close quick-release skewer
• Turn the wheel anticlockwise, insert the protective plate between the tool and the derailleur hanger
• Press the pedal down: transmission of the torque (40 Nm) via the chain releases the lockring
• Remove wheel, remove tool and cassette
• To tighten the lockring, proceed in reverse: mount cassette, put tool on lockring
• Insert wheel into dropout, tighten axle nut, close quick-release skewer
• Insert the protective plate between the tool and the derailleur hanger
• Turn the wheel counterclockwise: lockring is then tightened

Manufacturer Number:

616758

Contents:

• 1 x Unior Bike Tools 1669/4 2-in-1 Cassette Lockring Tool w/ Spoke Wrench
