Unior Bike Tools Steerer Tube Cutting Guide 1604/2PLUS for 1" - 1.5"

Specifications:

Function:

Fork maintenance and repair

Tool Type:

special tool

Size:

1" / 1 1/8" / 1 1/4" / 1.5"

Technical Information:

Material:

steel

Features:

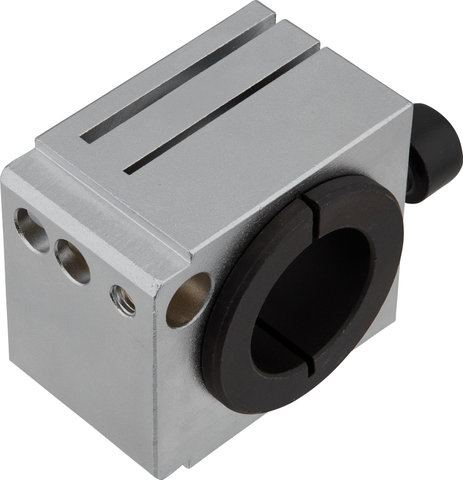

• cutting guide for shortening fork steerer tubes
• ensures a straight and precise cut
• made of Premium Flex Plus carbon steel
• compact and precision manufactured housing prevents scratches on the steerer tube
• inserts for four different steerer tube diameters

Application:

• Clamp the fork in the cutting guide, use the appropriate insert for the respective diameter
• Move the guide so that the opening is over the marked part on the tube and tighten the screw lightly
• Clamp cutting guide with fork in a vice
• Cut the steerer tube with a saw (e.g. metal saw 750B) through the opening in the guide

Manufacturer Number:

623417

Contents:

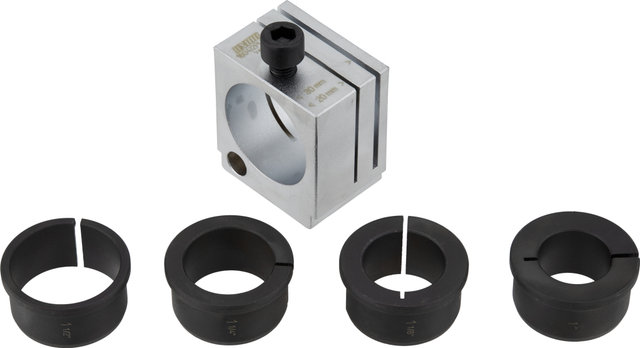

• 1 x Unior Bike Tools Steerer Tube Cutting Guide 1604/2PLUS
• 1 x guide insert 1"
• 1 x guide insert 1 1/8"
• 1 x guide insert 1 1/4"
• 1 x guide insert 1.5"

• universal: 918 g
