Weber Hitch B Conversion Kit

Safe stand for bicycles with trailer thanks to the conversion kit Hitch B by Weber

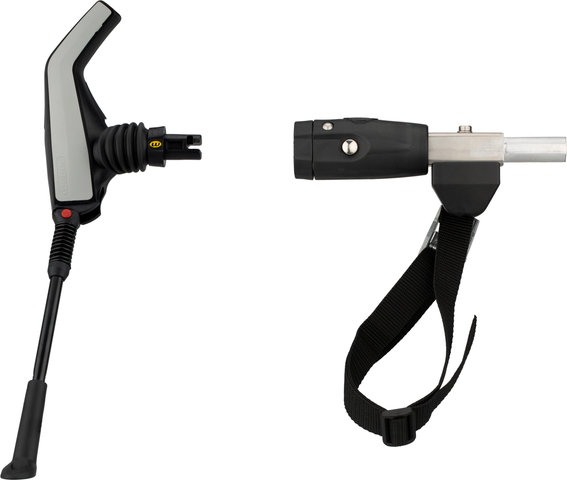

The conversion kit Hitch B by Weber comprises the hitch B with stand and a suitable tow bar connection with lock for your trailer.

Bicycles with trailers need a solid and stable stand, especially when loading or unloading. The Weber Hitch B was developed for this purpose.

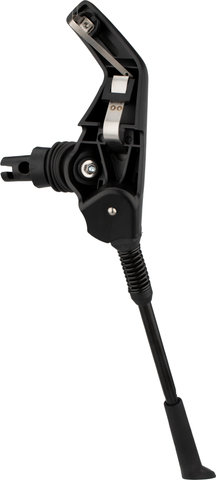

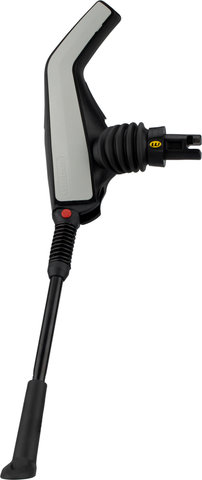

This hitch is the most commonly used rear hitch with integrated stand for bicycles with a wheel size of 26" and 28" . With secure tension strap mounting, it is the first choice for everyday use and touring.
The stable and steplessly adjustable stand has an extra wide base, gibing the bike a secure stand even on loose ground.

Are you unsure which Weber hitch is the right one for your bike? The Weber Hitch Finder helps you to make the right choice.

Specifications:

Mount:

on frame with two stainless steel straps

Compatibility:

The conversion kit is suitable for unbraked and braked bicycle trailers for transporting goods and children.
A tube diameter of 12 mm up to max. 25 mm is required for mounting the tensioning strap.

Note:
Because of the various shapes of bicycle dropout and shifter designs, hitches are not generally suitable for all bicycles. If you have a disc brake or other attachments near the dropout, compatibility must be checked before installation. If installation is not possible there due to the design of the frame, Hitch E can be used as an alternative. Longer quick-release axles or a replacement axle are also often necessary. Especially very sporty mountain bikes and modern hub gears require special polygons (these are special anti-twist washers for the bicycle hub).
Weber therefore recommends installation by a specialist dealer.

Cannot be used with:

• tube diameters less than 12 mm or more than 25 mm
• full suspension bikes
• to large or obstructed frames (connecting stays or brake calliper mounts)
• bicycles made of carbon or have a carbon rear triangle

Technical Information:

Total Weight of Trailer:

80 kg

Tongue Weight (max.):

6.5 kg

Stand Load Capacity:

25 kg

Features:

• bicycle hitch with integrated stand
• Weber bayonet lock
• stand with adjustable height
• fits many bikes with fixed rear triangle, for both 26" and 28" wheel sizes
• gentle tensioning strap mount on the frame
• only high-quality, rust-proof materials
• lightweight

Manufacturer Number:

KU.01.000.00

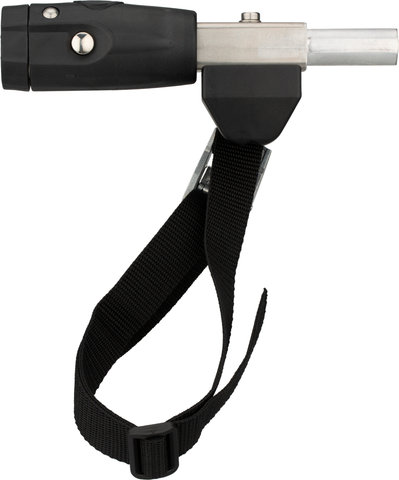

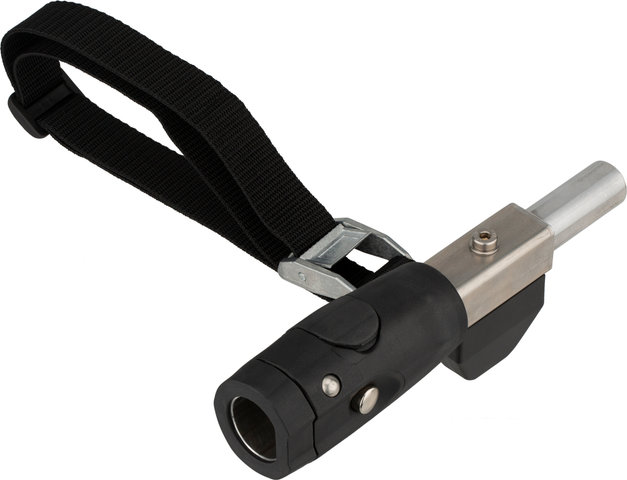

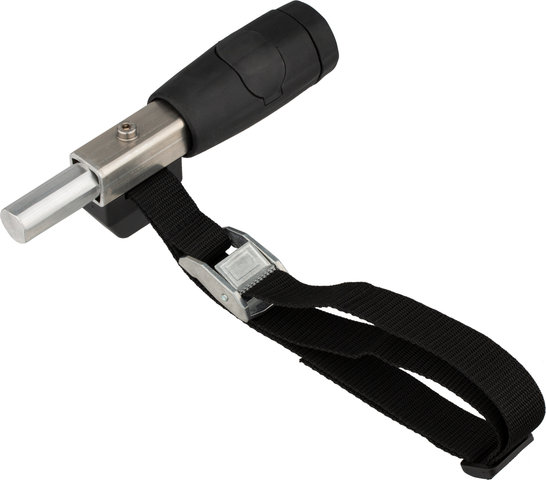

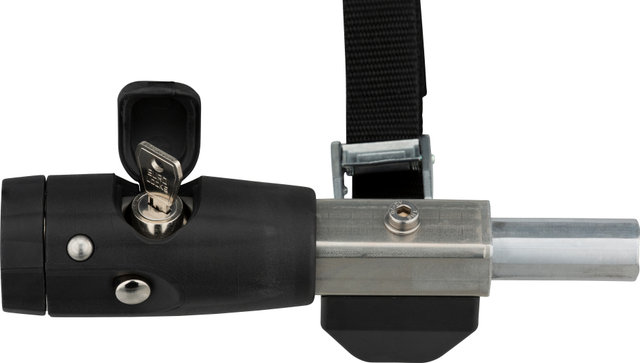

To connect a trailer to a Weber hitch, you need the matching tow bar connector. To do this, you must measure the outer diameter of the tow bar of your existing trailer. The inner diameter is only relevant for very thick tow bars. In our range of products, you will find different versions of tow bar connectors from which you can choose the one with the right diameter for your trailer. All models listed here are lockable.

Note:
Adjustments (e.g. shortening, drilling) to the tow bar or connector may be necessary for some trailer models. We therefore recommend that you contact our trained service team. Our workshop specialists are there to help you in word and deed and, if necessary, make the modifications for you.

Models:

22.2 mm:

• for round tubes with a 22.2 mm tow bar outer diameter
• Tow Bar Connector Manufacturer Number: DA.07.010.00

25.0 mm:

• for round tubes with a 25.0 mm tow bar outer diameter
• Tow Bar Connector Manufacturer Number: DA.07.020.00

25.4 mm:

• for round tubes with a 25.4 mm tow bar outer diameter
• Tow Bar Connector Manufacturer Number: DA.07.030.00

25.9 mm:

• for round tubes with a 25.9 mm tow bar outer diameter
• Tow Bar Connector Manufacturer Number: DA.07.070.00

27.5 mm:

• for round tubes with a 27.5 mm tow bar outer diameter
• Tow Bar Connector Manufacturer Number: DA.07.060.00

27.9 mm:

• for round tubes with a 27.9 mm tow bar outer diameter
• Tow Bar Connector Manufacturer Number: DA.07.080.00

28.6 mm:

• for round tubes with a 28.6 mm tow bar outer diameter
• Tow Bar Connector Manufacturer Number: DA.07.040.00

28.9 mm:

• for round tubes with a 28.9 mm tow bar outer diameter
• Tow Bar Connector Manufacturer Number: DA.07.050.00

27.8 mm:

• for round tubes with a tow barinner- Diameter: 27.8 mm
• Tow Bar Connector Manufacturer Number: DA.07.130.00

30.0 mm:

• for round tubes with a tow barinner- Diameter: 30.0 mm
• Tow Bar Connector Manufacturer Number: DA.07.120.00

23.5 mm:

• for square (pressed) tubes with 23.5 mm tow bar inner size
• Tow Bar Connector Manufacturer Number: DA.07.210.00

26.0 mm:

• for square (pressed) tubes with 26.0 mm tow bar inner size
• Tow Bar Connector Manufacturer Number: DA.07.250.00

Chariot 25.0 mm:

• for square tube with tow barouterdimension 25.0 mm
• fits the Thule " Chariot" models
• Tow Bar Connector Manufacturer Number: DA.07.220.00

Thule:

• for trapezoidal tow bar of Thule kids' trailers
• Tow Bar Connector Manufacturer Number: DA.07.270.00

Contents:

• 1 x Weber Hitch B with integrated stand
• 1 x joint piece
• 3 x stainless steel straps
• 2 x rubber nipples
• 1 x composite prism
• 2 x shim
• 1 x bolt for seatstay strap
• 1 x bolt for chainstay strap
• 1 x protective foil
• 1 x Weber tow bar connector w/ lock
• 2 x keys
• 1 x tow bar base
• 1 x strap
• 1 x bolt w/ self-locking nut
• 1 x notice sticker
