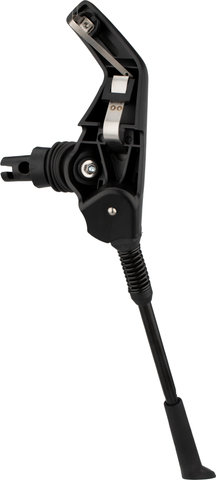

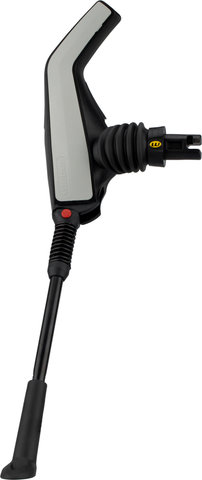

Weber Hitch B w/ Stand

The B Trailer Hitch with stand from Weber: Safe for bicycles hauling trailers

Bicycles with trailers need a solid and stable stand, especially when loading or unloading. The Weber Hitch B was developed for this purpose.
This hitch is the most commonly used rear hitch with integrated stand for bicycles with a wheel size of 26" and 28" . With secure tension strap mounting, it is the first choice for everyday use and touring.
The stable and steplessly adjustable stand has an extra wide base, gibing the bike a secure stand even on loose ground.

This trailer hitch is also available without an integrated stand as the BO trailer hitch .

Are you unsure which Weber hitch is the right one for your bike? The Weber Hitch Finder helps you to make the right choice.

Specifications:

Mount:

on frame with two stainless steel straps

Compatibility:

• suitable for bicycle trailers for cargo or children transport with or without brakes
• strap mount fits tube diameters from 12 mm up to 25 mm

Note:
If the bike has disc brakes or other attachments near the dropout, check compatibility beforehand. If installation is not possible there due to the design of the frame, Hitch E can be used as an alternative.

Cannot be used with:

• tube diameters less than 12 mm or more than 25 mm
• full suspension bikes
• to large or obstructed frames (connecting stays or brake calliper mounts)
• bicycles made of carbon or have a carbon rear triangle

Technical Information:

Total Weight of Trailer:

80 kg

Tongue Weight (max.):

6.5 kg

Stand Load Capacity:

25 kg

Features:

• bicycle hitch with integrated stand
• Weber bayonet lock
• stand with adjustable height
• fits many bikes with fixed rear triangle, for both 26" and 28" wheel sizes
• gentle tensioning strap mount on the frame
• only high-quality, rust-proof materials
• lightweight

Manufacturer Number:

KU.01.000.00

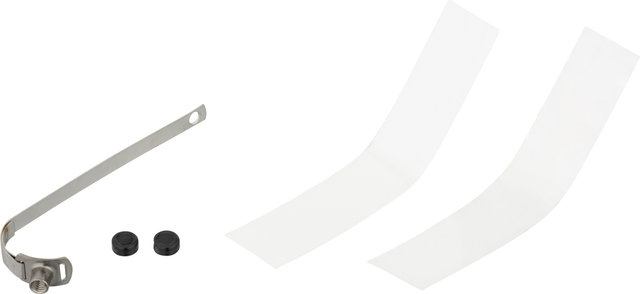

Contents:

• 1 x Weber Hitch B with integrated stand
• 1 x joint piece
• 3 x stainless steel straps
• 2 x rubber nipples
• 1 x composite prism
• 2 x shim
• 1 x bolt for seatstay strap
• 1 x bolt for chainstay strap
• 1 x protective foil
