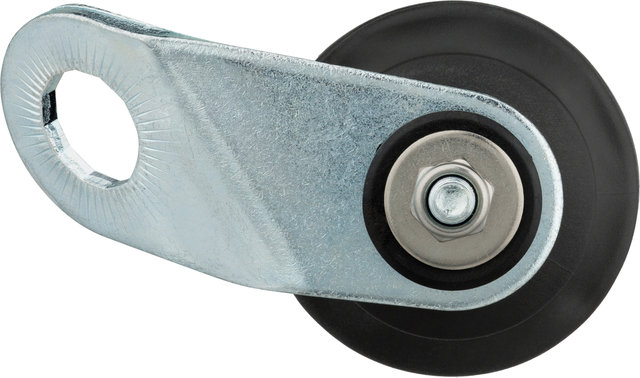

Weber Hitch E Conversion Kit

Safe connection and convenient operation with the Weber Hitch E conversion kit

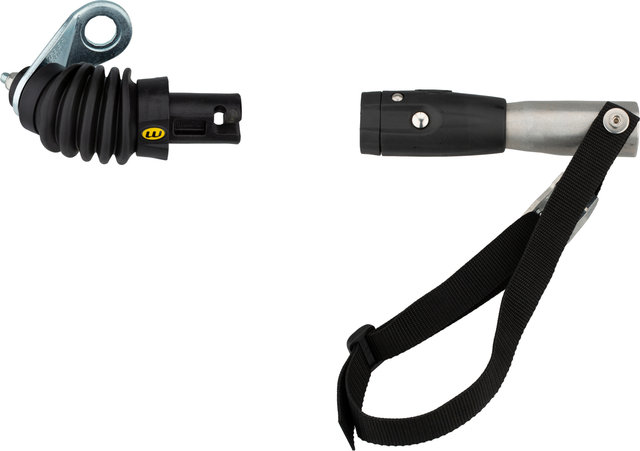

The The conversion kit Hitch E by Weber comprises the Hitch E and a suitable tow bar connection with lock for your trailer.

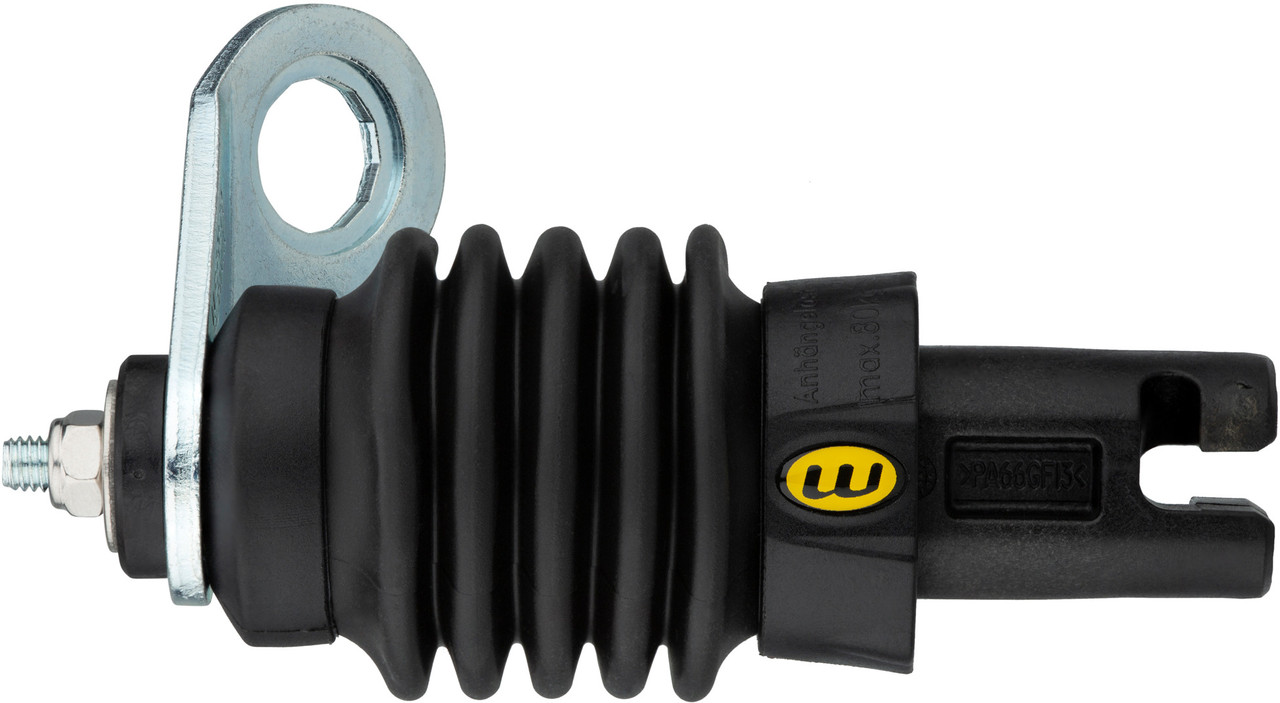

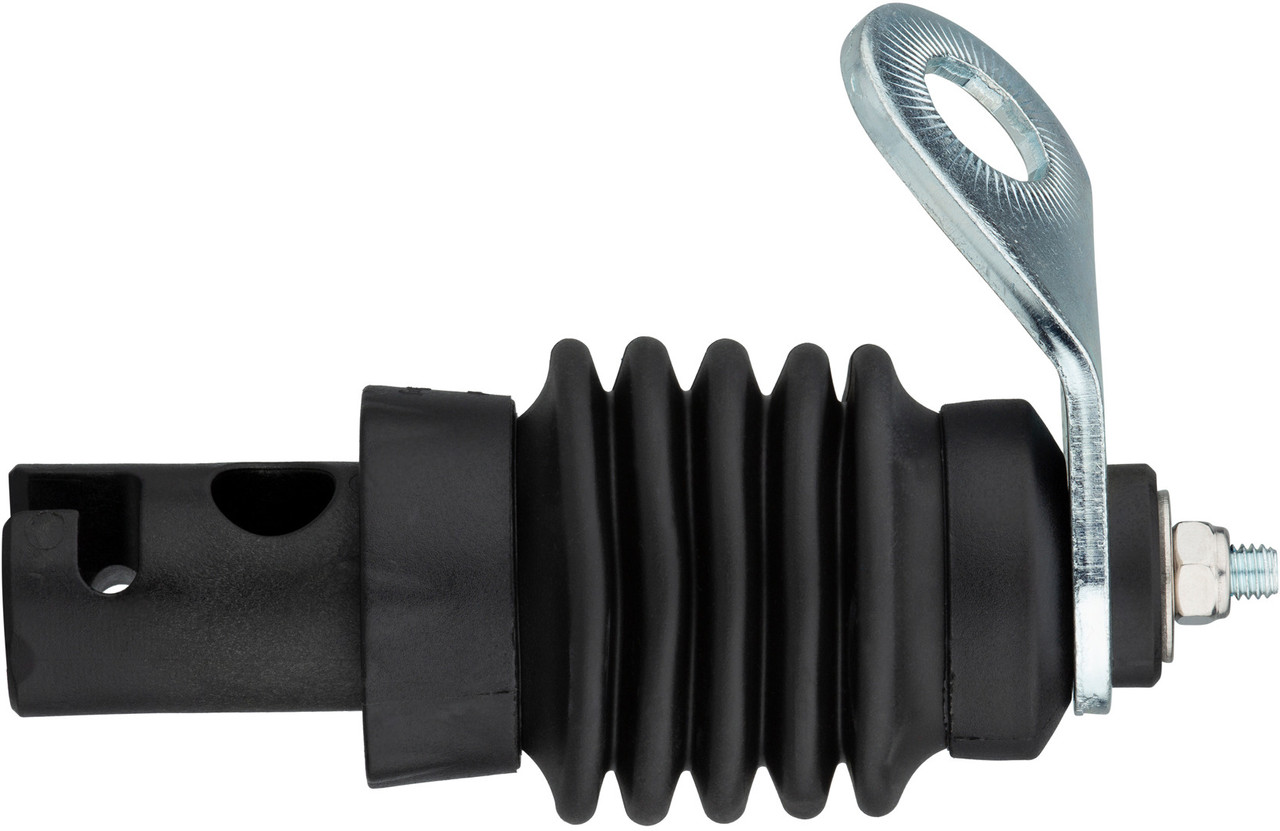

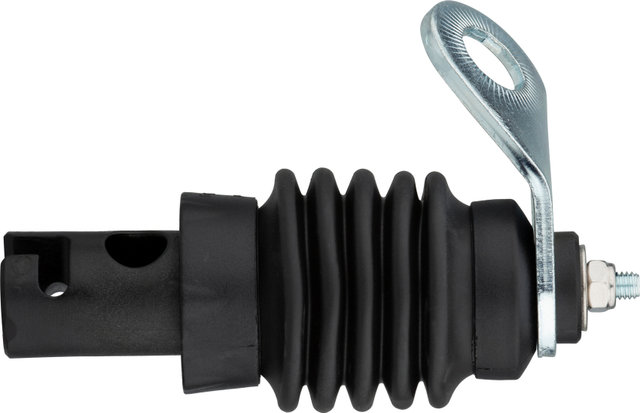

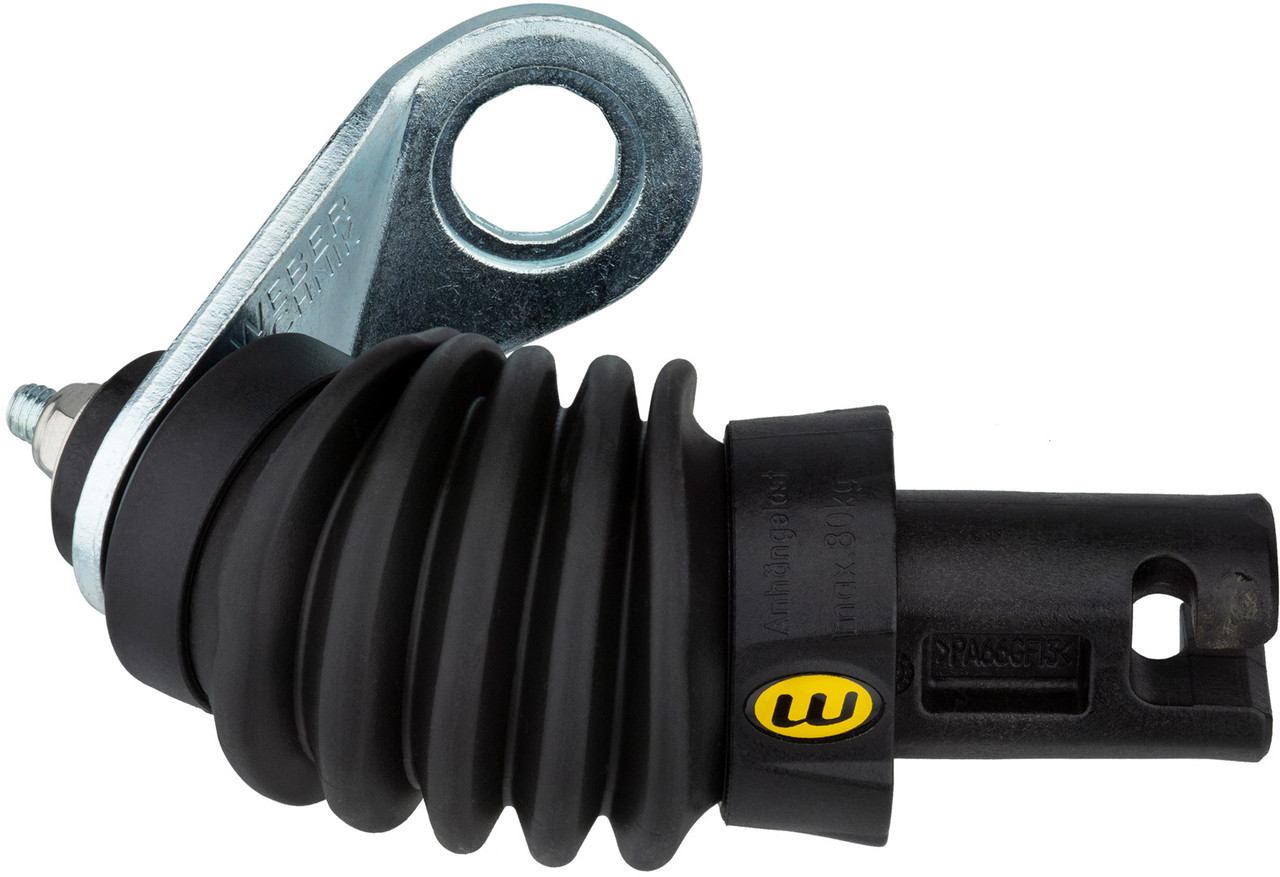

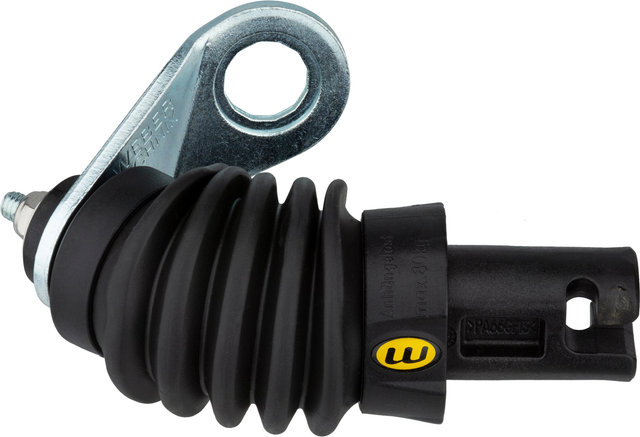

The Hitch E by Weber is one of the most popular bicycle hitches on the market. The reason for this, in addition to the safety that has been proven a thousand times over, is above all the unbeatable ease of use provided by the patented bayonet locking system.
With an internal rubber buffer, the Hitch E is universally usable and suitable for transporting loads and children.

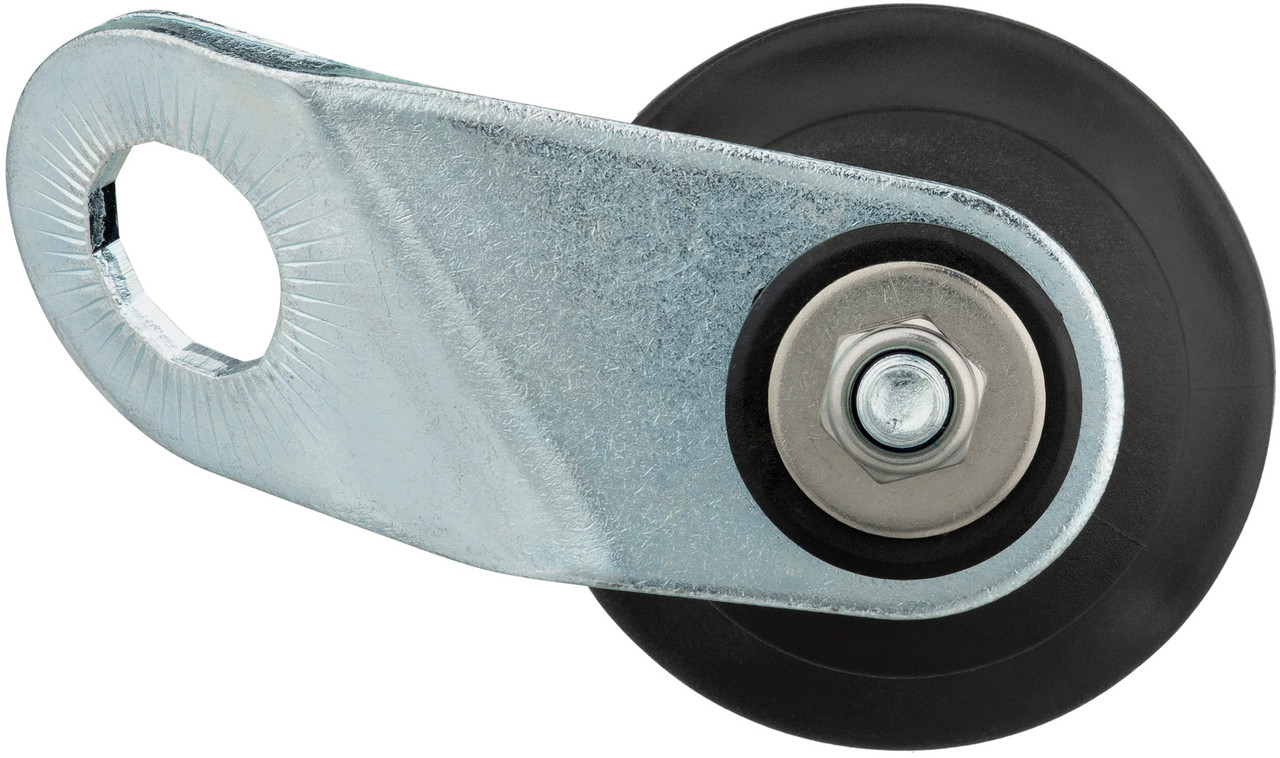

The Hitch E was developed with the aim of fitting to as many bikes as possible. The patented polygon mounting system ensures that it is mounted on the rear wheel axle in a way it cannot twist.

Are you unsure which Weber hitch is the right one for your bike? The Weber Hitch Finder helps you to make the right choice.

Note from the manufacturer:

For safety reasons, a safety harness with metal buckle must be fitted to the tow bar when using Hitch E, from model year 2017 onwards. You can order it here as an accessory .

Specifications:

Mount:

dropout

Compatibility:

• suitable for bicycle trailers for cargo or children transport with or without brakes
• compatible with many frame types

Cannot be used with:

• Rohloff internally geared hubs with solid axles; use the Hitch ER for this, as long as sliding Rohloff dropouts are used
• bicycles with short, vertical dropouts
• tricycles and other special bikes
• bicycles with open horizontal dropouts (e.g. almost all Gazelle models)
• bicycles made of carbon or have carbon dropouts / a carbon rear triangle

Technical Information:

Total Weight of Trailer:

80 kg

Tongue Weight (max.):

6.5 kg

Features:

• compatible with many frame types
• Weber bayonet lock
• for all bike sizes
• for threaded and quick-release axles
• for 12 mm thru-axles (original thru axle is replaced by Weber thru axle)
• mostly mountable without tools
• only high-quality, rust-proof materials
• lightweight

Manufacturer Number:

KU.02.000.00

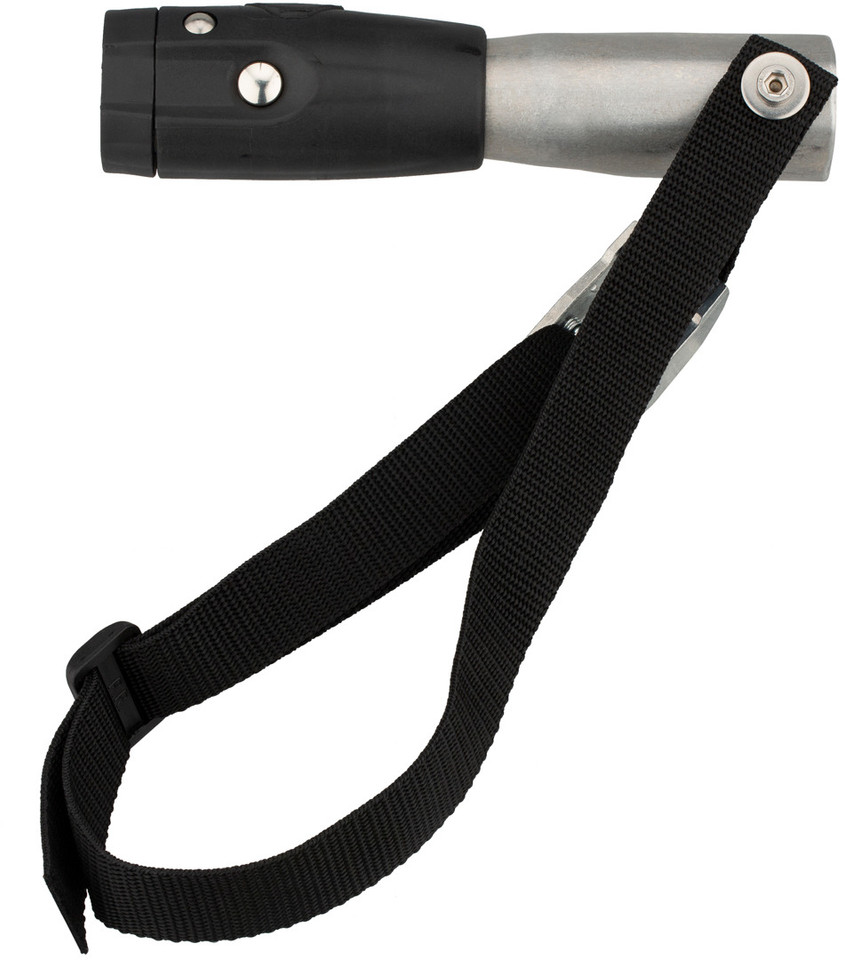

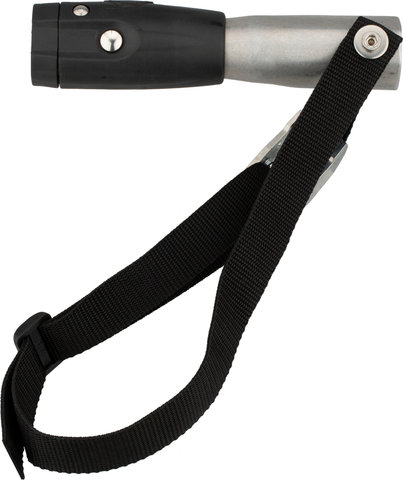

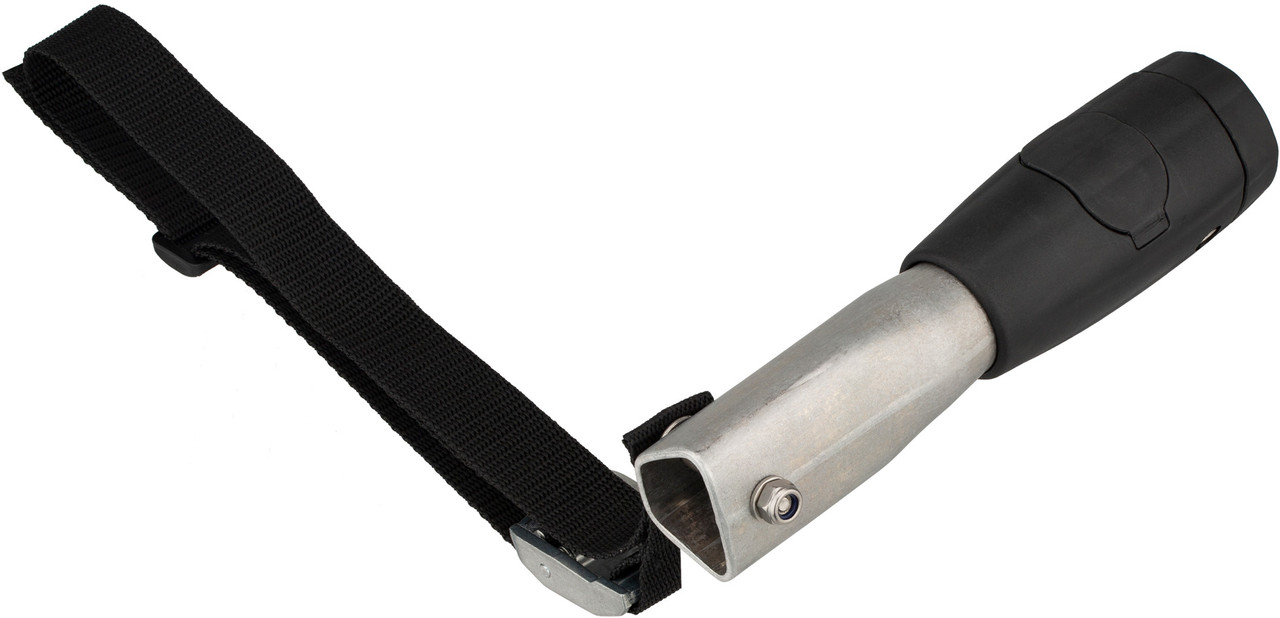

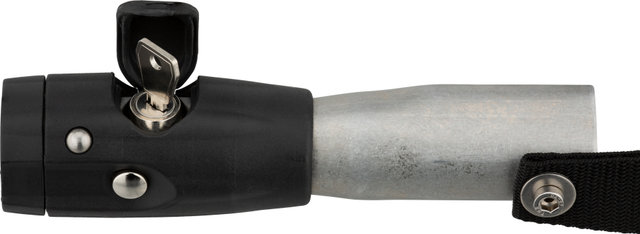

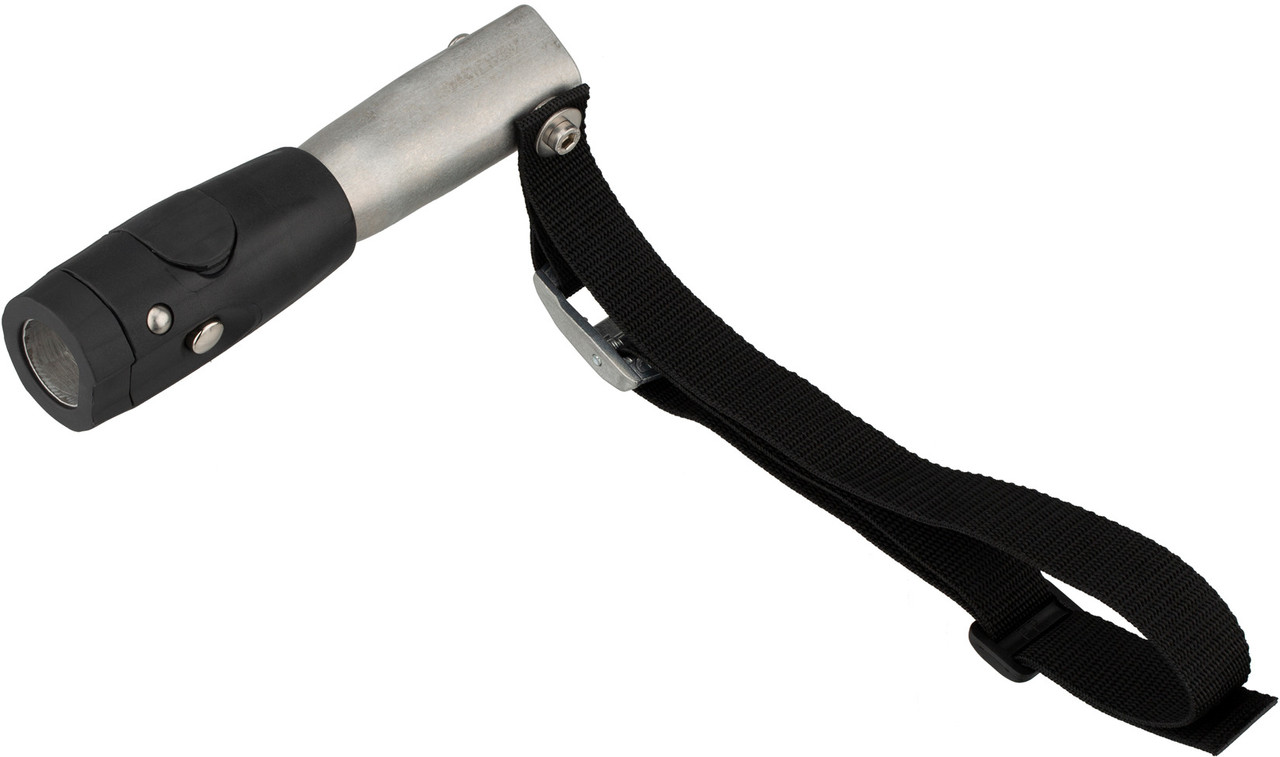

To connect a trailer to a Weber hitch, you need the matching tow bar connector. To do this, you must measure the outer diameter of the tow bar of your existing trailer. The inner diameter is only relevant for very thick tow bars. In our range of products, you will find different versions of tow bar connectors from which you can choose the one with the right diameter for your trailer. All models listed here are lockable.

Note:
Adjustments (e.g. shortening, drilling) to the tow bar or connector may be necessary for some trailer models. We therefore recommend that you contact our trained service team. Our workshop specialists are there to help you in word and deed and, if necessary, make the modifications for you.

Models:

22.2 mm:

• for round tubes with a 22.2 mm tow bar outer diameter
• Tow Bar Connector Manufacturer Number: DA.07.010.00

25.0 mm:

• for round tubes with a 25.0 mm tow bar outer diameter
• Tow Bar Connector Manufacturer Number: DA.07.020.00

25.4 mm:

• for round tubes with a 25.4 mm tow bar outer diameter
• Tow Bar Connector Manufacturer Number: DA.07.030.00

25.9 mm:

• for round tubes with a 25.9 mm tow bar outer diameter
• Tow Bar Connector Manufacturer Number: DA.07.070.00

27.5 mm:

• for round tubes with a 27.5 mm tow bar outer diameter
• Tow Bar Connector Manufacturer Number: DA.07.060.00

27.9 mm:

• for round tubes with a 27.9 mm tow bar outer diameter
• Tow Bar Connector Manufacturer Number: DA.07.080.00

28.6 mm:

• for round tubes with a 28.6 mm tow bar outer diameter
• Tow Bar Connector Manufacturer Number: DA.07.040.00

28.9 mm:

• for round tubes with a 28.9 mm tow bar outer diameter
• Tow Bar Connector Manufacturer Number: DA.07.050.00

27.8 mm:

• for round tubes with a tow barinner- Diameter: 27.8 mm
• Tow Bar Connector Manufacturer Number: DA.07.130.00

30.0 mm:

• for round tubes with a tow barinner- Diameter: 30.0 mm
• Tow Bar Connector Manufacturer Number: DA.07.120.00

23.5 mm:

• for square (pressed) tubes with 23.5 mm tow bar inner size
• Tow Bar Connector Manufacturer Number: DA.07.210.00

26.0 mm:

• for square (pressed) tubes with 26.0 mm tow bar inner size
• Tow Bar Connector Manufacturer Number: DA.07.250.00

Chariot 25.0 mm:

• for square tube with tow barouterdimension 25.0 mm
• fits the Thule " Chariot" models
• Tow Bar Connector Manufacturer Number: DA.07.220.00

Thule:

• for trapezoidal tow bar of Thule kids' trailers
• Tow Bar Connector Manufacturer Number: DA.07.270.00

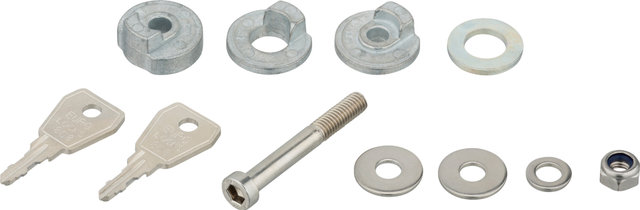

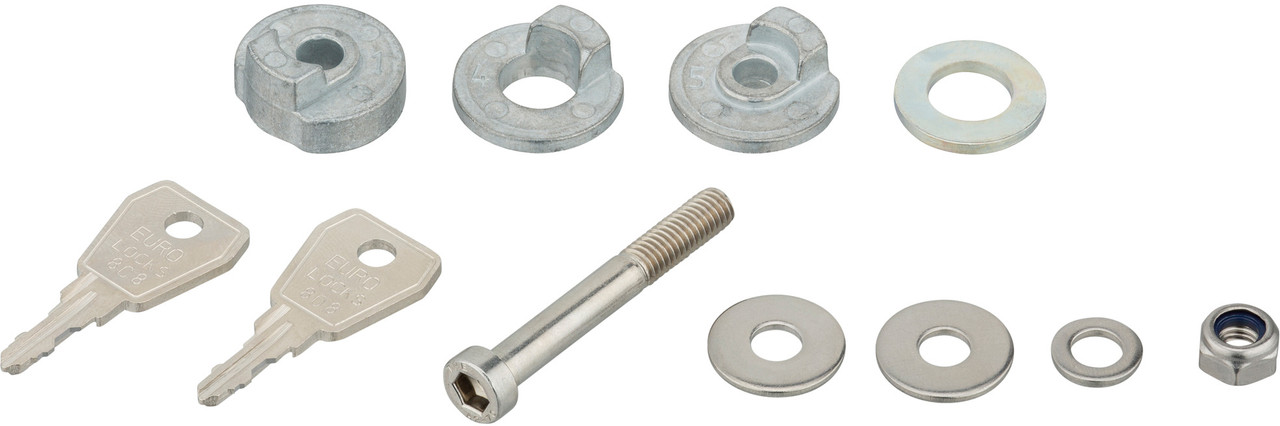

Contents:

• 1 x Weber Hitch E
• 1 x joint piece
• 1 x shim
• 1 x standard polygon insert for 2.5 mm quick releases
• 1 x standard polygon insert for 5.5 mm quick releases
• 1 x standard polygon insert for solid axles

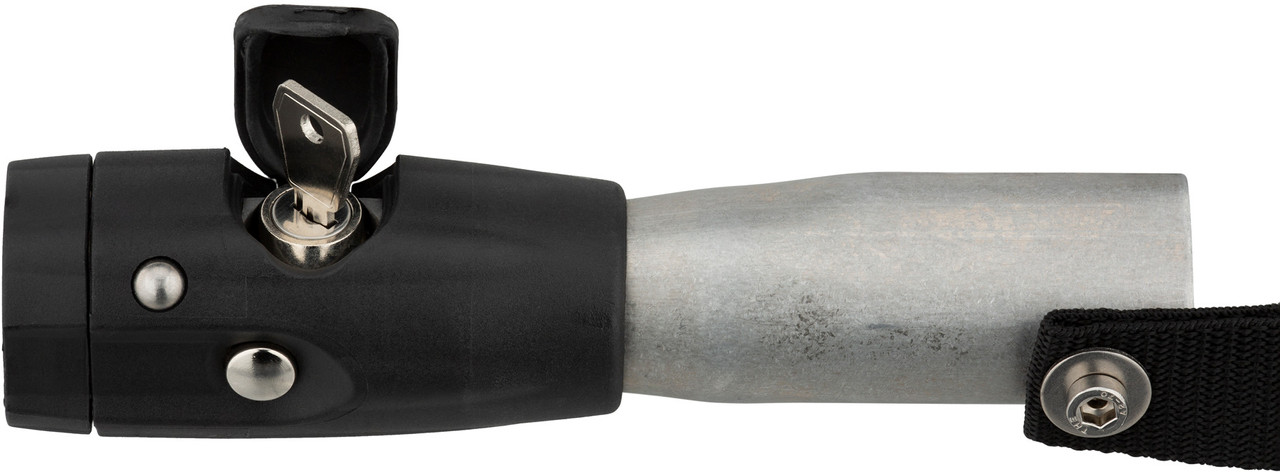

• 1 x Weber tow bar connector w/ lock
• 2 x keys
• 1 x tow bar base
• 1 x strap
• 1 x bolt w/ self-locking nut
• 1 x notice sticker
