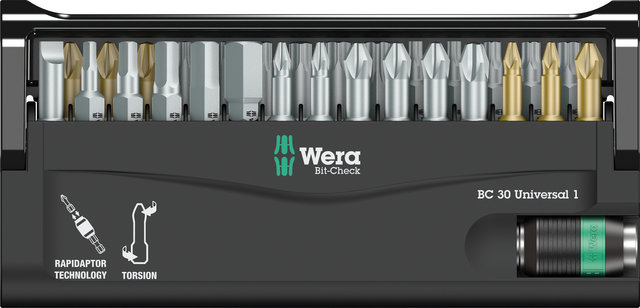

Wera Bit-Check BC Universal / 30

Bit-Check with universal equipment for all applications and Rapidaptor holder for guaranteed lightning-fast bit changes.

Specifications - Bits:

Application:

Phillips recess, Phillips Pozidriv, Torx, hex and flat-head screws

Drive:

1/4" hex, suitable for holders according to DIN 3126-D 6.3, ISO 1173

Type:

torsion shape against premature wear, tough, especially suited for hard screw joints e.g. in sheet or metal

Specifications - Rapidaptor:

Application:

Suitable for bits with 1/4" hex drive according to DIN 3126-C 6.3 and E 6.3 (ISO 1173) and Wera connection series 1 and 4

Drive:

1/4" hex, suitable for screwing machines with mount according to DIN 3126-F 6.3, ISO 1173

Type:

Rapidaptor technology with rapid-in, rapid-out, rapid-spin, chuck-all and single-hand function, with strong permanent magnet

Features:

• Bit removal is extremely convenient with the one-handed opening mechanism. By pressing the slide switch, the Bit-Check opens automatically, bits and holders can be easily removed.
• Composite materials guarantee high robustness and a long service life.
• The arrangement according to drive and size allows quick access to the bits. This makes work faster and easier.
• Torsion: With the torsion technique, torque peaks are cushioned in the torsion zone of the bit. This avoids premature wear and leads to a significantly increased service life of the tool.

Technology:

Rapidaptor: The compact functional wonder
Easy insertion and automatic locking of the bit.
Easy removal of the bit without additional tool. Even small dimensions can be changed without any problems. Free-running operating sleeve for guiding the machine screwdriver during screwing. Fits all ¼" bits according to DIN 3126 C 6.3 and E 6.3. One-handed operation.
The additional magnetic sleeve also holds long and heavy screws without any problems. Secure fit of the screw on the holder. No loss and time-consuming search for the screw. Also ideal for overhead work.

Manufacturer Number:

5056440001

Contents:

• 1 x Wera Rapidaptor universal mount 889/4/1 K
• 6 x Wera 851/1 TZ PH bits for Phillips recess screws (1 / 2 / 3 x 25 mm)
• 6 x Wera 855/1 TH PZ bits for Phillips Pozidriv screws ( 1 / 2 / 3 x 25 mm)
• 6 x Wera 867/1 TZ TORX® bits (TX10 / TX15 / TX20 / TX25 / TX30 / TX40 x 25 mm)
• 5 x Wera 867/1 Z TORX® BO bits (TX10 / TX15 / TX20 / TX25 / TX30 x 25 mm)
• 1 x Wera 800/1 TZ bit for flat-head screws (1.0 x 5.5 x 25 mm)
• 5 x Wera 840/1 Z Hex Plus bits for hex screws (3.0 / 4.0 / 5.0 / 6.0 / 8.0 x 25 mm)
