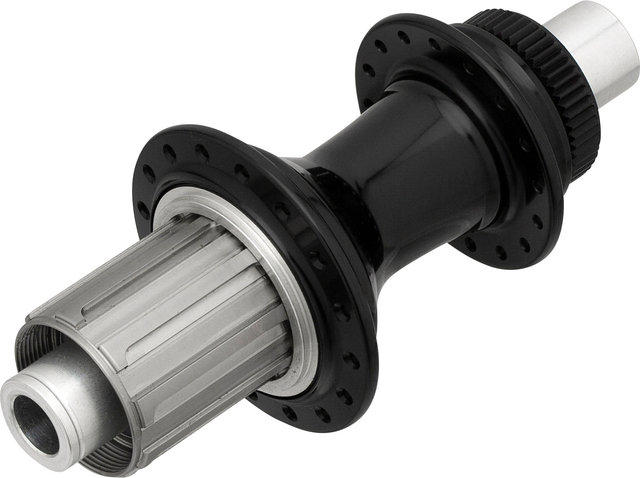

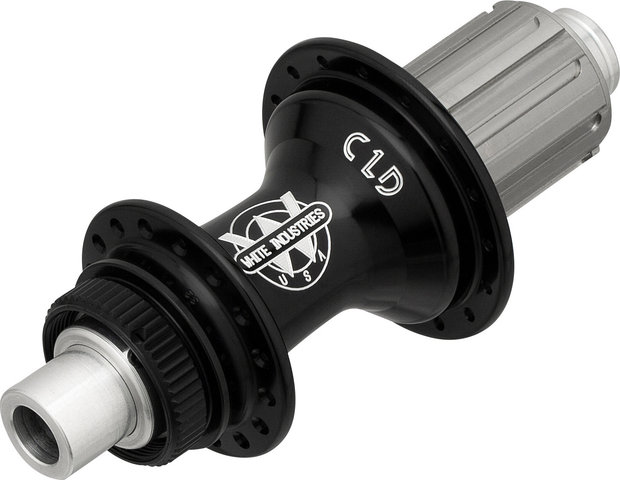

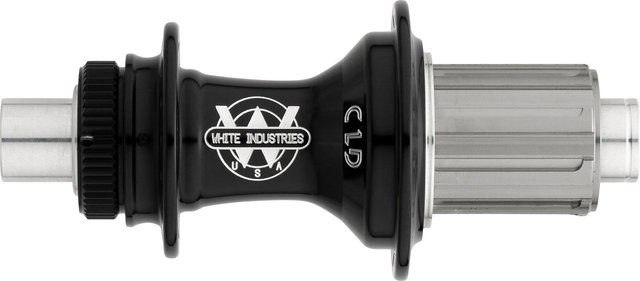

White Industries CLD Center Lock Disc Rear Hub

Thanks to the centre lock mount, the CLD hub from White Industries could be made particularly light without having to compromise on durability. This gives you the perfect centre lock disc hub for your next adventure on the road, in the mud and on the trail.

Specifications:

Series:

CLD

Application:

Road, Cyclocross, Gravel, Cross Country

Over Locknut Dimension:

10 x 135 mm quick release, 12 x 142 thru-axle

Spoke Hole Count:

32 hole

Brake Type:

Center Lock Disc

Freehub:

Shimano MTB

Note:

Assembly of 9-/10-speed cassettes on Shimano freehub bodies requires a spacer.

Gearing:

9-/10-/11-speed

Freehub Body Type:

titanium, 3 pawls w/ 48 teeth

Technical Information:

Body Material:

aluminium (6061)

Bearings:

3 x 6902-2RS, 1 x 3802W cartridge

Flange Distance (L/R):

52.5 mm (33 mm/19 mm)

Partial Bolt Circle Diameter (L/R):

45 mm/55 mm

Features:

• light and robust centre lock disc hub
• with 15 mm steel axle
• titanium freehub body for low weight and maximum durability
• designed and manufactured in Petaluma, California (USA)

Manufacturer Numbers:

black / 10x135mm / 32 hole / Shimano:

HUBCLD32RSBK

silver / 10x135mm / 32 hole / Shimano:

HUBCLD32RS

black / 12x142mm / 32 hole / Shimano:

HUBCLD32RSBK12

silver / 12x142mm / 32 hole / Shimano:

HUBCLD32RS12

Contents:

• 1 x White Industries CLD rear hub

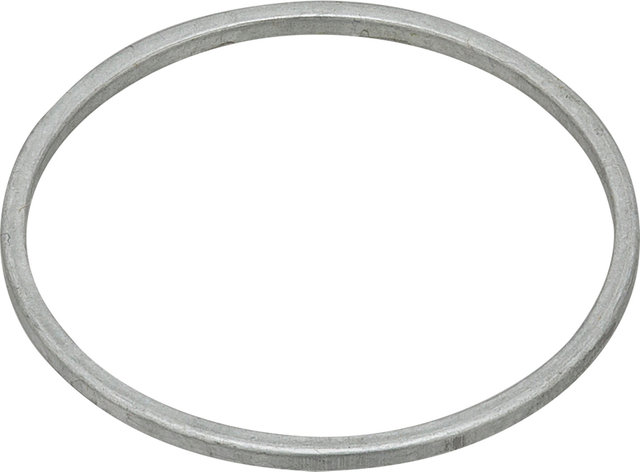

• incl. spacer
• not incl. quick release / thru-axle
