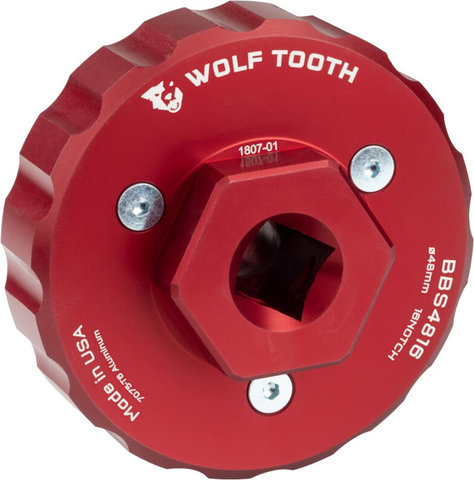

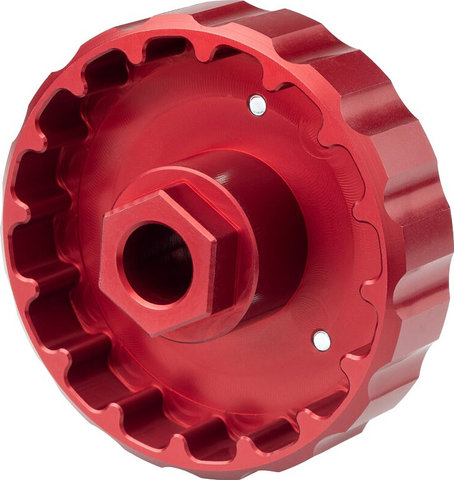

Wolf Tooth Components BBS4816 Bottom Bracket Tool

The Wolf Tooth Components BBS4816 bottom bracket tool - for FSA MegaEvo

The BBS4816 bottom bracket tool from Wolf Tooth Components is primarily compatible with FSA MegaEvo bottom brackets, but also with models from Wheels Manufacturing. It is important that the bearing cups have 16 teeth and an outer diameter of 48 mm. Accordingly, the tool has 16 notches for more grip when screwing on the cups by hand. It can be combined with a 3/8" square drive ratchet or a 1" torque wrench. Thanks to its magnetic steel inserts it also fits perfectly with the Pack Wrench. Like all Wolf Tooth bottom bracket tools, the BBS4816 is CNC machined to ensure particularly high quality. As a bonus, an 8-slot dust cap wrench is integrated, which can be used to loosen the crank bolt of Shimano cranks.

Specifications:

Function:

installation & removal of bottom brackets

Type:

special tool

Type:

multi-tooth

Drive Size:

3/8" square, 1" hex

Compatibility:

FSA 386 MegaEvo, Wheels MFG PF30, BSA30, BB386 (16 tooth, 48 mm outer diameter)

Technical Information:

Material:

aluminium (7075-T6), steel

Features:

• 16 large notches for the fingers
• magnetic steel inserts
• with pre-tensioning tool for Shimano cranks

Manufacturer Number:

BBS4816

Contents:

• 1 x Wolf Tooth Components BBS4816 bottom bracket tool
