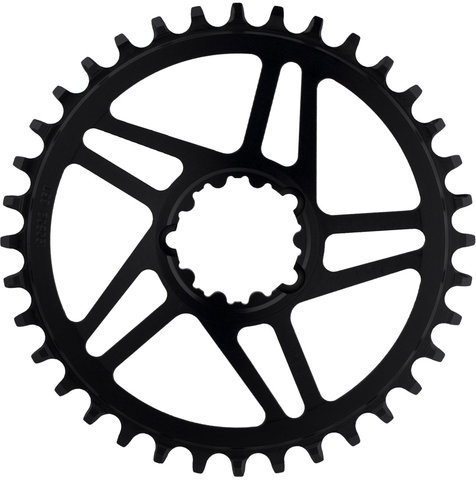

Wolf Tooth Components Direct Mount Chainring for SRAM GXP

Wolf Tooth Components SRAM chainrings can replace your spider and chainring with a single, light and strong chainring.

Specifications:

Application:

Cross Country, All Mountain

Mount:

SRAM Direct Mount

Teeth:

26 T, 28 T, 30 T, 32 T, 34 T, 36 T, 38 T

Gearing:

1x9-speed, 1x10-speed, 1x11-speed, 1x12-speed

Technical Information:

Offset:

6 mm

Chainline:

49 mm

Material:

aluminium (7075-T6)

Compatibility:

Crank:

• SRAM Direct Mount GXP cranks, DUB cranks and BB30 cranks with long axle (101.5 mm)

Chain:

• all 9-, 10- and 11-speed chains
• SRAM Eagle, KMC, Connex and Wippermann 12-speed chains
• 10-speed chain recommended for 9-speed drivetrains

Features:

• Wolf Tooth Wide-Narrow design
• standard chainline (6 mm offset) for 135/142 mm over locknut dimensions
• also suitable for fat bikes with 170/177 mm over locknut dimensions
• Made in the USA

Note from the manufacturer:

Please reuse the 3 original spider bolts to directly mount the chainring or buy Wolf Tooth spare bolts (installing/removing is best done with T25 L-key). Damped rear derailleur recommended.

Technology:

Drop-Stop® A
Wolf Tooth has invested countless hours in the design, prototyping and testing of their Wide-Narrow chainrings and has developed a highly innovative tooth profile. Test riders around the world have confirmed that this design brings unparalleled performance.
The right side of the chainring tooth has a different shape than the left side. The right side transmits the power to the chain and the left side opens a free space for cleaning mud and dirt. Since the two sides have completely different functions, it makes sense to design them differently, true to the motto: extra reinforcement where you need it, less material where you don't.
The right side of the Drop-Stop tooth is as wide as possible to distribute the load over a larger area, which also minimises wear. The left side of the Drop-Stop tooth helps to guide the chain, but it does not transmit any load. Therefore the left side is narrower than the chain roller. Wear is not an issue on this side, so Wolf Tooth was able to save material and create a better mud clearance channel. More free space means less friction and less change of the chain being dropped due to mud.
In the A version, the original version of Drop-Stop, the profile is optimized for use on mountain bikes. The wide teeth are slightly wider than Drop-Stop B. The outer sides of the narrow and wide teeth guide the chain.

Manufacturer Numbers:

26 tooth:

ASM5SDM26

28 tooth:

ASM5SDM28

30 tooth:

ASM5SDM30

32 tooth:

ASM5SDM32

34 tooth:

ASM5SDM34

36 tooth:

ASM5SDM36

38 tooth:

SDM38

40 tooth:

SDM40 sold-out

42 tooth:

SDM42 sold-out

Contents:

• 1 x Wolf Tooth Components Direct Mount SRAM GXP chainring
