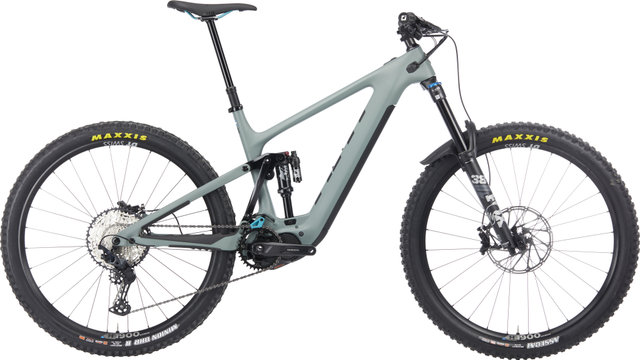

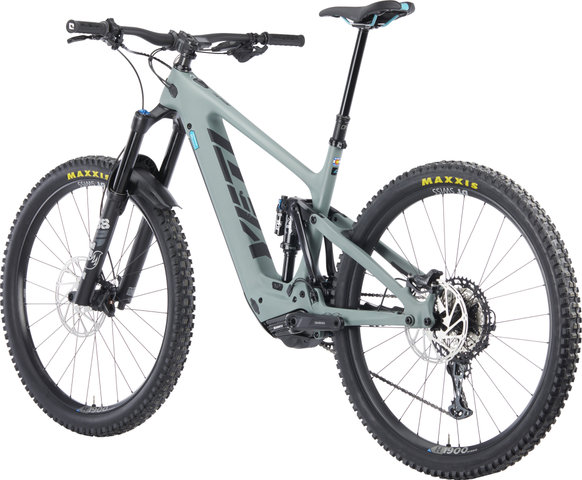

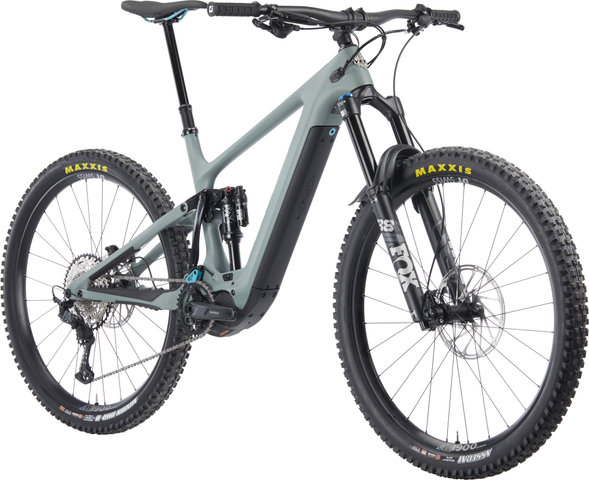

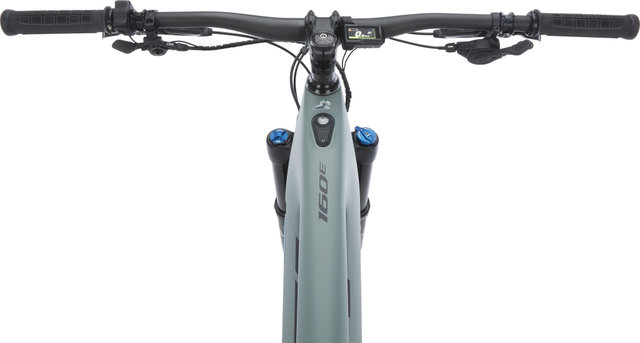

Yeti Cycles 160E C1 C/Series Carbon 29" E-Mountain Bike

The Yeti Cycles 160E C1 29" E-Mountain Bike made of carbon for enduro trails

The carbon 160E C1 is an e-mountain bike with 160 mm rear travel from Yeti Cycles with Shimano SLX equipment. Its newly-developed Sixfinity linkage design and high efficiency impress on Enduro race tracks.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here. For information regarding the return of used e-bike batteries, please contact our customer service.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

Enduro

Wheel Size:

29"

Front Travel:

170 mm

Rear Travel:

160 mm

Sizes:

M, L, XL

Front Triangle Material:

Carbon (C/Series)

Rear Triangle Material:

Carbon (C/Series)

E-Motor:

Type:

mid-drive motor

Motor Type:

Shimano EP8

Pedal Assist (max.):

25 km/h

Power:

250 W

Battery Type:

Shimano internal

Capacity:

630 Wh

Display:

Shimano EM800

Components:

Frame:

Yeti Cycles 160E

Fork:

Fox Racing Shox 38 Performance E-Tune

Stem:

Race Face

Handlebars:

Yeti Cycles E-Bike Carbon, 35 mm clamp, 800 mm length

Grips:

ODI Elite Pro

Rear Shock:

Fox Racing Shox Float X Performance

Remote System:

none

Headset:

Cane Creek 40 integrated

Seatpost:

OneUp Components 31,6 mm, 210 mm (M), 240 mm (L, XL)

Saddle:

WTB Silverado Custom

Crank:

Shimano EM600, 160.0 mm

Pedals:

none

Brakes:

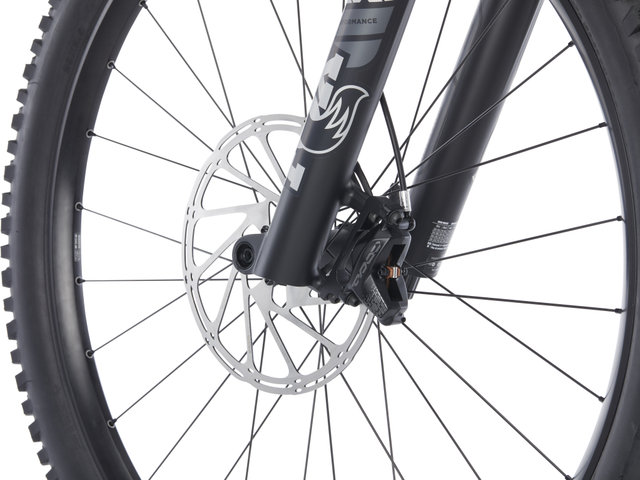

SRAM Code R, with SRAM Centerline brake rotors 220 mm/200 mm

Shift Lever:

Shimano SLX, 12-speed

Rear Derailleur:

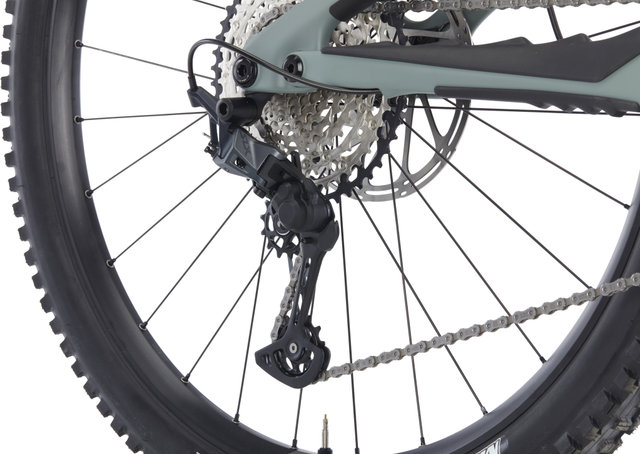

Shimano SLX, 12-speed

Cassette:

Shimano SLX, 12-speed, 10-51 T

Chain:

Shimano SLX, 12-speed

Rims:

DT Swiss H1900, 30 mm

Spokes:

DT Swiss

Front Hub:

DT Swiss

Rear Hub:

DT Swiss

Front Tyre:

Maxxis Assegai EXO+, 29 x 2.5"

Rear Tyre:

Maxxis Minion DHR II DD, 29 x 2,4"

Approved For:

Rotor Size (max.):

220 mm (rear)

Tyre Size (max.):

29 x 2.6"

Chainrings:

1x

Chainring Size (max.):

1x 34-tooth

Features:

• enduro e-fully made of carbon with Shimano SLX components and a Fox chassis
• Sixfinity suspension newly developed for e-drivetrains
• adjustment of the progressivity of the transmission ratio is possible
• little anti-squat deviation in SAG across the entire cassette for pedalling efficiency in every gear
• semi-integrated battery needs approx. 5 hours charging time
• possible Bluetooth connection to Shimano E-Tube-Apps
• strong, stiff C/Series carbon

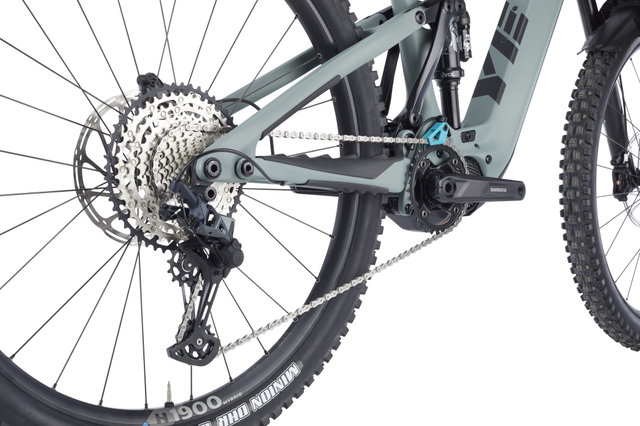

• short chainstays for traction and agile rear end at high speed
• higher bottom bracket and shorter crank than the SB150 for more pedalling freedom
• Fox Float X2 Performance rear shock with custom tune and sensitive response

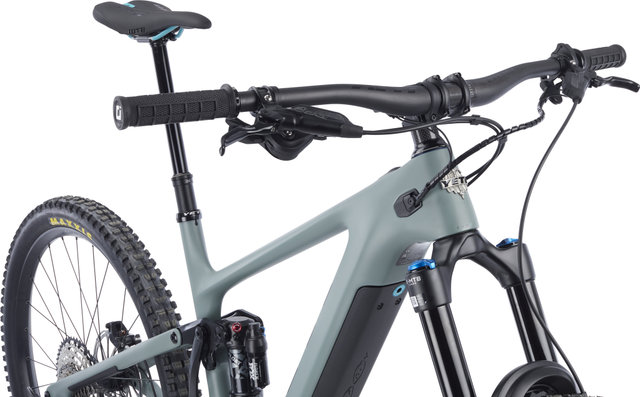

• clever, completely internally routed cable routing and management on the cockpit, without cable hammering at entry and exit openings
• straight, continuous seat tube enables the use of Vario seatposts with a lot of travel
• optimised chainstay protection against noise caused by chain slap

Technology:

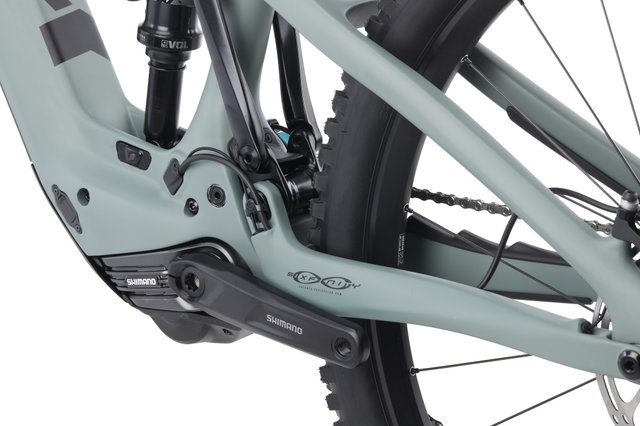

Sixfinity
The Sixfinity linkage design was developed specifically for the requirements of e-mountain bikes. At the beginning of the travel, the Switch Link shifts upwards, then as the travel increases, it lowers again from a specific turning point. This creates an anti-squat curve that allows efficient pedalling in any gear, unlike non-motorised bikes where anti-squat has a higher relevance in smaller gears. The Sixfinity construction also allows for three ratio of progression settings without affecting geometry, anti-squat or anti-rise, and with minimal change in travel. So you have the choice between a rather calm, balanced or poppy character.

Geometry:

M:

Recommended Height:

165 - 180 cm

Stack:

620.0 mm

Reach:

460.0 mm

Seat Tube Length:

410.0 mm

Effective Top Tube Length:

591.8 mm

Head Tube Length:

98.3 mm

Chainstay Length:

446.0 mm

Wheelbase:

1239.7 mm

Bottom Bracket Height:

350.0 mm

Seat Tube Angle:

78.0°

Head Tube Angle:

64.5°

Standover Height:

754.0 mm

L:

Recommended Height:

178 - 191 cm

Stack:

625.0 mm

Reach:

480.0 mm

Seat Tube Length:

450.0 mm

Effective Top Tube Length:

613.4 mm

Head Tube Length:

103.8 mm

Chainstay Length:

446.0 mm

Wheelbase:

1262.1 mm

Bottom Bracket Height:

350.0 mm

Seat Tube Angle:

78.0°

Head Tube Angle:

64.5°

Standover Height:

754.0 mm

XL:

Recommended Height:

185 - 201 cm

Stack:

635.0 mm

Reach:

505.0 mm

Seat Tube Length:

495.0 mm

Effective Top Tube Length:

641.5 mm

Head Tube Length:

114.9 mm

Chainstay Length:

446.0 mm

Wheelbase:

1291.9 mm

Bottom Bracket Height:

350.0 mm

Seat Tube Angle:

78.0°

Head Tube Angle:

64.5°

Standover Height:

754.0 mm

Manufacturer Numbers:

rhino / M:

YCB22160EMDPRIPXC018700

rhino / L:

YCB22160ELGPRIPXC018700

rhino / XL:

YCB22160EXLPRIPXC018700

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.

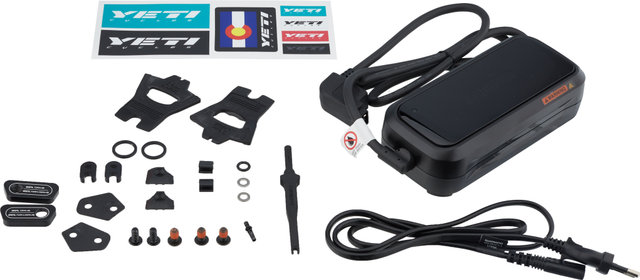

Contents:

• 1 x Yeti Cycles 160E C1 Carbon 29" E-Bike
