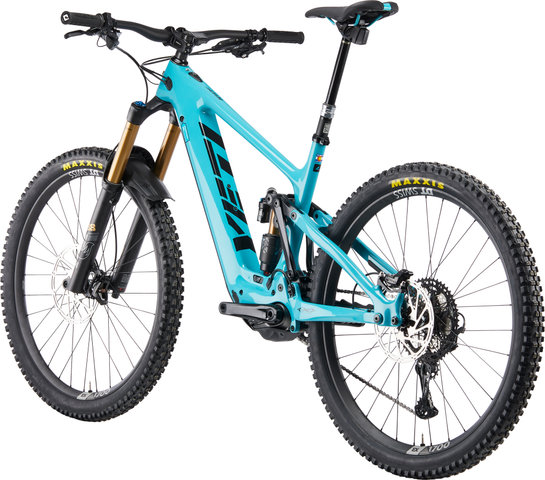

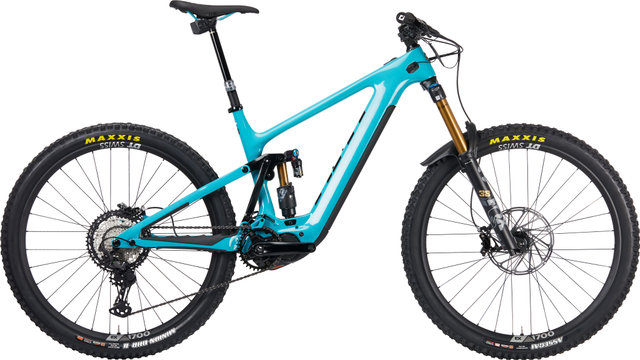

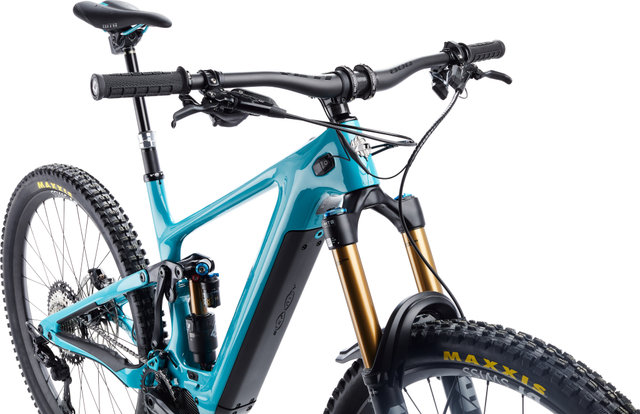

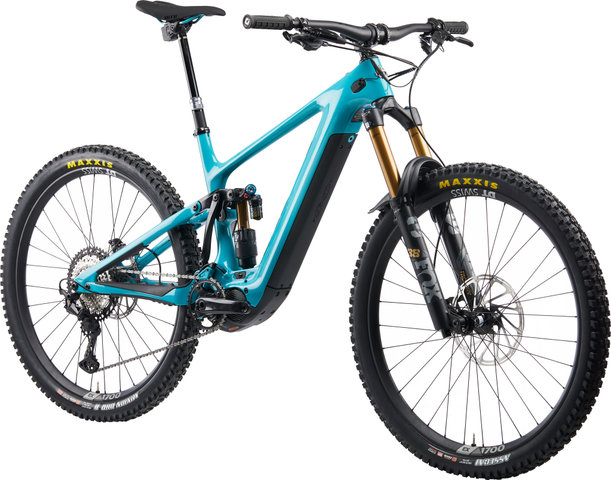

Yeti Cycles 160E T1 TURQ Carbon 29" E-Mountain Bike

The Yeti Cycles 160E T1 29" E-Mountain Bike made of TURQ Carbon for Enduro Trails

The 160E T1 with high-quality TURQ carbon and Shimano XT equipment is the first e-mountain bike from Yeti Cycles and impresses on enduro race tracks with its newly-developed Sixfinity linkage design and high efficiency.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here. For information regarding the return of used e-bike batteries, please contact our customer service.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

Enduro

Wheel Size:

29"

Front Travel:

170 mm

Rear Travel:

160 mm

Sizes:

S, M, L, XL

Front Triangle Material:

Carbon (TURQ Series)

Rear Triangle Material:

Carbon (TURQ Series)

E-Motor:

Type:

mid-drive motor

Motor Type:

Shimano EP8

Pedal Assist (max.):

25 km/h

Power:

250 W

Battery Type:

Shimano internal

Capacity:

630 Wh

Display:

Shimano EM800

Components:

Frame:

Yeti Cycles 160E

Fork:

Fox Racing Shox 38 Factory E-Tune, GRIP2

Stem:

Burgtec Enduro MK3, 35 mm, 50 mm

Handlebars:

Yeti Cycles E-Bike Carbon, 35 mm, 800 mm

Grips:

ODI Elite Pro

Rear Shock:

Fox Racing Shox Float X2 Factory

Remote System:

none

Headset:

Cane Creek 110 integrated

Seatpost:

SRAM Reverb AXS 31.6 mm, 150 mm (M), 175 mm (L, XL)

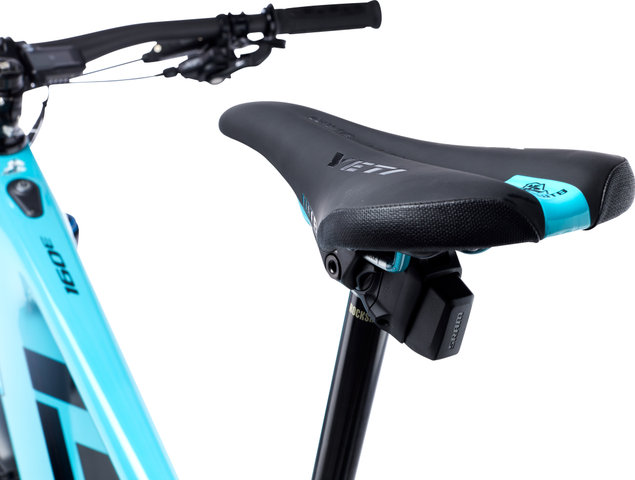

Saddle:

WTB Silverado Custom

Crank:

Shimano EM900, 34 T, 160 mm

Pedals:

none

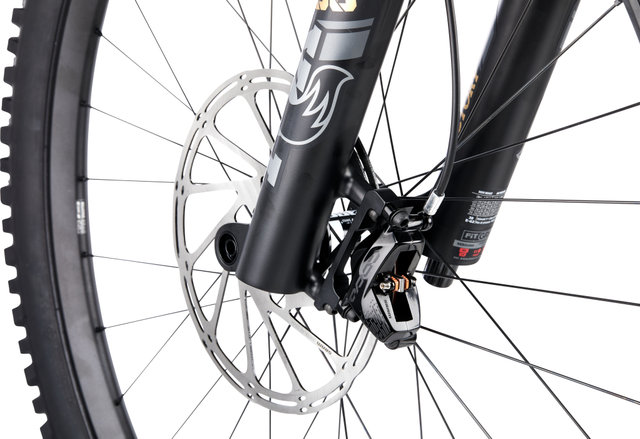

Brakes:

SRAM Code RSC, SRAM Centerline brake rotors 220 mm / 200 mm

Shift Lever:

Shimano XT, 12-speed

Rear Derailleur:

Shimano XT, 12-speed

Cassette:

Shimano XT, 10-51 T

Chain:

Shimano XT, 12-speed

Rims:

DT Swiss EX1700, 30 mm

Spokes:

DT Swiss

Front Hub:

DT Swiss

Rear Hub:

DT Swiss

Front Tyre:

Maxxis Assegai 29 x 2.5" EXO+

Rear Tyre:

Maxxis Minion DHR II 29 x 2.4" DD

Approved For:

Rotor Size (max.):

220 mm (rear)

Tyre Size (max.):

29 x 2.6"

Chainrings:

1x

Chainring Size (max.):

1x 34-tooth

Features:

• newly developed Sixfinity suspension for e-drivetrains
• adjustment of the progressivity of the transmission ratio is possible
• little anti-squat deviation in SAG across the entire cassette for pedalling efficiency in every gear
• semi-integrated battery needs approx. 5 hours charging time
• Bluetooth connection to Shimano E-tube apps is possible
• OneUp Components chain guide keeps cables in place as well as the chain
• short chainstays for traction and agile rear end at high speed
• higher bottom bracket and shorter crank than the SB150 for more pedalling freedom
• Fox Float X2 Factory rear shock with custom tune and sensitive response

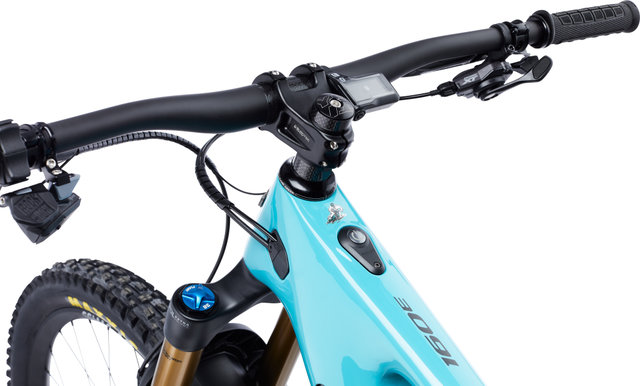

• clever, completely internally routed cable routing and management on the cockpit, without cable hammering at entry and exit openings
• straight, continuous seat tube enables the use of Vario seatposts with a lot of travel
• optimised chainstay protection against noise caused by chain slap

Technology:

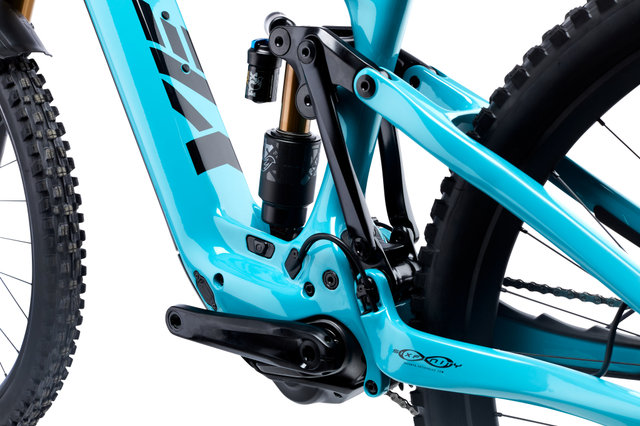

Sixfinity

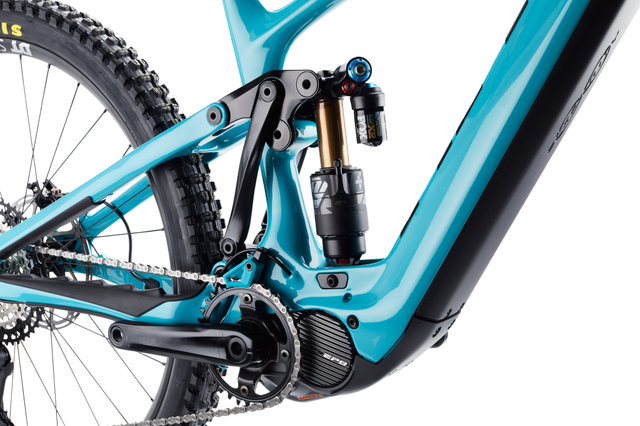

The Sixfinity linkage design was developed specifically for the requirements of e-mountain bikes. At the beginning of the travel, the Switch Link shifts upwards, then as the travel increases, it lowers again from a specific turning point. This creates an anti-squat curve that allows efficient pedalling in any gear, unlike non-motorised bikes where anti-squat has a higher relevance in smaller gears. The Sixfinity construction also allows for three ratio progressivity settings without affecting geometry, anti-squat or anti-rise, and with minimal change in travel. So you have the choice between a rather calm, balanced or poppy character.

Geometry:

S:

Recommended Height:

155 - 170 cm

Stack:

617.0 mm

Reach:

430.0 mm

Seat Tube Length:

380.0 mm

Effective Top Tube Length:

560.9 mm

Head Tube Length:

95.0 mm

Chainstay Length:

446.0 mm

Wheelbase:

1208.3 mm

Bottom Bracket Height:

350.0 mm

Seat Tube Angle:

78.0°

Head Tube Angle:

64.5°

Standover Height:

754.0 mm

M:

Recommended Height:

165 - 180 cm

Stack:

620.0 mm

Reach:

460.0 mm

Seat Tube Length:

410.0 mm

Effective Top Tube Length:

591.8 mm

Head Tube Length:

98.3 mm

Chainstay Length:

446.0 mm

Wheelbase:

1239.7 mm

Bottom Bracket Height:

350.0 mm

Seat Tube Angle:

78.0°

Head Tube Angle:

64.5°

Standover Height:

754.0 mm

L:

Recommended Height:

178 - 191 cm

Stack:

625.0 mm

Reach:

480.0 mm

Seat Tube Length:

450.0 mm

Effective Top Tube Length:

613.4 mm

Head Tube Length:

103.8 mm

Chainstay Length:

446.0 mm

Wheelbase:

1262.1 mm

Bottom Bracket Height:

350.0 mm

Seat Tube Angle:

78.0°

Head Tube Angle:

64.5°

Standover Height:

754.0 mm

XL:

Recommended Height:

185 - 201 cm

Stack:

635.0 mm

Reach:

505.0 mm

Seat Tube Length:

495.0 mm

Effective Top Tube Length:

641.5 mm

Head Tube Length:

114.9 mm

Chainstay Length:

446.0 mm

Wheelbase:

1291.9 mm

Bottom Bracket Height:

350.0 mm

Seat Tube Angle:

78.0°

Head Tube Angle:

64.5°

Standover Height:

754.0 mm

Manufacturer Numbers:

turquoise / S:

YCB22160ESMPTUX2T018700

turquoise / M:

YCB22160EMDPTUX2T018700

turquoise / L:

YCB22160ELGPTUX2T018700

turquoise / XL:

YCB22160EXLPTUX2T018700

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.

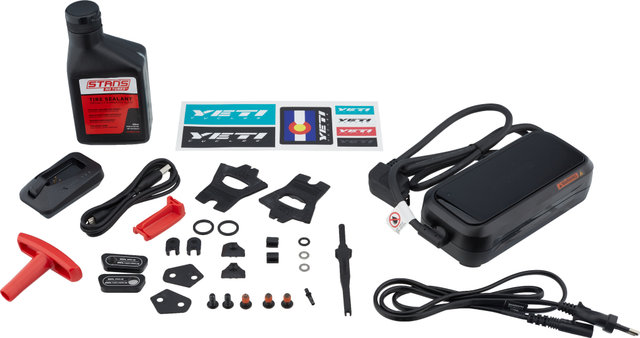

Contents:

• 1 x Yeti Cycles 160E T1 TURQ Carbon 29" e-bike
