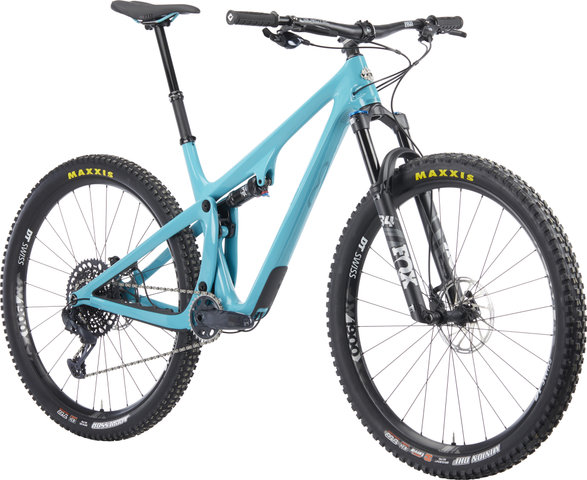

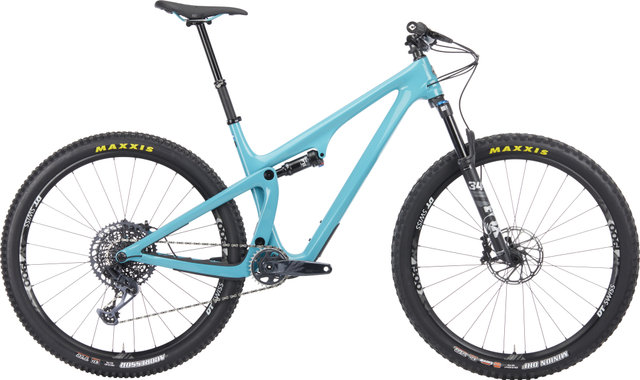

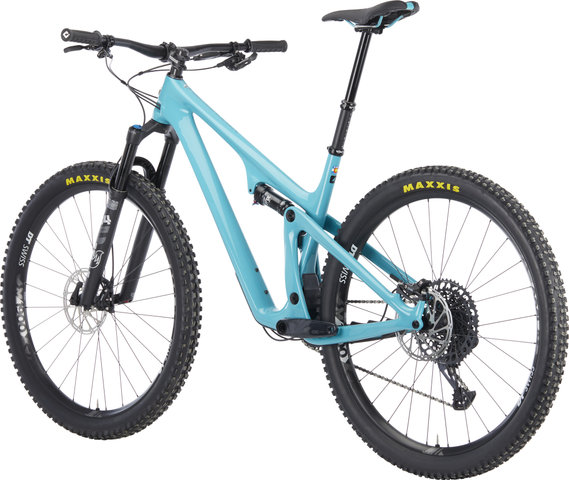

Yeti Cycles SB115 C2 C/Series Carbon 29" Mountain Bike

The Yeti Cycles SB115 C2 29" Carbon Mountain Bike is a full-suspension cross country bike with SRAM GX Eagle drivetrain

The Yeti Cycles SB115 C2 mountain bike made of C/Series carbon with 29" wheels is a fast, agile bike with SRAM GX Eagle drivetrain for cross country racing. This full-suspension bike combines 115 mm rear travel with 130 mm front travel and scores with agile handling.

Specifications:

Application:

Cross Country

Wheel Size:

29"

Front Travel:

130 mm

Rear Travel:

115 mm

Sizes:

M, L, XL

Front Triangle Material:

Carbon (C/Series)

Rear Triangle Material:

Carbon (C/Series)

Components:

Frame:

Yeti Cycles SB115

Fork:

Fox Racing Shox 34 Performance, 44 mm offset

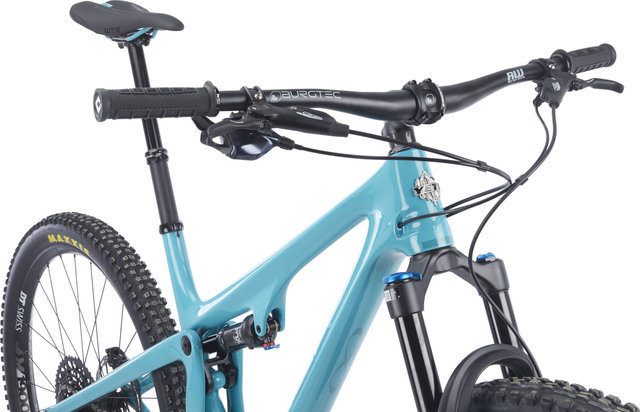

Stem:

Burgtec Enduro MK3, 35 mm clamp, 50 mm length

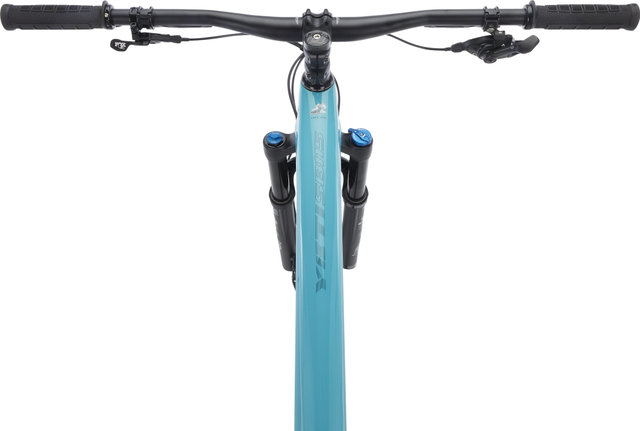

Handlebars:

Burgtec Ride Wide Alloy Enduro, 35 mm clamp, 780 mm length

Grips:

ODI Elite Pro

Rear Shock:

Fox Racing Shox Float DPS Performance

Remote System:

none

Headset:

Cane Creek 40 integrated

Seatpost:

Fox Racing Shox Transfer 30.9 mm, 150 mm (M), 175 mm (L-XL)

Saddle:

WTB Silverado Custom

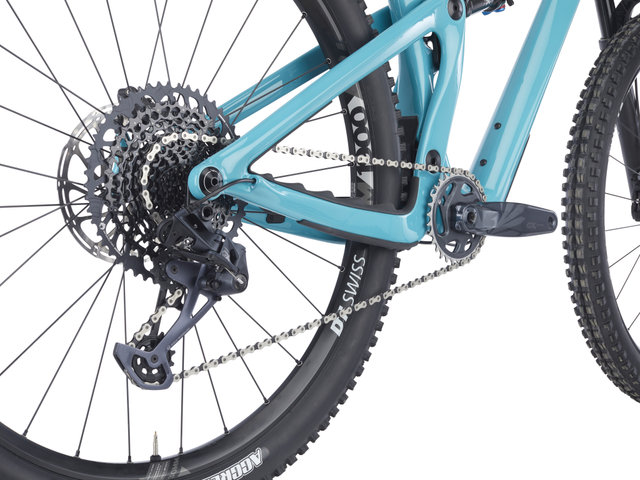

Crank:

SRAM GX Eagle, 170.0 mm, with 30 T chainring and SRAM DUB BB92 bottom bracket

Pedals:

none

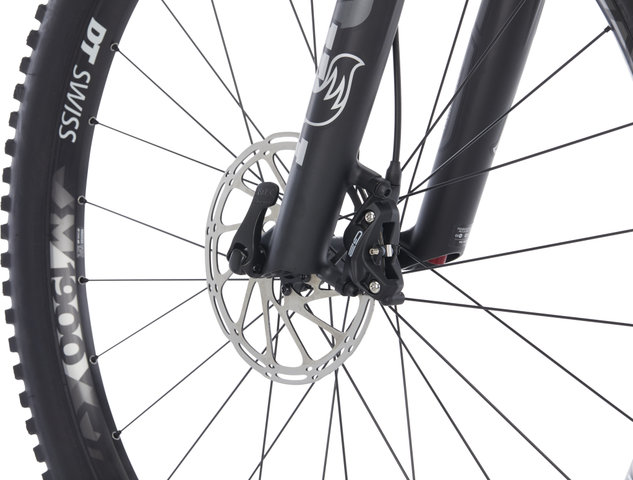

Brakes:

SRAM G2 R, 4 pistons, with SRAM Centerline brake rotors 180 mm/180 mm

Shift Lever:

SRAM GX Eagle, 12-speed

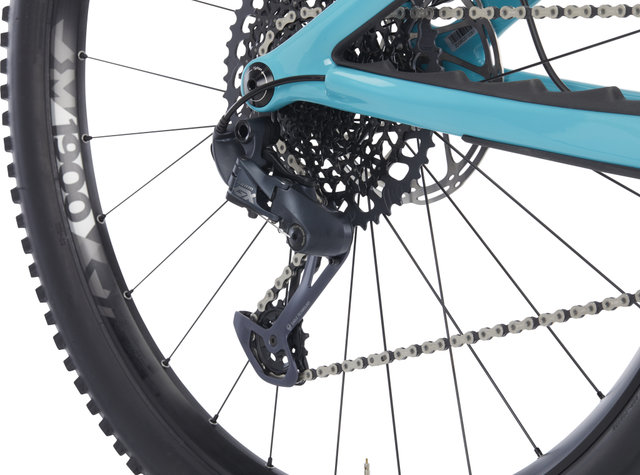

Rear Derailleur:

SRAM GX Eagle, 12-speed

Cassette:

SRAM GX Eagle XG-1275, 10-52 T

Chain:

SRAM GX Eagle, 12-speed

Rims:

DT Swiss M1900, 30 mm

Spokes:

DT Swiss

Front Hub:

DT Swiss

Rear Hub:

DT Swiss

Front Tyre:

Maxxis Minion DHF 29 x 2.5" EXO

Rear Tyre:

Maxxis Aggressor 29 x 2.3" EXO

Approved For:

Rotor Size (max.):

180 mm (rear)

Tyre Size (max.):

29 x 2.3"

Chainrings:

1x

Chainring Size (max.):

1x 36 tooth (round), 1x 34 tooth (oval)

Features:

• cross-country full-suspension bike made of carbon, equipped with SRAM and Fox components
• geometry for playful, agile handling
• Switch Infinity Link specially tuned for high efficiency and low weight
• strong, stiff C/Series carbon
• Fox Float DPS Factory shock with custom tune
• completely internal cable routing
• patented Switch Infinity Link Technology
• with frame protection on down tube and chainstay

Technology:

Switch Infinity Link Technology
At the beginning of the suspension travel, the pivot point moves upwards so that the rear triangle can avoid even the roughest obstacles on the trail. The resulting wheelbase counteracts the drive influences and makes your bike literally fly up the slope. However, when the bike is further down the suspension travel, the Switch Infinity Link lowers again and gives you a feeling of endless travel that makes you want to conquer every trail.

Geometry:

M:

Recommended Height:

165 - 180 cm

Stack:

613.8 mm

Reach:

429.6 mm

Seat Tube Length:

419.0 mm

Effective Top Tube Length:

606.1 mm

Head Tube Length:

107.0 mm

Chainstay Length:

440.7 mm

Wheelbase:

1160.0 mm

Bottom Bracket Height:

341.9 mm

Seat Tube Angle:

74.0°

Head Tube Angle:

67.5°

Standover Height:

733.8 mm

L:

Recommended Height:

178 - 191 cm

Stack:

628.9 mm

Reach:

449.6 mm

Seat Tube Length:

457.0 mm

Effective Top Tube Length:

631.3 mm

Head Tube Length:

123.2 mm

Chainstay Length:

440.7 mm

Wheelbase:

1186.0 mm

Bottom Bracket Height:

341.9 mm

Seat Tube Angle:

74.0°

Head Tube Angle:

67.5°

Standover Height:

734.0 mm

XL:

Recommended Height:

185 - 201 cm

Stack:

649.0 mm

Reach:

469.5 mm

Seat Tube Length:

495.0 mm

Effective Top Tube Length:

658.2 mm

Head Tube Length:

144.7 mm

Chainstay Length:

440.7 mm

Wheelbase:

1214.1 mm

Bottom Bracket Height:

341.9 mm

Seat Tube Angle:

74.0°

Head Tube Angle:

67.5°

Standover Height:

734.9 mm

Manufacturer Numbers:

turquoise / M:

YCB22115CMDPTUPAC024300

turquoise / L:

YCB22115CLGPTUPAC024300

turquoise / XL:

YCB22115CXLPTUPAC024300

anthracite / XL:

YCB22115CXLPANPAC024300

Shipping Notice:

The shipment is sent pre-assembled by a forwarding agent.
The delivery time is extended by 2-5 days, depending on the overall volume of orders.
For individual consultation, please contact our customer service team.

Contents:

• 1 x Yeti Cycles SB115 C2 Carbon 29" Mountain Bike
