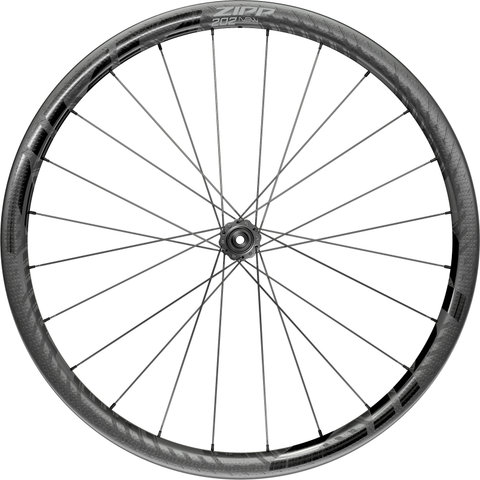

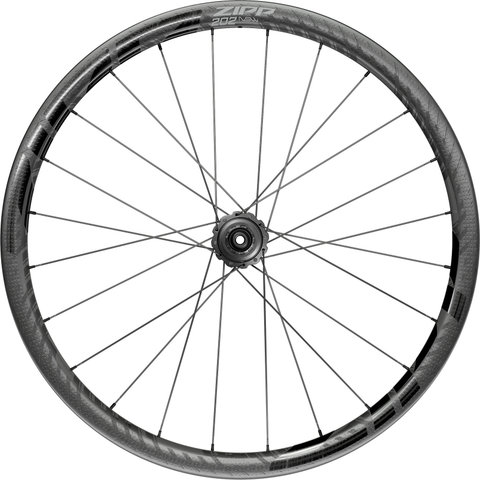

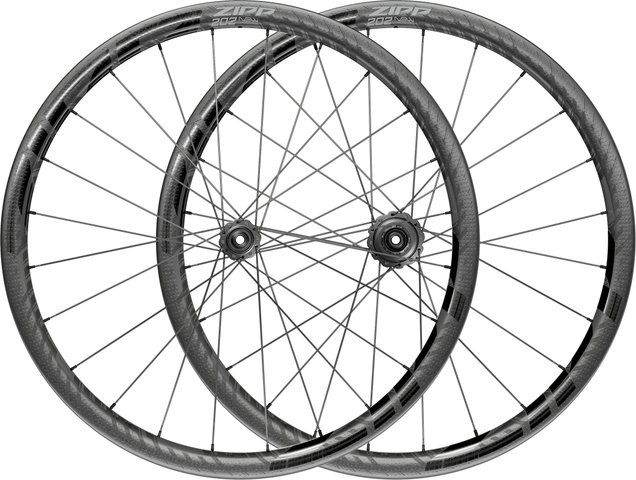

Zipp 202 NSW Carbon Tubeless Center Lock Disc Wheelset

With the Zipp 202 NSW Carbon Tubeless Disc Centre Lock wheelset, you can conquer the steepest climbs, gain valuable seconds on the descent and cut a fine figure on natural roads.

Specifications:

Application:

Road, Gravel

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc

Tubeless System:

Tubeless Ready

Technical Information - Rim:

Type:

Zipp NSW

Rim Flange:

with hook

Dimensions (ETRTO):

21-622

Inner Width:

21 mm

Outer Width:

29 mm

Depth:

32 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

Carbon

Technical Information - Front Hub:

Type:

Zipp Cognition Disc

Over Locknut Dimension:

12 x 100 mm thru-axle

Bearings:

cartridge (stainless steel)

Body Material:

aluminium

Technical Information - Rear Hub:

Type:

Zipp Cognition Disc

Over Locknut Dimension:

12 x 142 mm thru-axle

Bearings:

cartridge (stainless steel)

Body Material:

aluminium

Freehub Body Material:

aluminium

Freehub Body:

Axial Clutch™

Technical Information - Lacing:

Front Lacing Pattern:

2-cross

Rear Lacing Pattern:

2-cross

Spoke Type:

Sapim CX-Ray

Spoke Size:

278 mm/280 mm (front l/r), 280 mm/274 mm (rear l/r)

Spoke Material:

stainless steel

Nipple Type:

Sapim Secure-Loc

Nipple Material:

aluminium

Approved For:

Weight Limit:

115 kg total weight

Air Pressure (max.):

7 bars

Recommended Tyre Width:

28 mm

Features:

• new Zipp graphics create visual presence and embody speed, they are applied using ImPress™ direct printing technology
• tubeless design offers safe performance when riding lower tyre pressures
• Cognition DB hub set runs efficiently whether you pedal or coast
• freehub generates only half as much mechanical resistance as conventional 3-pawl hubs thanks to Axial Clutch Technology
• aluminium axles
• front can be optionally converted to 9 x 100 mm quick release or 15 x 100 mm thru-axle (end caps available separately)
• rear can be converted to 10 x 135 mm quick release or 12 x 135 mm thru-axle (end caps sold separately)

Technology:

NSW
NSW stands for " Nest Speed Weaponry" . 'The Nest' is the nickname the Zipp engineers have given to the windowless high-security research laboratory in a corner of the Zipp factory. This site, or the ground-breaking ideas and designs that emerged from it, became the namesake for an entire series of wheels. The Zipp NSW series is a science, philosophy and mission to develop the fastest, most stable and highest performing wheel components of all times.

ImPress™
The Impress graphics not only provide valuable weight savings, but also enable unique and permanent application of the four letters most feared by the competition in bicycle racing: Z-I-P-P.

ABLC SawTooth™
This patented rim shape achieves what conventional aero wheels cannot: it simultaneously reduces aerodynamic drag and lateral wind forces, providing the ultimate AeroBalance™. In addition, the ABLC recesses ensure improved air flow. The result is lower aerodynamic drag and reduced lateral wind forces at any angle of attack. This is important because the steeper the wind angle, the larger the influence on the handling of the bike.

Colour Index:

matt black-gloss black:

• Rims: black (carbon) with standard decals
• Hubs: matt black-glossy black
• Spokes: black
• Nipples: black

Models:

28" set (front 12x100 + rear 12x142) Shimano:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.

Manufacturer Number:

00.1918.507.000 (front) + 00.1918.508.000 (rear)

28" set (front 12x100 + rear 12x142) SRAM XDR:

Freehub:

SRAM XDR

Gearing:

11-/12-speed

Note:

A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub.

Manufacturer Number:

00.1918.507.000 (front) + 00.1918.508.001 (rear)

Contents:

• 1 x Zipp 202 NSW Carbon Clincher Tubeless Disc Centre Lock wheelset (front and rear)
• 2 x Center Lock lockrings
• 1 x cassette spacer (Shimano rear only)
• 2 x valve core removers
• 2 x tubeless rim tape (pre-installed)
• 2 x tubeless valves (pre-installed)
