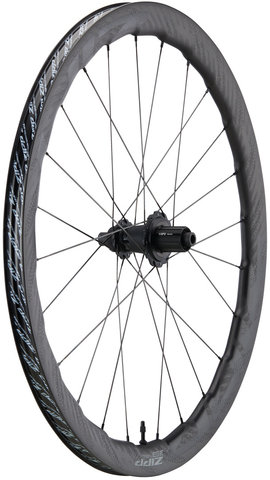

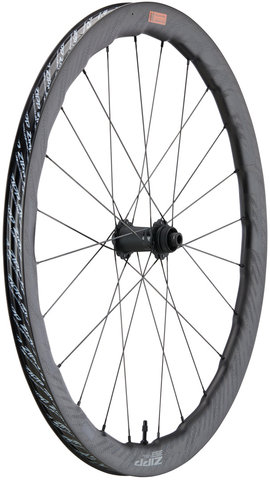

Zipp 353 NSW Carbon Tubeless Center Lock Disc Wheelset

The Zipp 353 NSW Disc is a very aerodynamic road wheelset with up to 45 mm high and 25 mm wide hookless tubeless carbon rims and the revised Cognition V2 hub set. The Axial Clutch V2 freehub ensures a faster frictional connection and reduced friction. The wheels weigh only about 1250 g, which together with their crosswind stability and speed makes them interesting for punchers and escape specialists.

Specifications:

Application:

Road

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc

Tubeless System:

Tubeless Ready

Technical Information - Rim:

Type:

Zipp NSW

Rim Flange:

hookless

Dimensions (ETRTO):

25-622

Inner Width:

25 mm

Outer Width:

30 mm

Depth:

40 mm/45 mm (depending on section)

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

carbon (UD)

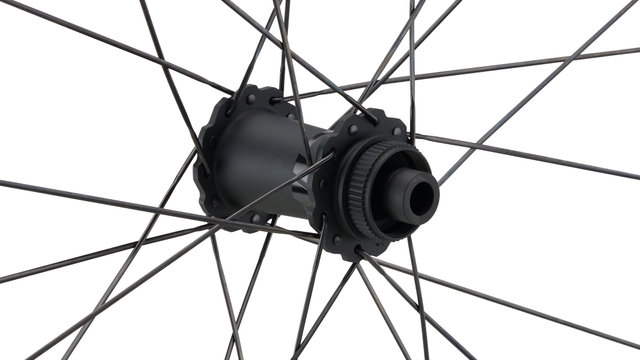

Technical Information - Front Hub:

Type:

Zipp Cognition V2 Disc

Over Locknut Dimension:

12 x 100 mm thru-axle

Bearings:

cartridge (stainless steel)

Body Material:

aluminium

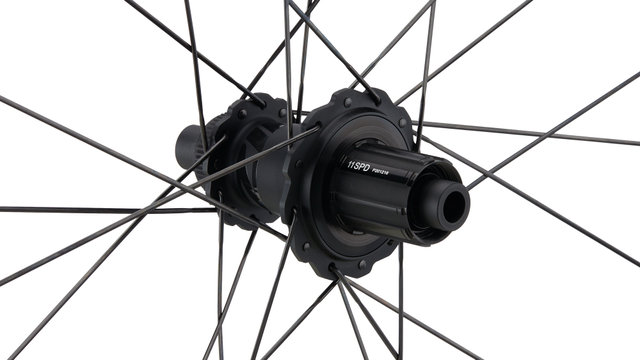

Technical Information - Rear Hub:

Type:

Zipp Cognition V2 Disc

Over Locknut Dimension:

12 x 142 mm thru-axle

Bearings:

cartridge (stainless steel)

Body Material:

aluminium

Freehub Body Material:

aluminium

Freehub Body:

Axial Clutch V2 (54 engagement points)

Technical Information - Lacing:

Front Lacing Pattern:

2-cross

Rear Lacing Pattern:

2-cross

Spoke Type:

Sapim CX-Ray

Spoke Size:

264 mm/266 mm (front l/r), 266 mm/258 mm (rear l/r)

Spoke Material:

stainless steel

Nipple Type:

Sapim Secure-Loc

Nipple Material:

aluminium

Approved For:

Weight Limit:

115 kg total weight

Air Pressure (max.):

5 bars

Tyre Type:

Only approved for tubeless and tubeless-ready tyres. Please make sure that the tyre manufacturer's approval is given for hookless rims.

Features:

• aerodynamically designed wheelset for tubeless use on modern road bikes

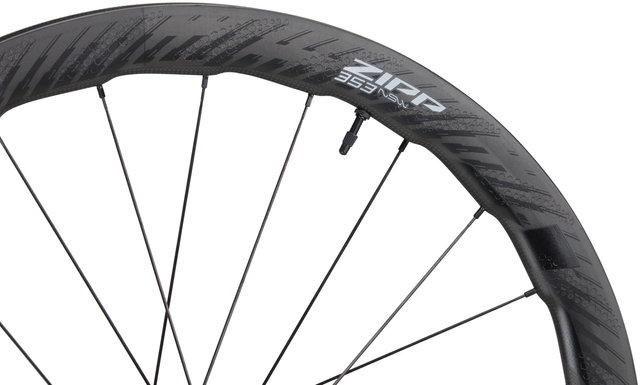

• rim with structured surface and wavy height (40/45 mm) for highest aero and crosswind stability
• TSE technology for more efficiency and reduced rolling resistance
• smooth transition between hookless rim flange and tyre allows higher speed
• even material distribution saves weight
• symmetrical rim tread
• hubs run smoothly when pedalling and at idle speed
• aluminium axles
• lightest tubeless wheelset from Zipp so far
• carbon finish with decals applied by direct printing technology
• front can be optionally converted to 9 x 100 mm quick release or 15 x 100 mm thru-axle (end caps available separately)

Technology:

TSE™
Total System Efficiency is Zipp's approach to speed on different surfaces and under varying riding conditions. TSE aims to eliminate everything that works against speed: Wind resistance, inertia, rolling resistance and vibration.

NSW
NSW stands for " Nest Speed Weaponry." 'The Nest' is the nickname the Zipp engineers have given to the windowless high-security research laboratory in a corner of the Zipp factory. This site, or the ground-breaking ideas and designs that emerged from it, became the namesake for an entire series of wheels. The Zipp NSW series is a science, philosophy and mission to develop the fastest, most stable and highest performing wheel components of all times.

ImPress™
ImPress graphics not only provide valuable weight savings, but also allow for a unique and permanent application of Zipp's signature branding.

SawTooth™ ABLC HexFin™
This patented rim shape achieves what conventional aero wheels cannot: it simultaneously reduces aerodynamic drag and lateral wind forces, providing the ultimate AeroBalance™. SawTooth makes this possible through a series of hump-shaped Hyperfoil points along the inner diameter of the rim. Together with the HexFin ABLC dimples (hexagonal dimples), these provide improved airflow. The result is the most powerful Zipp wheelset of all times with lower aerodynamic drag and reduced lateral wind forces at any angle of attack. This is important because the steeper the wind angle, the larger the influence on the handling of the bike.

Axial Clutch V2
Every time you go into neutral, the pawl mechanism of the freehub on conventional hubs acts like a drum brake, costing you speed. The resistance between the hub shell and the freehub body during freewheeling leads to a loss of efficiency, especially on road bikes. As a solution to this, Zipp has developed the Cognition rear hub with Axial Clutch technology, which reduces drag by disengaging the gear mechanism when idling. The Axial Clutch Wave Spring, on the other hand, quickly and securely re-engages it as soon as the rider starts pedalling again. In the V2 version, this technology also results in even faster response, even less friction and improved durability.

Colour Info:

black:

• Rims: black (carbon) with standard decals
• Hubs: black
• Spokes: black
• Nipples: black

Models:

28" set (front 12x100 + rear 12x142) Shimano:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

The assembly of 8-/9-/10-speed cassettes on a Shimano Road Rotor requires a 1.85 mm spacer.

Manufacturer Numbers:

00.1918.612.000 (front) + 00.1918.613.000 (rear)

28" set (front 12x100 + rear 12x142) SRAM XDR:

Freehub:

SRAM XDR

Gearing:

11-/12-speed

Note:

A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub body.

Manufacturer Numbers:

00.1918.612.000 (front) + 00.1918.613.001 (rear)

Only available to European & Russian customers.

Contents:

• 1 x Zipp 353 NSW Carbon Tubeless Center Lock Disc wheelset (front and rear)

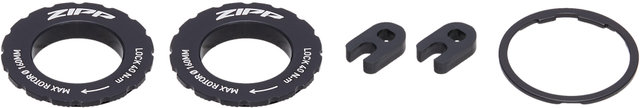

• 2 x Center Lock lockrings
