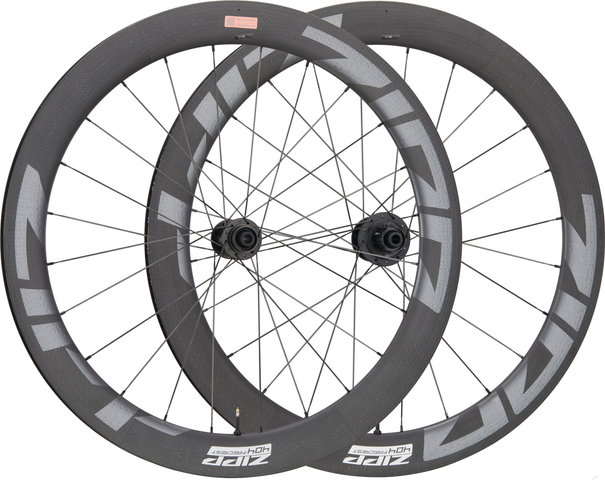

Zipp 404 Firecrest® Carbon Tubeless Center Lock Disc Wheelset

The 404 Firecrest® Disc is a versatile road and gravel wheelset from Zipp based on 58mm high and 23mm wide hookless and tubeless carbon rims. It convinces in terms of aerodynamics, lightness and stability, and also stands out for its durability and responsiveness thanks to the ZR1 hubs.

Specifications:

Application:

Road, Gravel, Triathlon & Time Trial

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc

Tubeless System:

Tubeless Ready

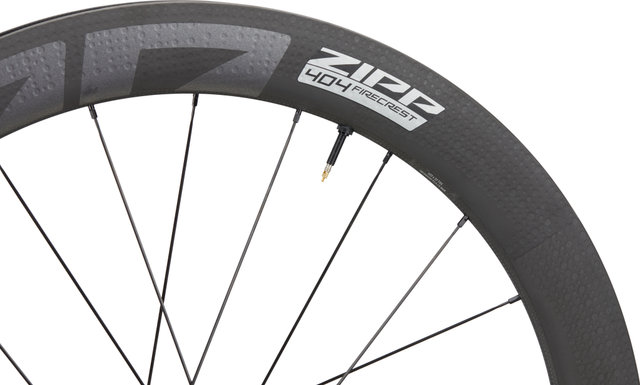

Technical Information - Rim:

Type:

Zipp Firecrest

Rim Flange:

hookless

Dimensions (ETRTO):

23-622

Inner Width:

23 mm

Outer Width:

28 mm

Depth:

58 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

carbon (UD)

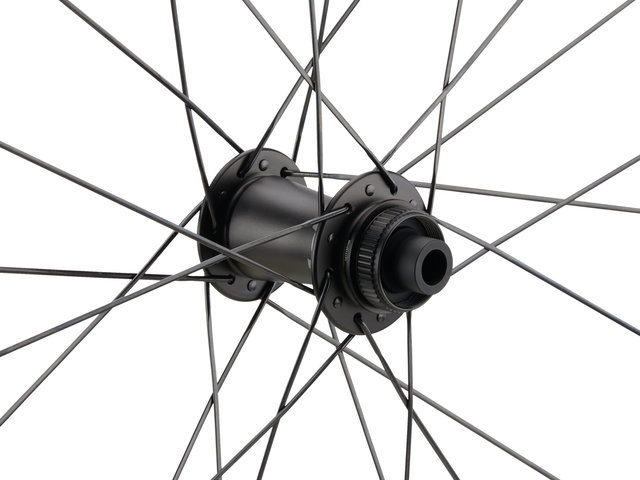

Technical Information - Front Hub:

Type:

Zipp ZR1 Disc

Over Locknut Dimension:

12 x 100 mm thru-axle

Bearings:

cartridge (stainless steel)

Body Material:

aluminium

Technical Information - Rear Hub:

Type:

Zipp ZR1 Disc

Over Locknut Dimension:

12 x 142 mm thru-axle

Bearings:

cartridge (stainless steel)

Body Material:

aluminium

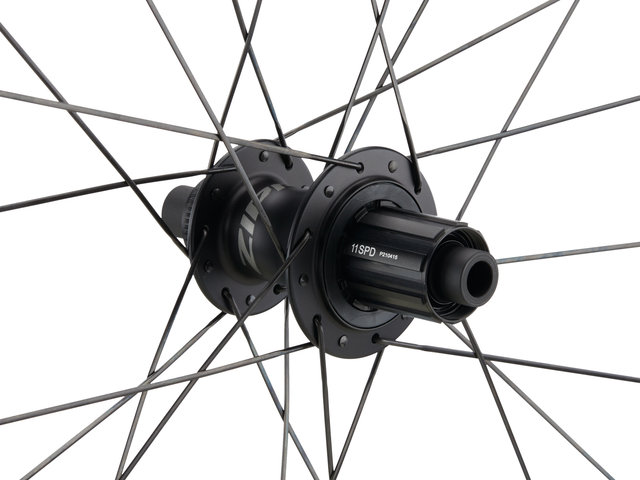

Freehub Body Material:

aluminium

Freehub Body:

6 pawls (66 engagement points)

Technical Information - Lacing:

Front Lacing Pattern:

2-cross

Rear Lacing Pattern:

2-cross

Spoke Type:

Sapim CX-Ray

Spoke Size:

252 mm/254 mm (front l/r), 252 mm/248 mm (rear l/r)

Spoke Material:

stainless steel

Nipple Type:

Sapim Secure-Loc

Nipple Material:

aluminium

Approved For:

Weight Limit:

115 kg total weight

Air Pressure (max.):

5 bars

Tyre Type:

Only approved for tubeless and tubeless-ready tyres. Please make sure that the tyre manufacturer's approval is given for hookless rims.

Features:

• versatile aero wheelset for modern road bikes
• TSE technology for more efficiency and reduced rolling resistance
• hookless rims with 23 mm jaw width for tubeless use
• optimized rim bed facilitates tyre installation
• smooth transition between rim and tyre allows more speed
• even material distribution saves weight
• symmetrical rim tread
• German-designed hubs with better sealing for more durability
• fast response with 66 contact points
• aluminium axles
• carbon finish with glued decals
• front can be converted to 9 x 100 mm quick release or 15 x 100 mm thru-axle (end caps sold separately)
• rear can be converted to 10 x 135 mm quick release (end caps sold separately)

Technology:

TSE™
Total System Efficiency is Zipp's approach to speed on different surfaces and under varying riding conditions. TSE aims to eliminate everything that works against speed: Wind resistance, inertia, rolling resistance and vibration.

Firecrest®
Through the pioneering use of software to analyse numerical fluid mechanics and the power of a supercomputer, Zipp is able to understand exactly what makes wheels go fast. Zipp then tests the most promising rim shapes in the wind tunnel and on the road. This process led to the creation of Firecrest rim technology, which allows the wheel's airflow and centre of gravity to be controlled more effectively, resulting in better aerodynamics, better handling in crosswinds and an overall better cycling experience.

ABLC SawTooth™
This patented rim shape achieves what conventional aero wheels cannot: it simultaneously reduces aerodynamic drag and lateral wind forces, providing the ultimate AeroBalance™. In addition, the ABLC recesses ensure improved air flow. The result is lower aerodynamic drag and reduced lateral wind forces at any angle of attack. This is important because the steeper the wind angle, the larger the influence on the handling of the bike.

Colour Info:

black:

• Rims: black (carbon) with standard decals
• Hubs: black
• Spokes: black
• Nipples: black

Models:

28" set (front 12x100 + rear 12x142) Shimano:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

The assembly of 8-/9-/10-speed cassettes on a Shimano Road Rotor requires a 1.85 mm spacer.

Manufacturer Numbers:

00.1918.620.000 (front) + 00.1918.621.000 (rear)

28" set (front 12x100 + rear 12x142) SRAM XDR:

Freehub:

SRAM XDR

Gearing:

11-/12-speed

Note:

A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub body.

Manufacturer Numbers:

00.1918.620.000 (front) + 00.1918.621.001 (rear)

Only available to European & Russian customers.

Contents:

• 1 x Zipp 404 Firecrest Carbon Clincher Tubeless Disc Centre Lock wheelset (front and rear)

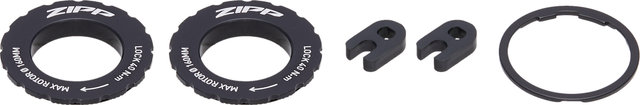

• 2 x Center Lock lockrings
