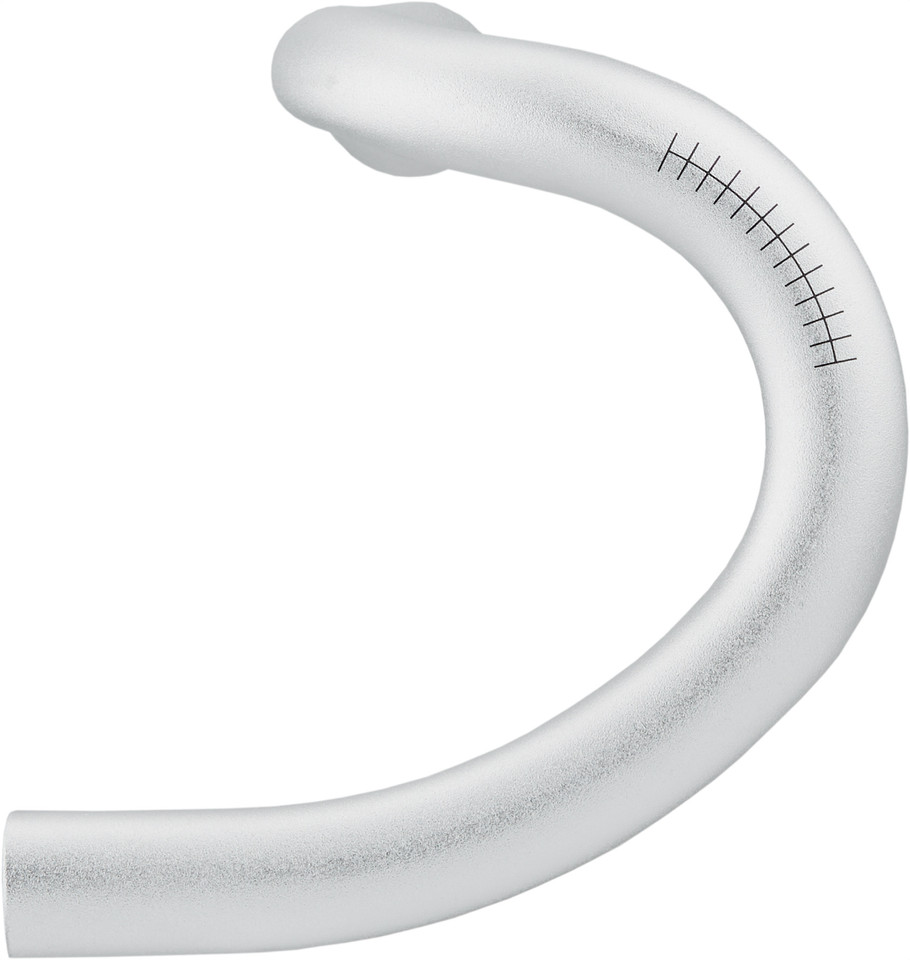

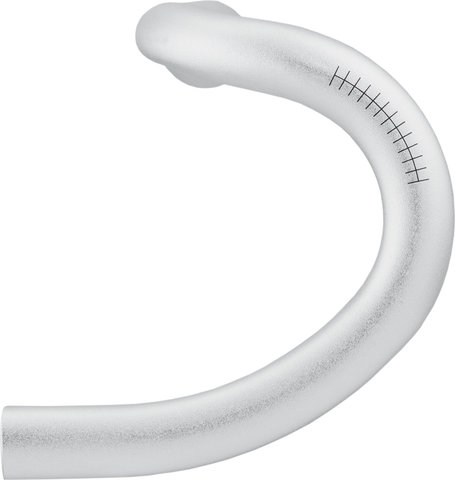

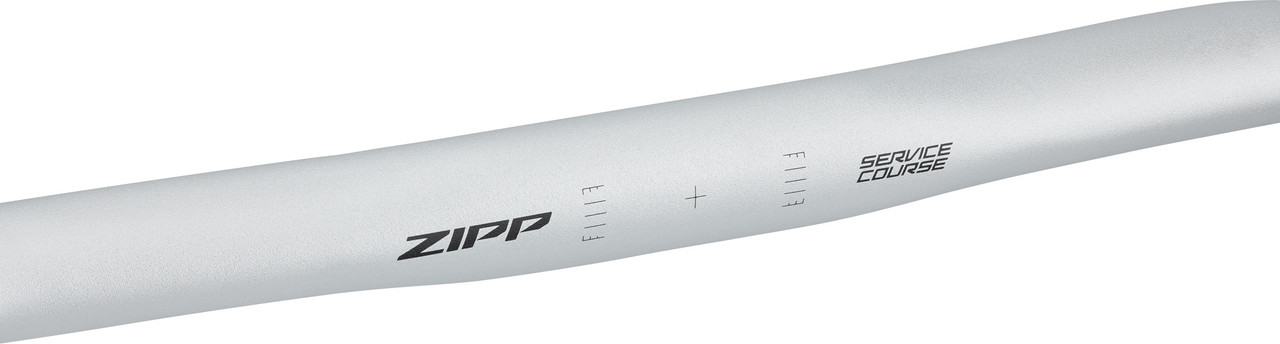

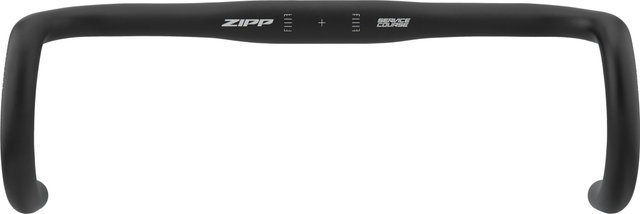

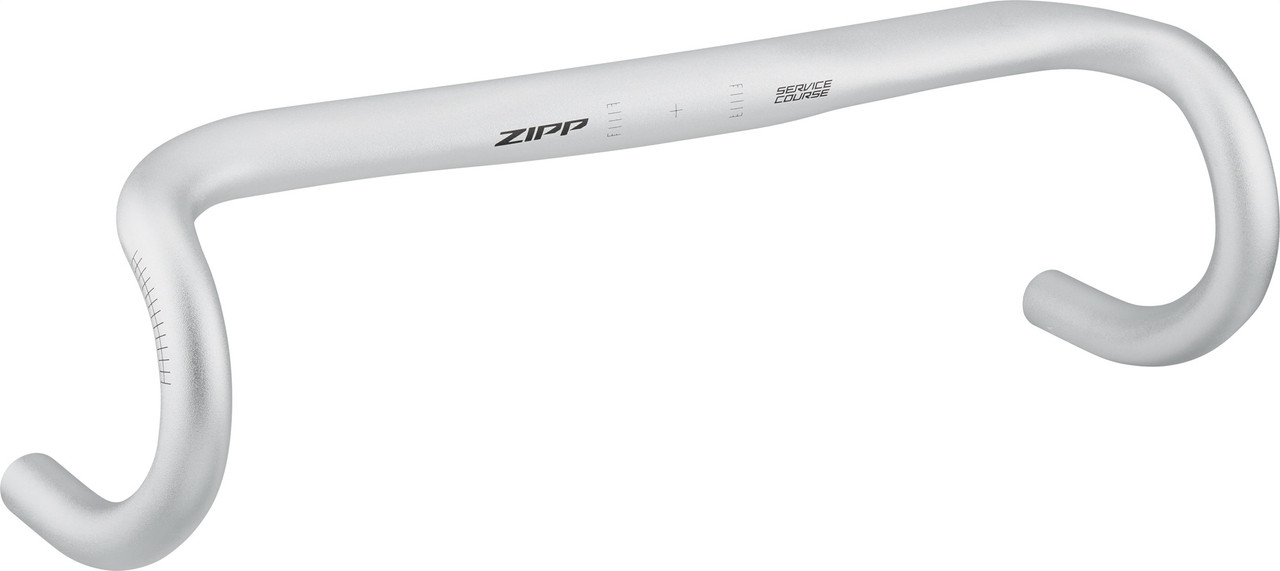

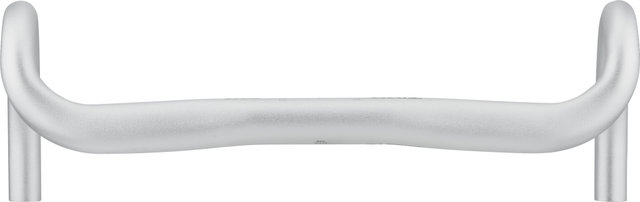

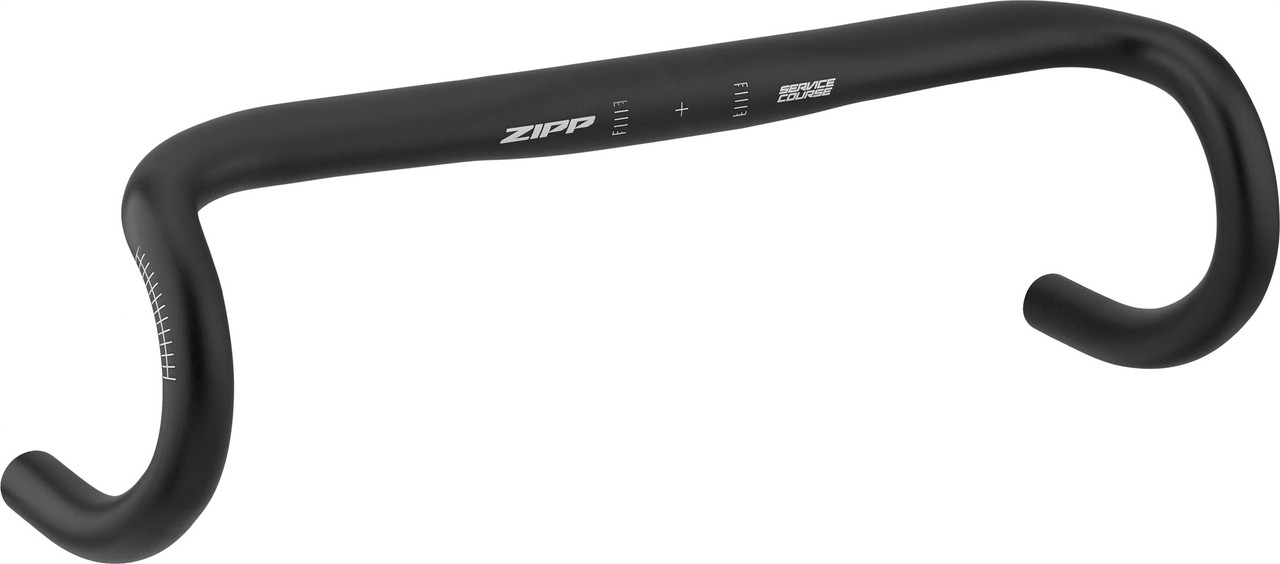

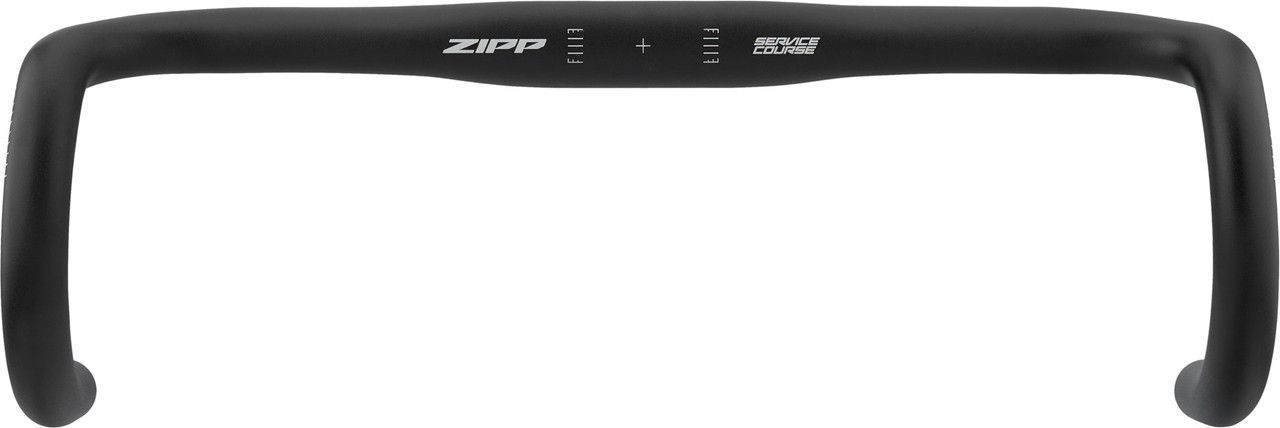

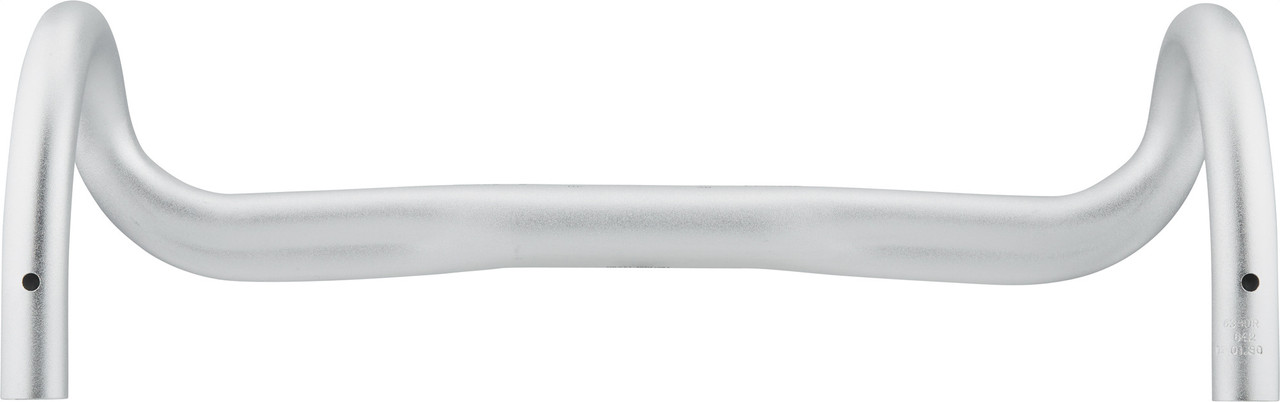

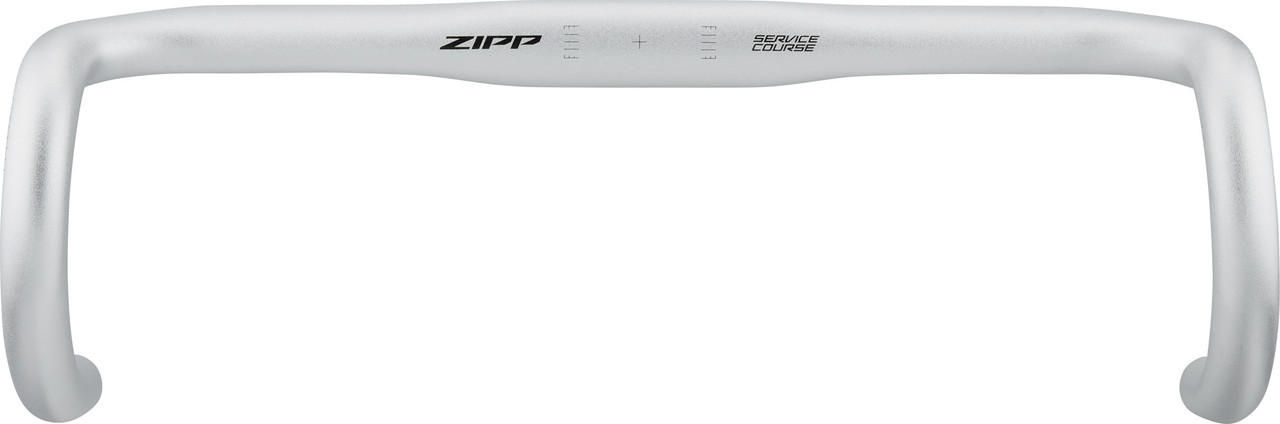

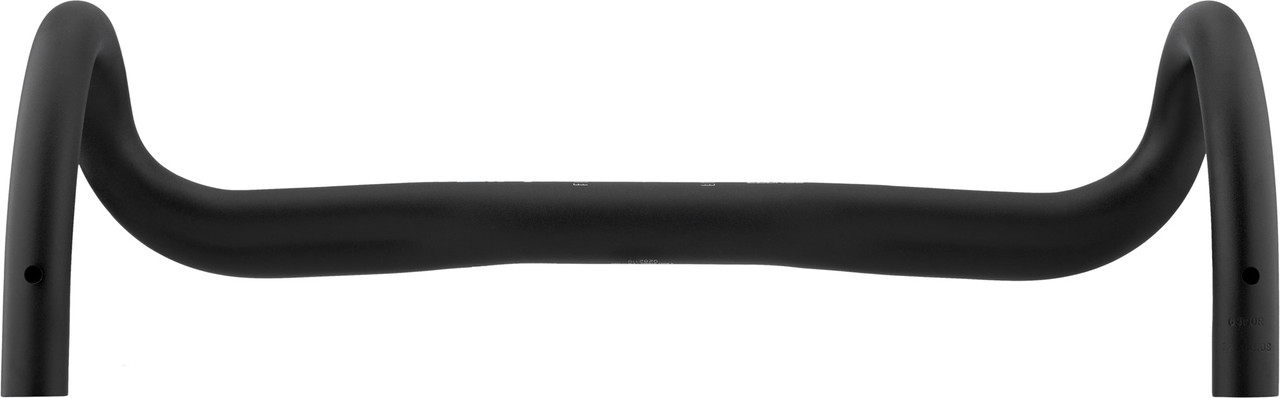

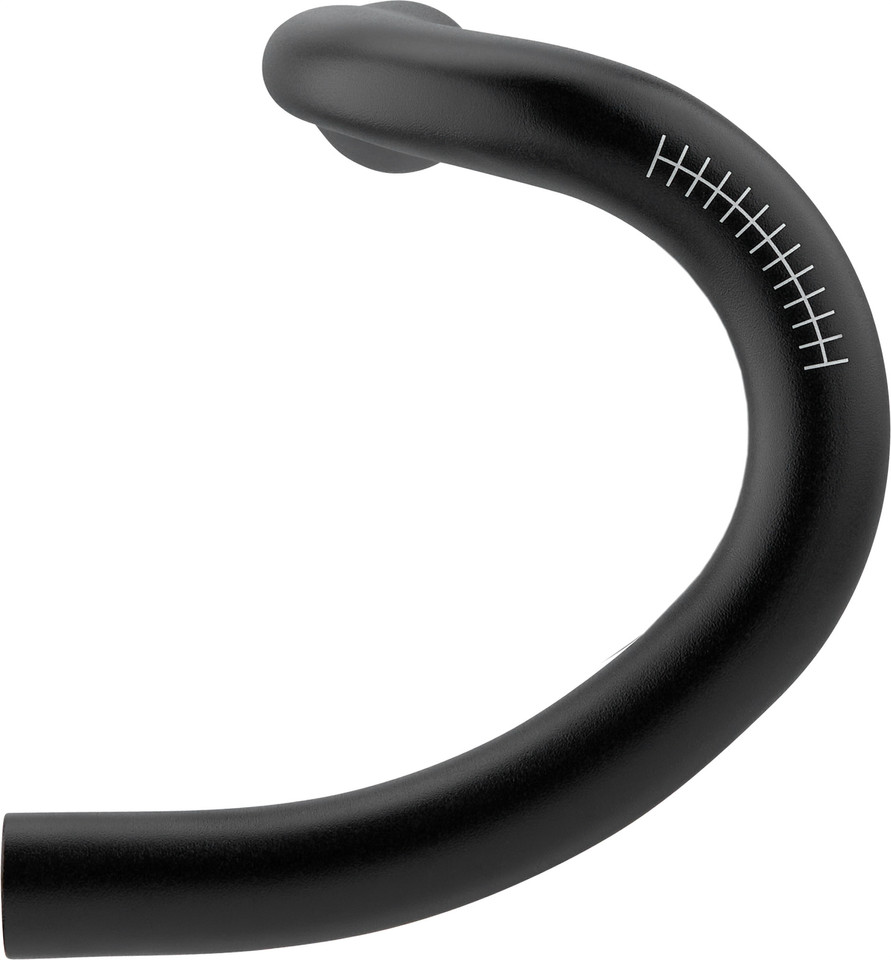

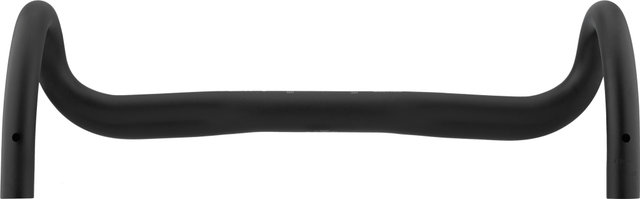

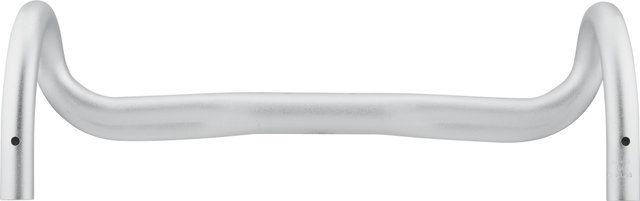

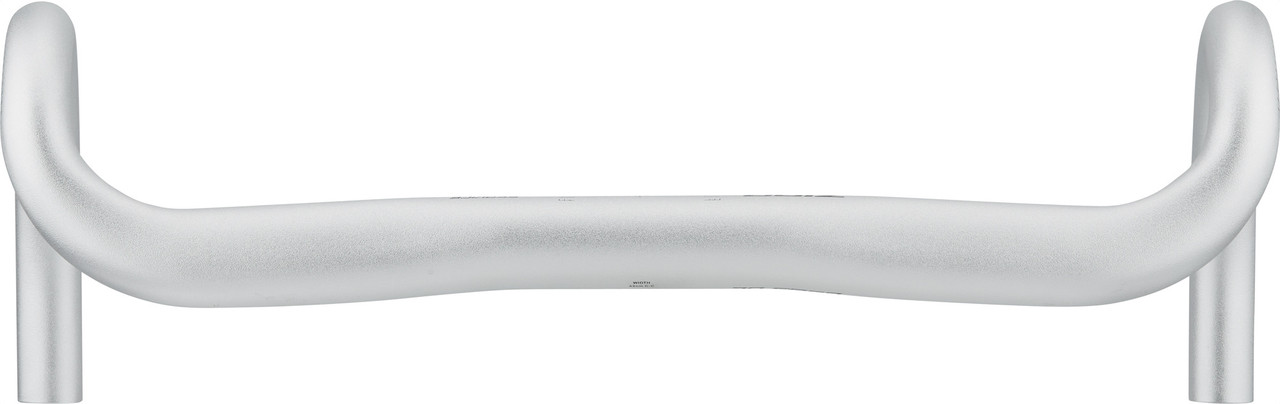

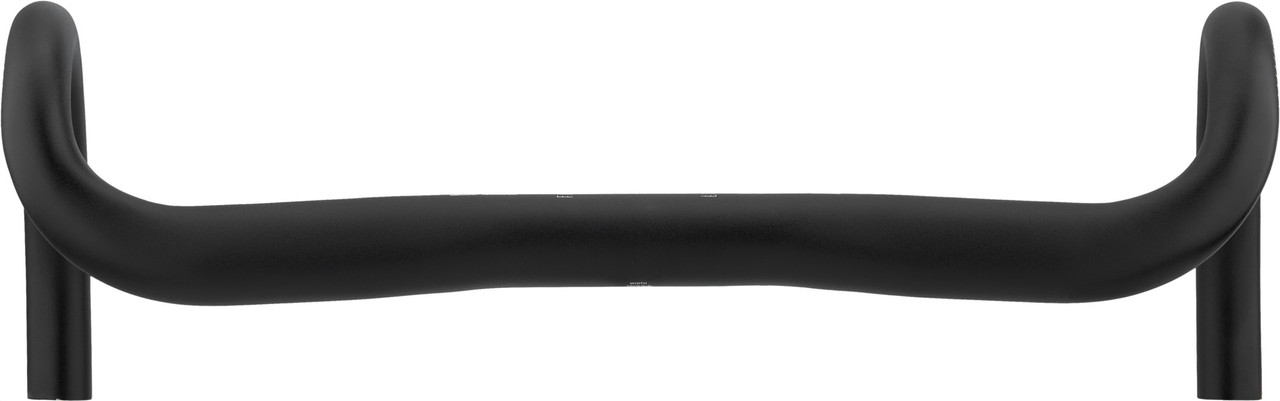

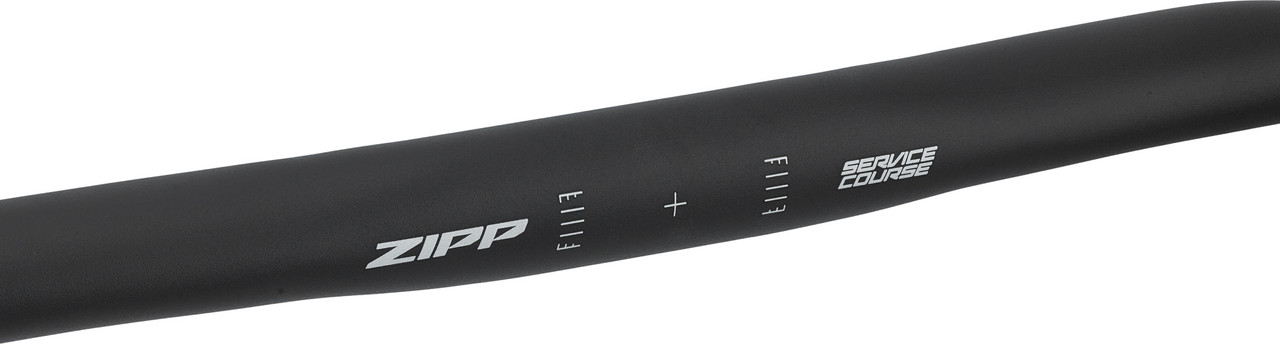

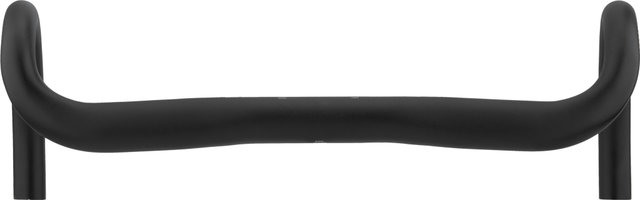

Zipp Service Course 70 Ergo 31.8 Handlebars

The Zipp Service Course 70 Ergo handlebars have an ergonomically-shaped upper handlebar and offer support on daily training rides.

Specifications:

Application:

Road

Width:

380 mm, 400 mm, 420 mm, 440 mm (centre-to-centre)

Stem Clamp:

31.8 mm

Technical Information:

Drop:

128 mm

Reach:

70 mm

Backsweep:

3°

Material:

aluminium (6061)

Approved For:

Weight Limit:

100 kg total weight

Features:

• distinctive silver finish or black bead blasted
• 6061 aluminium for lightweight and durability
• 70 mm reach and 128 mm drop for a short but deep position
• flattened uppers for better adaptation to the hand
• from 40 cm width compatible with handlebar extensions
• clamp range 70 to 110 mm depending on width
• 10° Top link inclination
• 4° Outsweep
• compatible with Shimano Di2 electrical junction EW-RS910

Manufacturer Numbers:

38 cm:

00.6618.163.000 (silver), 00.6618.163.006 (bead blast black)

40 cm:

00.6618.163.001 (silver), 00.6618.163.005 (bead blast black)

42 cm:

00.6618.163.002 (silver), 00.6618.163.004 (bead blast black)

44 cm:

00.6618.163.003 (silver), 00.6618.163.007 (bead blast black)

Only available to European & Russian customers.

Contents:

• 1 x Zipp Service Course 70 Ergo handlebars
