absoluteBLACK Chainring Bolt Set 5-arm

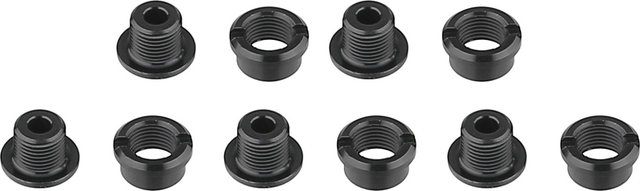

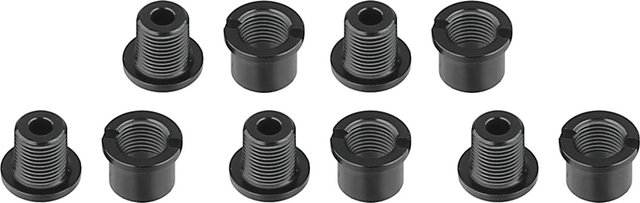

The ten-piece chainring bolt set by absoluteBLACK for 5-arm cranks

These chainring bolts are used to attach absoluteBLACK chainrings to 5-arm cranks. They have a receptacle for Torx T30 and are made of anodised aluminium.

Specifications:

Type:

Chainring Bolts

Threads:

M8

Drive:

Torx T30

Head shape:

Raised Head

Material:

aluminium (7075)

Technical Information:

Thread Length:

8 mm (long), 6.5 mm (short)

Torque max.:

7 Nm

Compatibility:

long:

• 110/5 BCD Oval Road chainrings (inner + outer)
• 130/5 BCD Oval Road chainrings (inner + outer)
• round CX chainrings

short:

• bash ring

Features:

• CNC manufactured
• anodised
• recommended tightening torque 5 - 7 Nm
• designed in Great Britain, manufactured in Poland

Note from the manufacturer:

It is essential to use a medium-strength threadlocker on the thread (e.g. Loctite 243).
If you only change to an oval road chainring on the inside and keep using a round chainring on the outside, continue to use the original bolts.
With the round CX chainrings, the nuts may have to be filed down to fit properly (depending on the crank).

Manufacturer Numbers:

long:

BOLT5L

short:

BOLT5S

Contents:

• 5 x absoluteBLACK chainring bolts
• 5 x nuts 7 mm (long) or 5 x nuts 4 mm (short)
