absoluteBLACK Oval 1X Chainring for 94 BCD

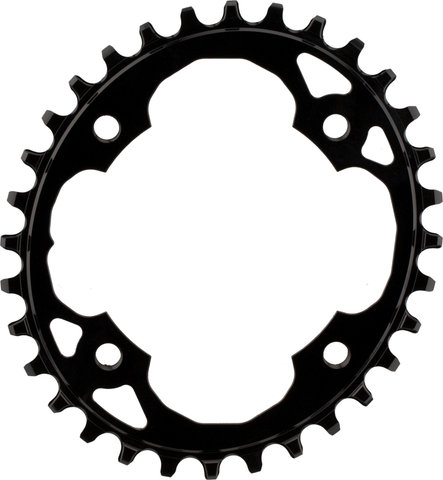

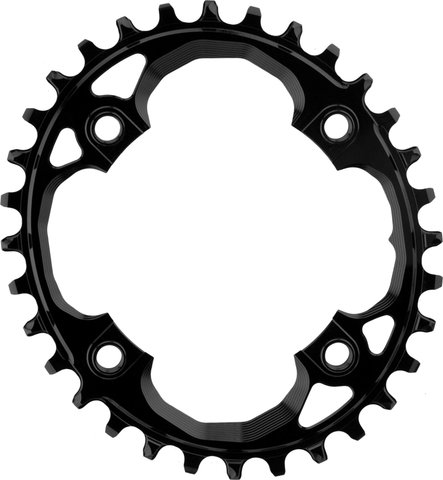

The absoluteBLACK Oval 1X 94 BCD chainring for SRAM 4-arm cranks with 94 mm bolt circle diameter

This oval 1-speed chainring by absoluteBLACK is compatible with four-arm SRAM MTB cranks that have a bolt circle diameter of 94 mm. Use it for the X01, the GX-1000 or the NX crank, for example. The chainring is made of premium quality aluminium and features a Narrow-Wide tooth profile that counteracts chain drop. Thanks to the oval shape, you optimise your pedalling movement, reduce the strain on your knees and move forward faster.

Specifications:

Application:

Cross Country, All Mountain, Enduro

Mount:

94 mm bolt circle diameter, 4-arm

Teeth:

30 T, 32 T, 34 T

Gearing:

1x10-speed, 1x11-speed, 1x12-speed, 1x1-speed singlespeed

Type:

Oval 10.2 - 14.4 %

Technical Information:

Chainline:

48 mm

Material:

aluminium (7075)

Compatibility:

Crank:

SRAM 4-arm cranks with 94 mm bolt circle diameter, e.g. X01, X1, GX-1000, GX Eagle (1000), NX

Chain:

10-speed or 11-speed / 12-speed chains from SRAM or KMC

Note from the manufacturer:

The chainrings have integrated M8 threads and are supplied with matching chainring bolts.

Features:

• oval shape for improved traction and performance uphill
• faster, looser riding with a natural pedalling motion with reduced strain on the knees
• ovality and timing (110.5 - 116.3°) matched to chainring size (TDC technology, Top Dead Center)
• excellent weight to stiffness ratio
• special Narrow-Wide tooth profile improves chain retention
• 3D-moulded teeth for better dirt repellency, longer durability and less noise
• integrated threads for easy assembly and weight savings
• optimised chainline of 48 mm
• chain guide not required
• durable construction, CNC-machined
• anodised
• premium quality and great aesthetic
• designed in Great Britain, manufactured in Poland

Technology:

Oval Chainrings
Oval chainrings follow the natural physiology of humans. They maximise pedalling power the moment it is developed and minimise resistance when it is not. As a result, oval chainrings allow the rider to pedal more smoothly and stay loose on the climb.
In fact, your pedal stroke will feel " rounder" with an oval chainring than with a round chainring.
Compared to round chainrings, oval chainrings address more muscle groups - but each of them to a lesser degree. The total load of pedalling is therefore distributed over a larger muscle mass and the knees are less strained.
This has three advantages: 1. The legs remain fresher and more relaxed. 2. You can go uphill faster. 3. Spreading the load over more muscles reduces the susceptibility to cramps, even with great effort. Ultimately this will increase your riding pleasure. For MTB applications, the rear wheel traction is increased on loose and slippery surfaces, allowing you to make better progress on demanding terrain.

Manufacturer Numbers:

30 tooth:

OV94/30BK

32 tooth:

OV94/32BK

34 tooth:

OV94/34BK

Contents:

• 1 x absoluteBLACK SRAM 94 BCD 1X Oval chainring

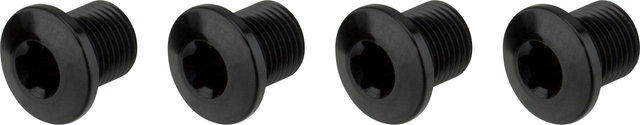

• 4 x chainring bolts M8
