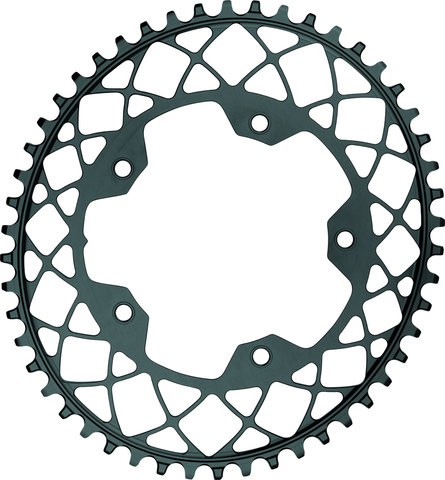

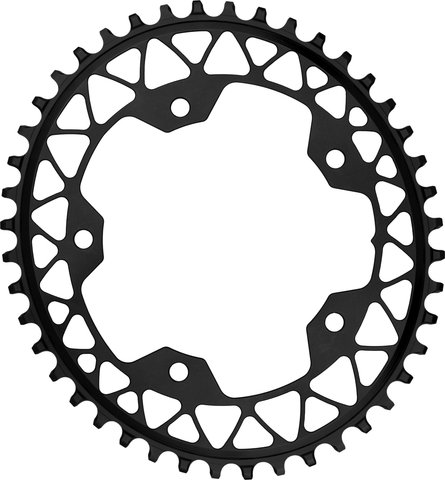

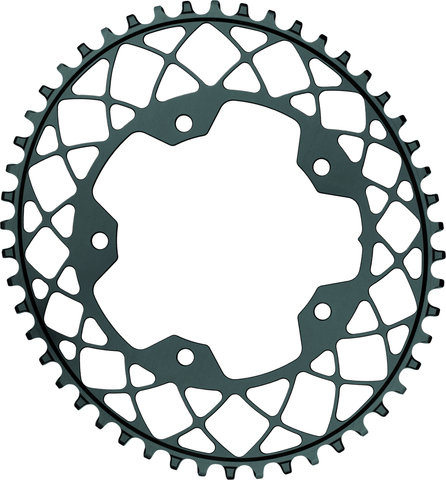

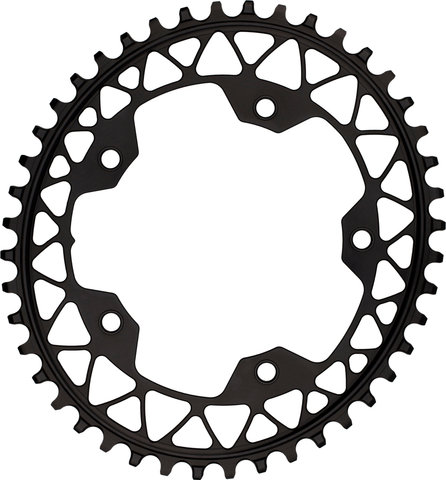

absoluteBLACK Oval 1X Gravel Chainring for 110/5 BCD

The absoluteBLACK Oval 1X Gravel 110/5 chainring for 5-arm cranks with 110 mm bolt circle diameter

This oval 1-speed chainring by absoluteBLACK has an offset of 1.5 mm and was developed for five-arm Shimano cranks with 110 mm bolt circle diameter. These include Dura-Ace 7950, Ultegra 6750, 105 5750 and many more. The chainring is perfect for gravel use thanks to its offset and dirt-repellent properties. It is made of premium quality aluminium and features a Narrow-Wide tooth profile to counteract chain drop. Thanks to the oval shape, you optimise your pedalling movement, reduce the strain on your knees and move forward faster.

Specifications:

Application:

Gravel

Mount:

110 mm bolt circle diameter, 5-arm

Teeth:

44 T, 46 T, 48 T, 50 T

Gearing:

1x10-speed, 1x11-speed

Type:

Oval 10.5 - 11.4%

Technical Information:

Offset:

1.5 mm

Material:

aluminium (7075)

Compatibility:

Crank:

older 5-arm cranks with 110 mm bolt circle diameter, e.g. Shimano Dura-Ace 7950, Ultegra 6750, 105 5750, Tiagra 4650 (also Di2 groupsets) / FSA / Rotor 3D, 3D+ / also suitable for SRAM cranks with removable spider and a concealed chainring bolt, e.g. Force 22, Rival 22

Chain:

10-speed or 11-speed

Features:

• oval shape for improved traction and performance uphill
• faster, looser riding with a natural pedalling motion with reduced strain on the knees
• ovality and timing (112 - 113°) matched to chainring size (TDC technology, Top Dead Center)
• excellent weight to stiffness ratio
• special Narrow-Wide tooth profile improves chain retention
• 3D-moulded teeth for better dirt repellency, longer durability and less noise
• specially developed for riding on mud and grass
• super stiff despite less material overall
• 1.5 mm offset towards the frame for perfect chainline
• durable construction, CNC-machined
• anodised
• premium quality and great aesthetic
• designed in Great Britain, manufactured in Poland

Technology:

Oval Chainrings
Oval chainrings follow the natural physiology of humans. They maximise pedalling power the moment it is developed and minimise resistance when it is not. As a result, oval chainrings allow the rider to pedal more smoothly and stay loose on the climb.
In fact, your pedal stroke will feel " rounder" with an oval chainring than with a round chainring.
Compared to round chainrings, oval chainrings address more muscle groups - but each of them to a lesser degree. The total load of pedalling is therefore distributed over a larger muscle mass and the knees are less strained.
This has three advantages: 1. The legs remain fresher and more relaxed. 2. You can go uphill faster. 3. Spreading the load over more muscles reduces the susceptibility to cramps, even with great effort. Ultimately this will increase your riding pleasure. For MTB applications, the rear wheel traction is increased on loose and slippery surfaces, allowing you to make better progress on demanding terrain.

Manufacturer Numbers:

black 44 tooth:

GROV44/110/5BK

black 46 tooth:

GROV46/110/5BK

black 48 tooth:

GROV48/110/5BK

black 50 tooth:

GROV50/110/5BK

grey 44 tooth:

GROV44/110/5GR

grey 46 tooth:

GROV46/110/5GR

grey 48 tooth:

GROV48/110/5GR

grey 50 tooth:

GROV50/110/5GR

Contents:

• 1 x absoluteBLACK 1X Gravel 110/5 BCD Oval chainring
• 5 x chainring bolts
