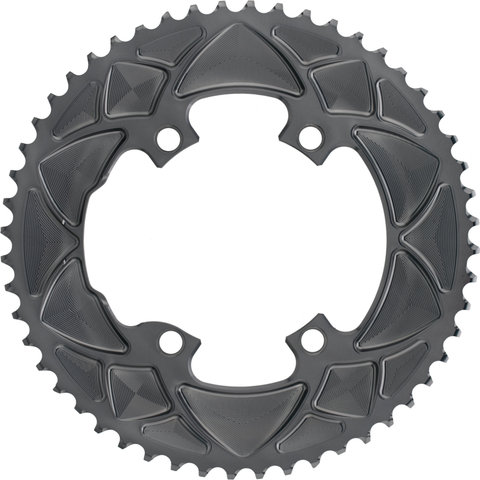

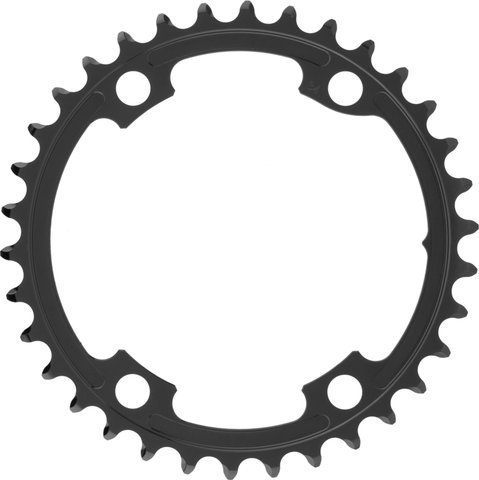

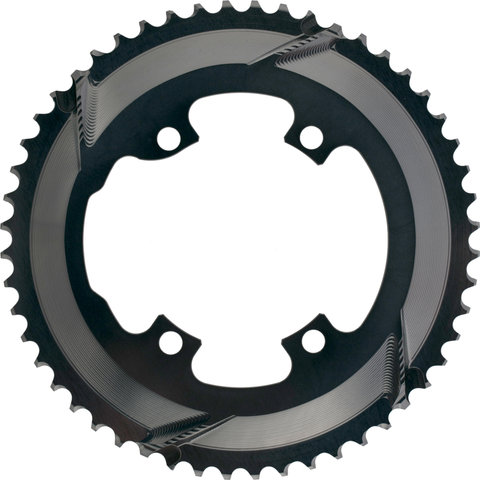

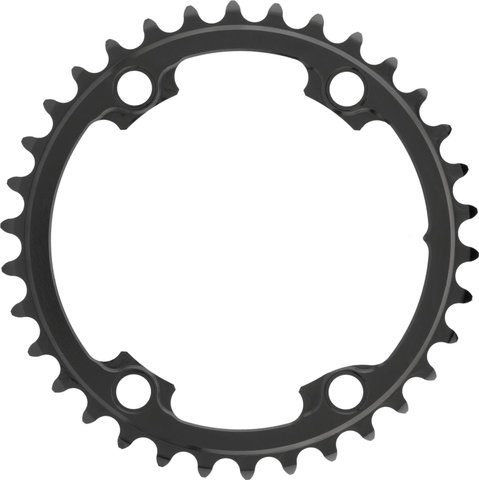

absoluteBLACK Round Road 110/4 Chainring for Shimano Dura-Ace / Ultegra / 105
The absoluteBLACK Round Road 110/4 chainring for four-arm Shimano cranks with 110 mm bolt circle diameter
This round 2-speed chainring by absoluteBLACK is compatible with Shimano road bike cranks that have four asymmetrically arranged arms and a bolt circle diameter of 110 mm. These include Dura-Ace R9100, Ultegra R8000 and 105 R7000, but also older models such as Dura-Ace 9000, Ultegra 6800 and 105 5800. The chainring is designed for super-fast and smooth shifting. It is made of premium quality aluminium and is characterised by particular rigidity.
Specifications:
- Application:
- Road
- Mount:
- 110 mm bolt circle diameter, 4-arm asymmetrical
- Teeth:
- 34 T, 36 T, 38 T, 39 T, 50 T, 52 T, 53 T
- Gearing:
- 2x10-speed, 2x11-speed
Technical Information:
- Combinations:
- 34-50 T, 36-52 T, 38-52 T, 39-53 T
- Material:
- aluminium (7075)
Compatibility:
- Crank:
- all Shimano road cranks with 4 arms and 110 mm bolt circle diameter Dura-Ace R9100 (also R9120, R9150, R9170 groupsets), 9000 (also Di2 groupsets) / Ultegra R8000 (also R8020, R8050, R8070 groupsets), 6800 (also Di2 groupsets) / 105 R7000 (also R7020, R7070 groupsets), 5800 / Tiagra 4700
- Chain:
- 10-speed or 11-speed
Note from the manufacturer:
The 34 T chainring is not compatible with power meters that have a circular spider (e.g. SRAM QUARQ, Power2Max). Use long bolts or bolt covers for the outer chainring. If you are only replacing the inner chainring, continue to use the original bolts.Combinations other than those listed above are also possible, but these slow down the shifting process and require further adjustments to the front derailleur. Please note the maximum permissible difference of 16 teeth.
Features:
- 5 mm thick and super stiff
- 4 or 6 shift ramps and design with recesses for fast, smooth shifting
- excellent weight to stiffness ratio
- durable construction, CNC-machined
- anodised
- premium quality and great aesthetic
- designed in Great Britain, manufactured in Poland
Manufacturer Numbers:
- black 34 tooth:
- RR9100/34/4BK
- black 36 tooth:
- RR9100/36/4BK
- black 38 tooth:
- RR9100/38/4BK
- black 39 tooth:
- RR9100/39/4BK
- black 50 tooth:
- RR9100/50/4BK
- black 52 tooth:
- RR9100/52/4BK
- black 53 tooth:
- RR9100/53/4BK
- grey 50 tooth:
- RR9100/50/4GR
- grey 52 tooth:
- RR9100/52/4GR
- grey 53 tooth:
- RR9100/53/4GR
Contents:
- 1 x absoluteBLACK Road 110/4 BCD Shimano Round chainring
Order Together:
- Chainring Bolt Covers for Dura-Ace R9100 or
- Chainring Bolt Covers for Ultegra R8000 or
- Chainring Bolt Covers for Dura-Ace 9000 or
- Chainring Bolt Covers for Ultegra 6800 or
- Chainring Bolt Set for 4-arm
Weight:
- black/34 tooth: 30 g
- black/36 tooth: 38 g
- black/38 tooth: 43 g
- black/50 tooth: 114 g
- black/52 tooth: 129 g
