absoluteBLACK Ultimate Road Center Lock Ring

absoluteBLACK Ultimate Center-Lock-Ring - lightweight tuning for your brake rotor

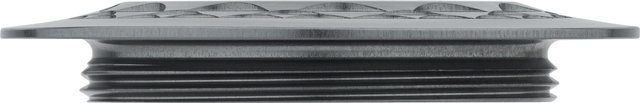

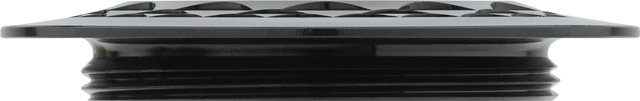

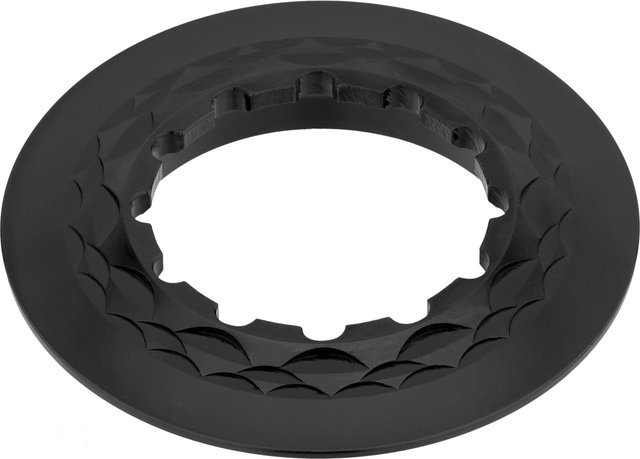

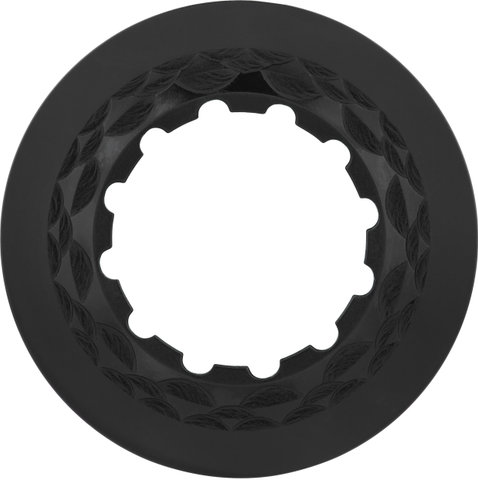

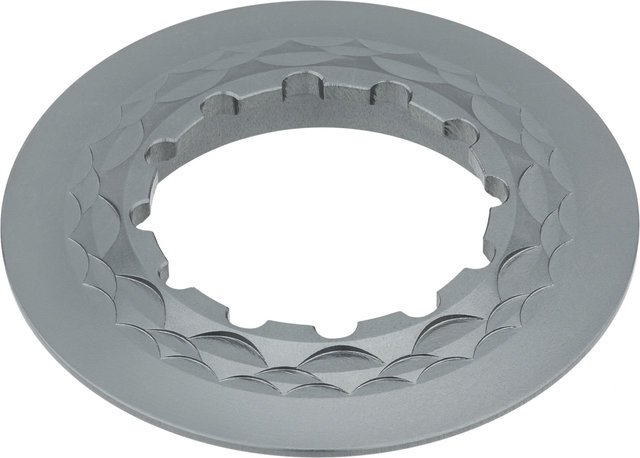

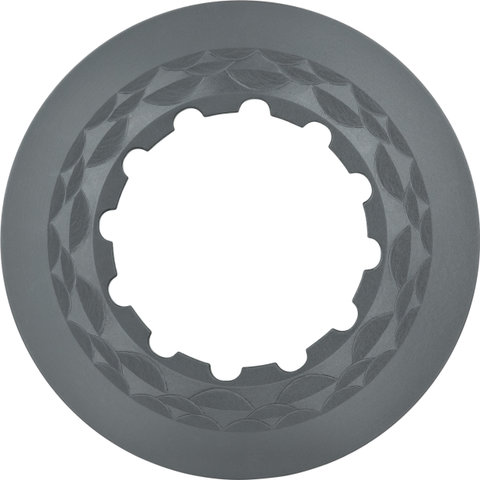

The Ultimate Centre-Lock lockring by absoluteBLACK can be used for brake rotors on road, gravel and cyclocross bikes with 12 mm thru axle or quick release. It is made of aluminium and is extra-light due to the reduced diameter: about 40% lighter than a conventional lockring. Plus, with its CNC design and anodised finish, it simply looks good.

Specifications:

Application:

Road, Gravel, Cyclocross

Material:

aluminium (7075)

Outer Diameter:

41.2 mm

Compatibility:

• centre-lock hubs with 12 mm thru axle
• centre-lock hubs with 9 mm quick release skewers
• suitable tool: 12-cam, 23.4 mm diameter

Note from the manufacturer:

Cannot be used with centre-lock adapters due to the smaller diameter. Not compatible with 15 and 20 mm thru axles.

Features:

• internally toothed centre-lock locking ring for 12 mm thru-axle and quick-release hubs
• tuning part for road, CX and gravel
• approx. 40 % lighter than standard lock rings
• smaller diameter of only 41.2 mm
• CNC-machined and anodised for a unique look

Manufacturer Numbers:

black:

CTRL/BK

titanium:

CTRL/TI

Contents:

• 1 x absoluteBLACK Ultimate Center Lock lockring

• black: 5.8 g
