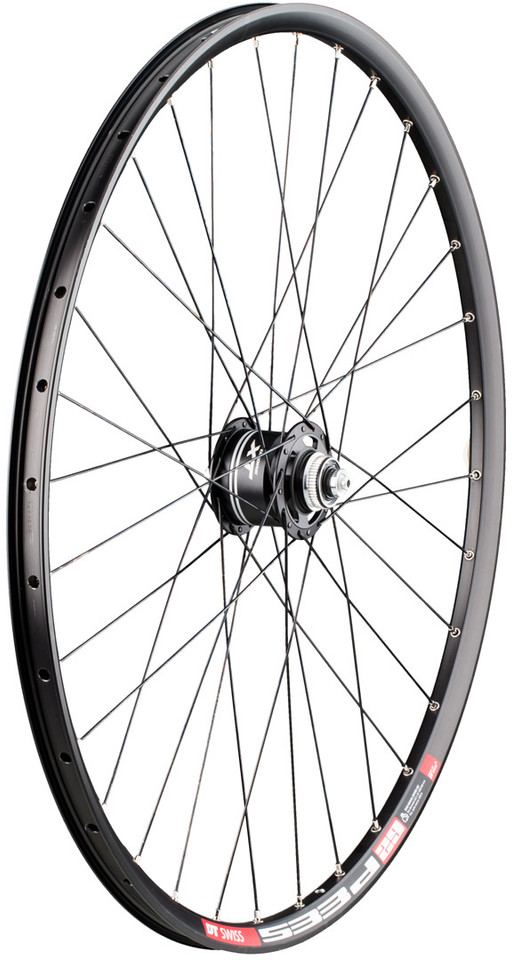

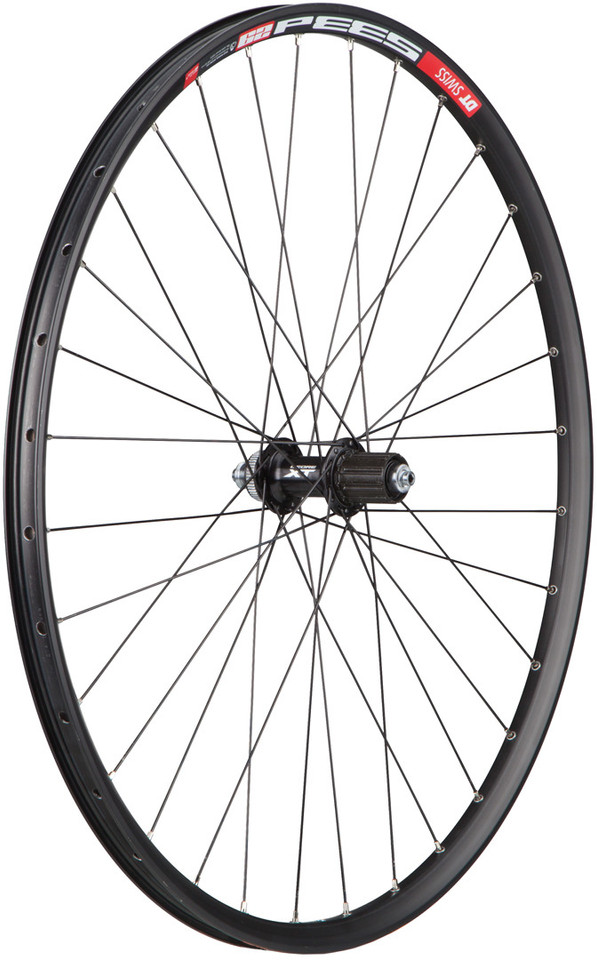

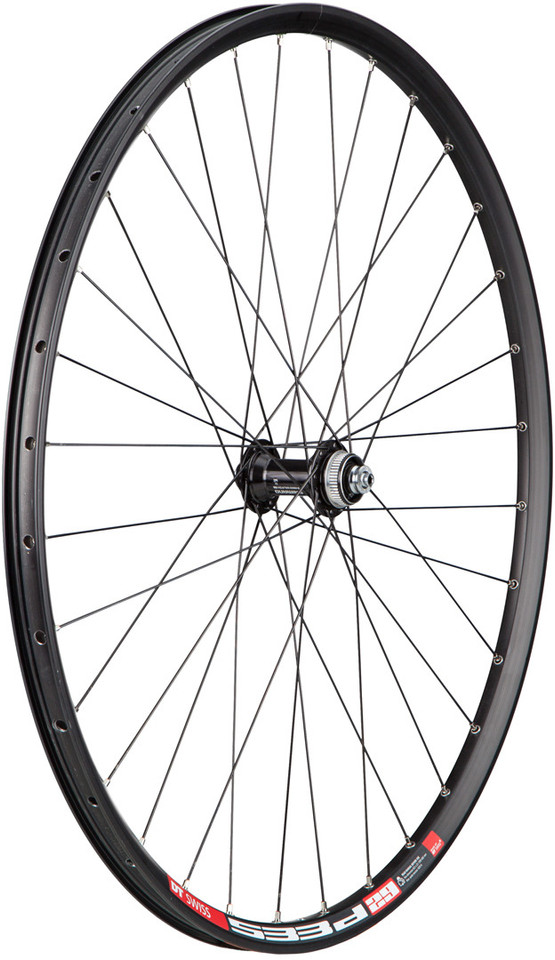

bc basic Urban XT Heavy Duty Center Lock Disc 28" wheel

bc basic Urban XT Heavy Duty 28" Disc wheel with DT Swiss 533db rim, Shimano M8000 hubs and DT Swiss Competition spokes.

Specifications:

Application:

City & Touring

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

32

Brake Type:

Center Lock Disc

Tubeless System:

Tubeless Ready

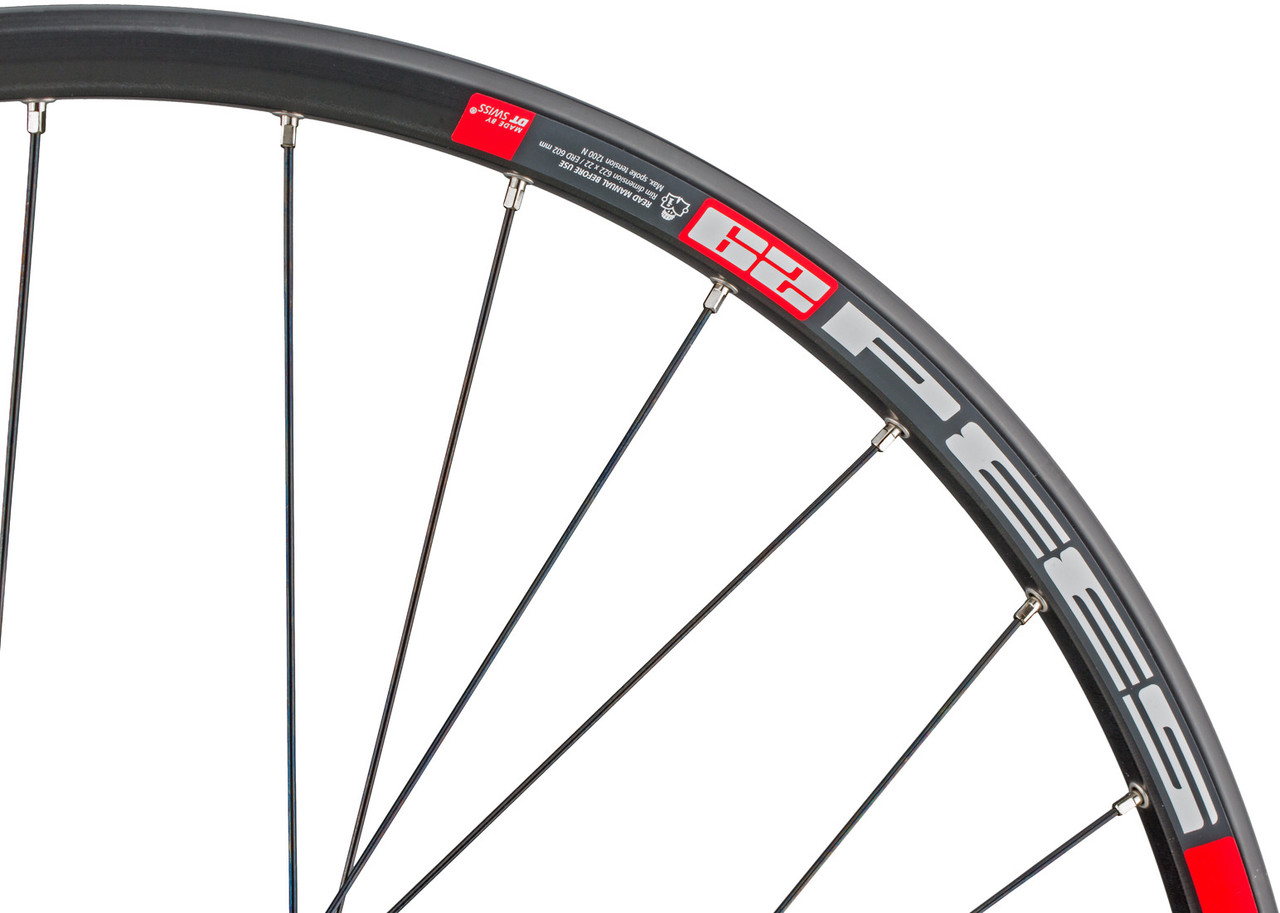

Technical Information - Rim:

Type:

DT Swiss 533db

Rim Flange:

with hook

Dimensions (ETRTO):

22-622

Inner Width:

22 mm

Outer Width:

27.7 mm

Depth:

20.3 mm

ERD:

602 mm (nipple slot)

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

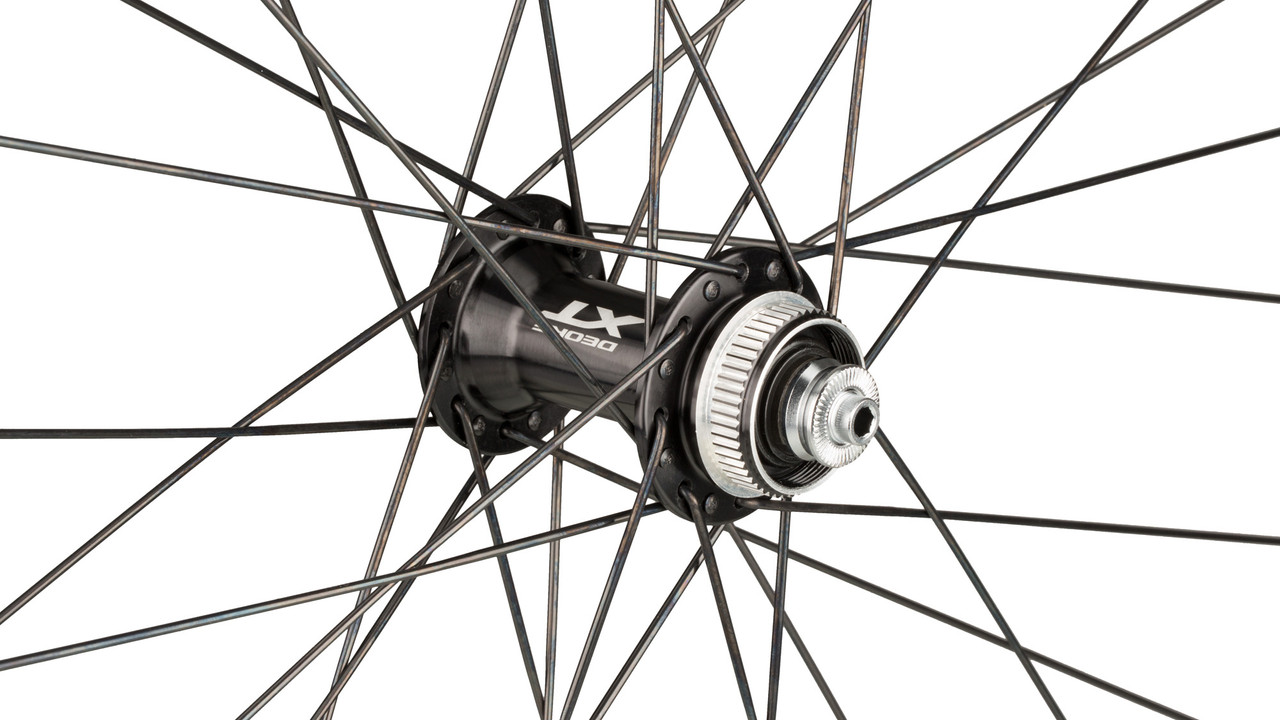

Technical Information - Front Hub:

Type:

Shimano Deore XT HB-M8000

Over Locknut Dimension:

9 x 100 mm quick release

Bearings:

cup & cone

Body Material:

aluminium

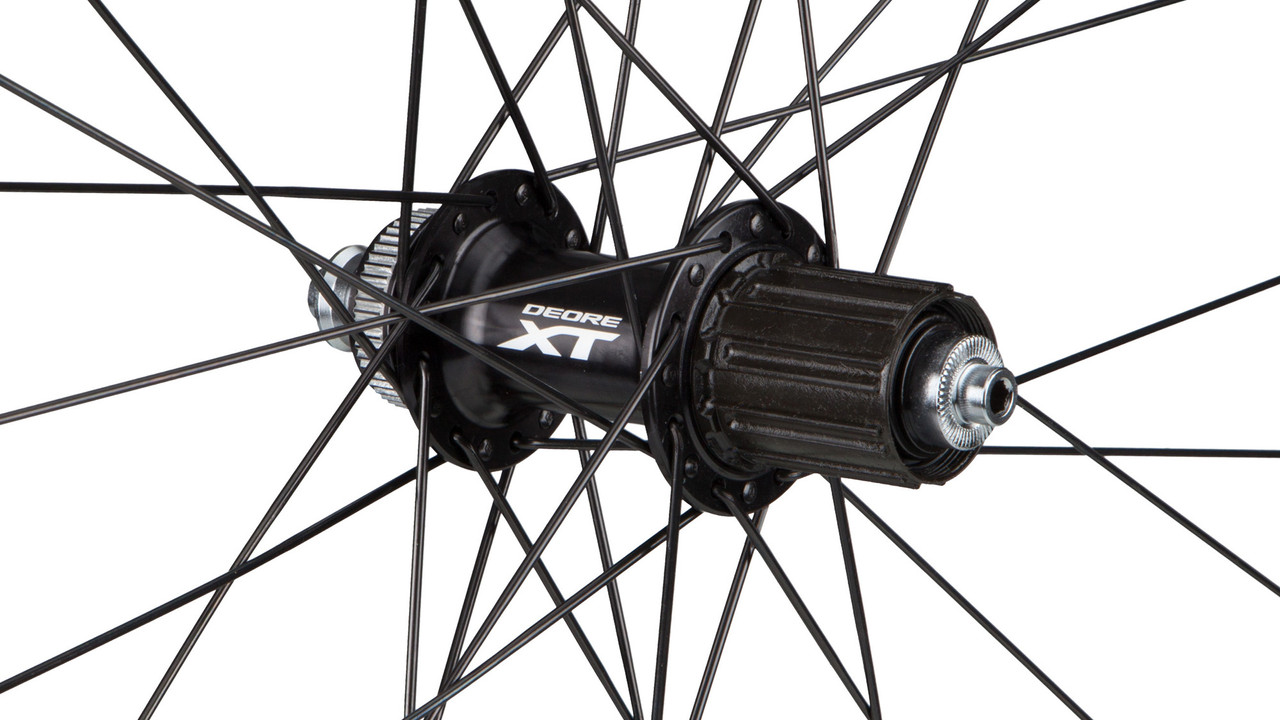

Technical Information - Rear Hub:

Type:

Shimano Deore XT FH-M8000

Over Locknut Dimension:

10 x 135 mm quick release

Bearings:

cup & cone

Body Material:

aluminium

Freehub Body Material:

steel

Freehub Body:

Quick Engagement (36 points/360°)

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

DT Swiss Competition / double butted (2.0-1.8-2.0)

Spoke Size:

292 mm/294 mm (front l/r), 294 mm/292 mm (rear l/r)

Spoke Material:

stainless steel

Nipple Type:

DT Swiss

Nipple Size:

12 mm (length)

Nipple Material:

brass

Approved For:

Weight Limit (Rim):

130 kg system weight (rider + bike + gear)

Features:

• Pin Joint
• single eyelets
• maximum spoke tension 1200 N
• high quality seals
• anodised hubs
• aluminium axles
• double butted technology

Colour Index:

black:

• Rim: black
• Hub: black
• Spokes: black
• Nipples: silver

Models:

28" front 9x100:

Manufacturer Number:

56238-2-10027

28" rear 10x135:

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Manufacturer Number:

56238-2-10026

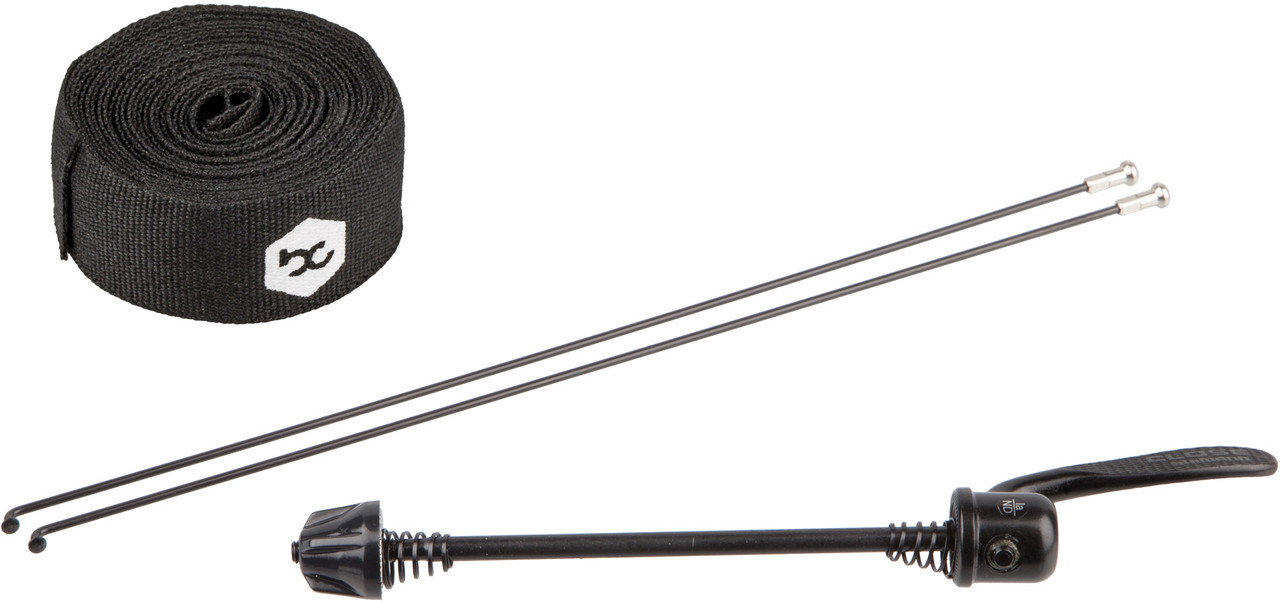

Contents:

• 1 x bc basic Urban XT Heavy Duty Disc wheel (front or rear, laced and trued)
• 1 x Shimano quick release
• 1 x roll bc rim tape
• 2 x spare spokes with nipples
