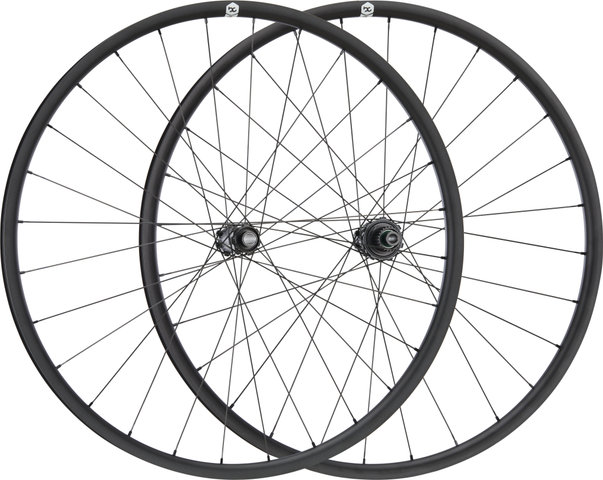

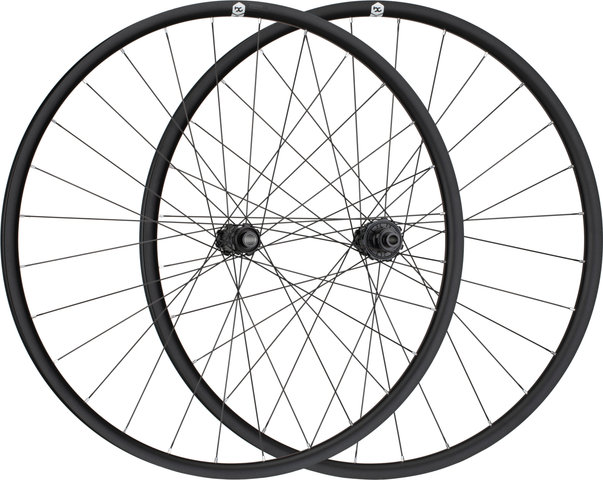

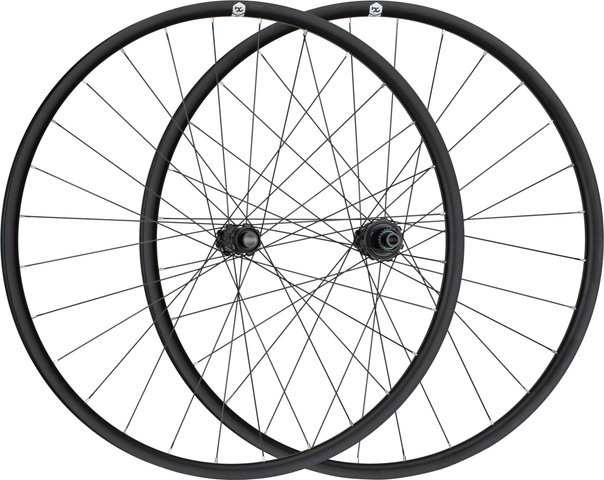

bc original Loamer MK2 Center Lock Disc 29" Boost Wheelset

The Loamer MK2 29" MTB Wheelset by bc original - Resilient, agile, with new hubs

We have equipped the bc original 29" Loamer MK2 Center Lock Disc wheelset with upgraded Boost hubs. It's now also available in a version with a Shimano Micro Spline freehub and is approved for a higher rider weight limit. A 3-pawl system is used on the rear wheel, which has the advantage of greater load capacity compared to ratchets. Otherwise, the Loamer MK2 is just as up to the task as its predecessor, delivering an especially high level of reliability and durability - and at an impressive overall weight. Nothing was left to chance in creating this wheelset: The components were precisely matched to one another, the wheels were laced by hand in Germany and extensive tests were performed to guarantee a long service life and exceptional reliability.

In recent years, MTB wheels and tyres have become larger and heavier, resulting in a slower ride. We at bc want to counteract this development with the Loamer. The light and stable wheels make your MTB agile and manoeuvrable again, and at a very fair price! Thanks to the special rim design, however, stability has not been sacrificed in order to achieve a low weight. The wheelset has been extensively tested under the toughest conditions. Whether it's on rough trails through Canada or on the endless singletracks through the Himalayas - this wheelset knows how to impress. Because the Loamer feels at home on almost any surface and thus offers a very wide range of applications. From XC to Enduro it is your reliable partner. We can proudly say that we have succeeded in offering a very high quality wheel at a revolutionary price.

Thanks to its simple and discreet design, the Loamer also fits any bike. Whether Cube, Specialized or Scott, off the rack or a custom build - this bc original wheelset is a simple and inexpensive upgrade for every mountain bike.

What does Loamer mean?
In mountain biking, " loam" refers to fresh, loose forest soil, which is the equivalent to powder in winter sports. Fresh loam tracks are often also called Loamer and offer mountain bikers an extra bit of grip and always leave a wide smiling face behind. That's exactly what the Loamer wheelset by bc original does - have fun!

Note:

Due to the 15 mm axle, you need an external toothed lockring to mount the front brake rotor. Do you still have old 6-bolt brake rotors? No problem, thanks to the Center Lock adapter you can continue to use your old brake rotors.

Specifications:

Application:

Cross Country, All Mountain, Enduro

Wheel Size:

29"

Tyre Type:

clincher tyre

Number of Spokes:

28

Brake Type:

Center Lock Disc

Wheel Standard:

Boost

Tubeless System:

Tubeless Ready

Technical Information - Rim:

Type:

bc original Loamer LRS

Rim Flange:

hookless

Dimensions (ETRTO):

28-622

Inner Width:

28 mm

Outer Width:

31 mm

Depth:

20 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

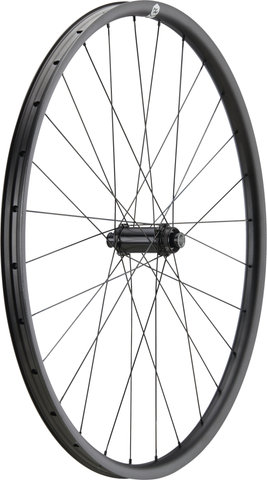

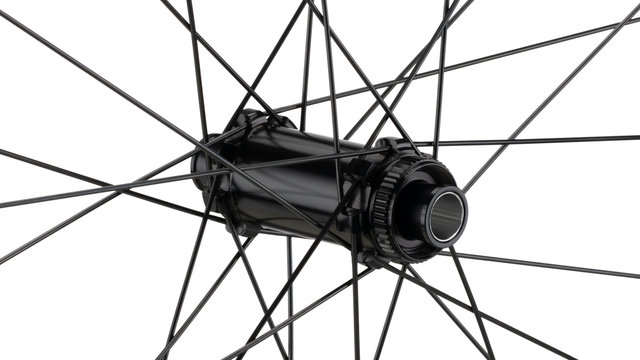

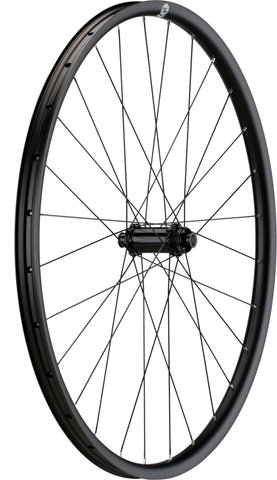

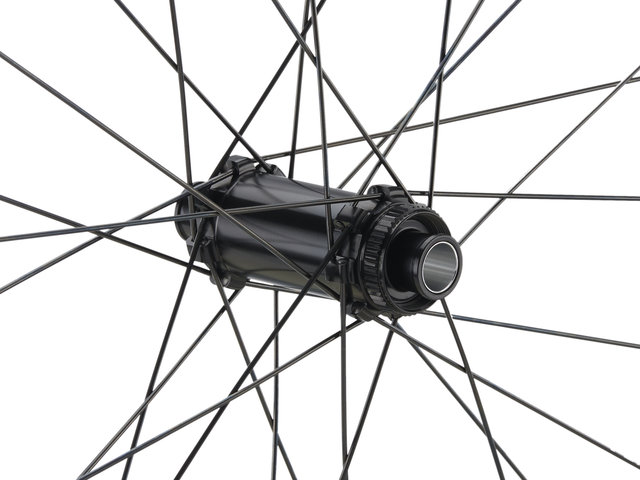

Technical Information - Front Hub:

Type:

bc original Loamer MK2 Front

Over Locknut Dimension:

15 x 110 mm thru-axle

Body Material:

aluminium

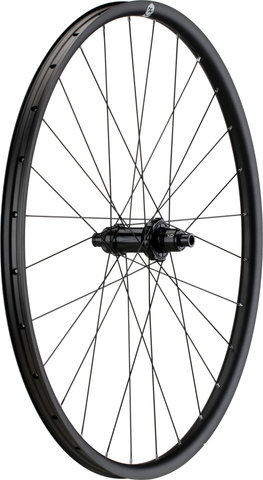

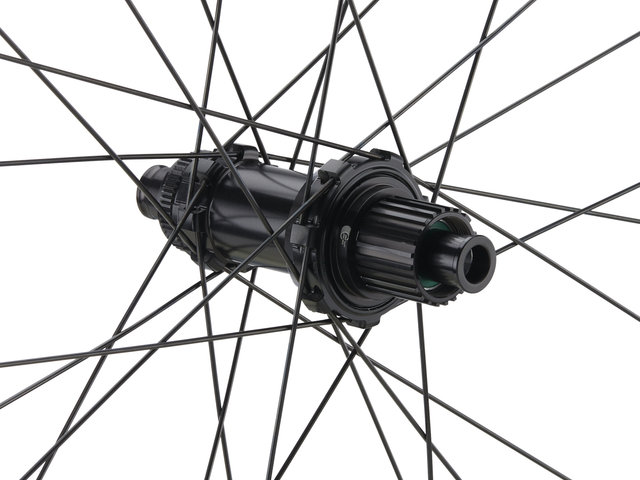

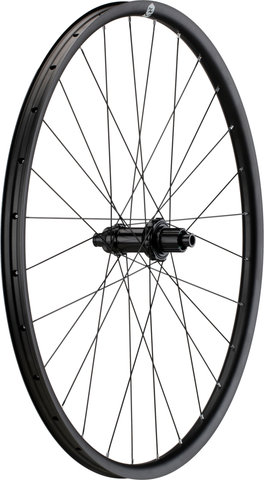

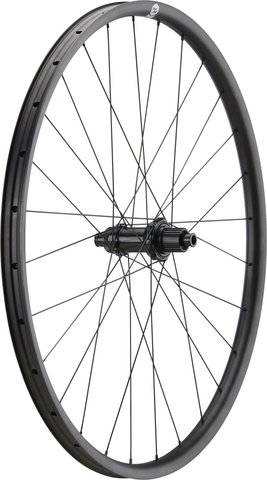

Technical Information - Rear Hub:

Type:

bc original Loamer MK2 Rear

Over Locknut Dimension:

12 x 148 mm thru-axle

Body Material:

aluminium

Freehub Body Material:

aluminium

Freehub Body:

3 pawls, 36 tooth pitch

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

Sapim Race 1.8 / straight pull / double butted (2.0-1.8-2.0)

Spoke Size:

304 mm

Spoke Material:

stainless steel

Nipple Type:

Sapim double square polyax

Nipple Size:

14 mm (length)

Nipple Material:

aluminium

Approved For:

Weight Limit:

120 kg rider weight

Air Pressure (max.):

3.1 bars (45 psi)

Recommended Tyre Width:

1.9" - 2.5"

Spoke Tension (max.):

1200 N

Features:

• upgraded hubs
• extremely durable rim design
• reinforced nipple bed
• special washers
• sleek decals and a clean look
• freehub body as spare part and for conversion to other freehub standards available separately

Technology:

MG-Washer
The nipple holes, typically the weak points on aluminium or carbon rims, are reinforced on this particular rim with an MG washer. This is the solution that uses the least amount of material, leaving virtually no impact from weight. The MG-Washer is concave on both sides. This means that it can be installed in both directions, and the contact surface on the rim side moves away from the nipple hole of the rim, thus providing additional relief. Another advantage is the even friction between the nipple and washer, which prevents the nipple from " seizing" .

Rounded Rim Profile
The rounded rim profile has flared rim flanges with optimised flange height and wall thickness. The wall thickness on the rim flange has been increased, in the side area reduced. The flared rim flanges shorten the distance between left and right rim flange, which saves material and weight. The tyre can also take on a rounder shape, improving comfort and cornering grip.

Colour Info:

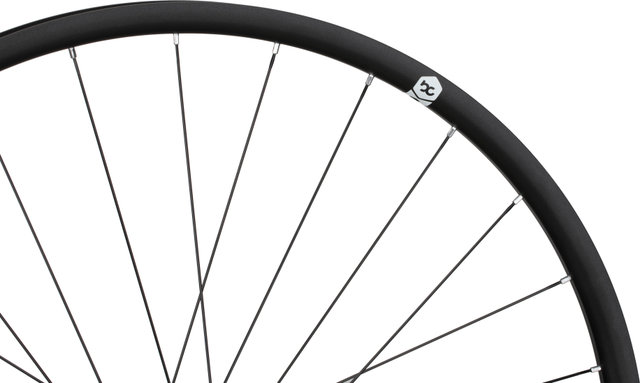

black:

• Rims: black with grey decals
• Hubs: black
• Spokes: black
• Nipples: silver

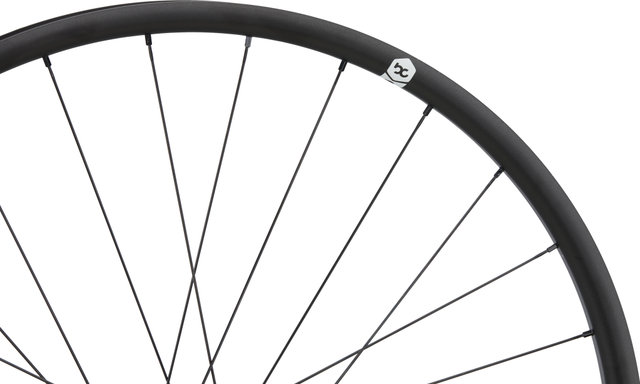

stealth:

• Rims: black with grey decals
• Hubs: black
• Spokes: black
• Nipples: black

Models:

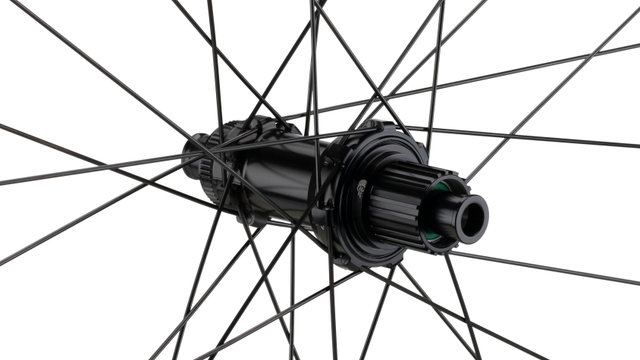

29" set (front 15x110 Boost + rear 12x148 Boost) Shimano:

Freehub:

Shimano MTB

Gearing:

8-/9-/10-/11-speed

Manufacturer Number:

80079-2-8837 (black), 80079-1289-8837 (stealth)

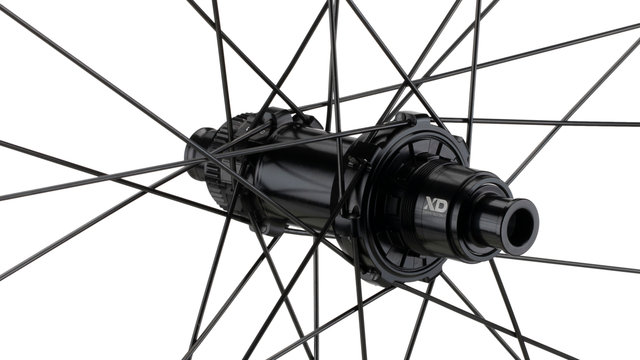

29" set (front 15x110 Boost + rear 12x148 Boost) SRAM XD:

Freehub:

SRAM XD

Gearing:

11-/12-speed

Manufacturer Number:

80079-2-8838 (black), 80079-1289-8838 (stealth)

29" set (front 15x110 Boost + rear 12x148 Boost) Shimano Micro Spline:

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Number:

80079-2-12084 (black), 80079-1289-12084 (stealth)

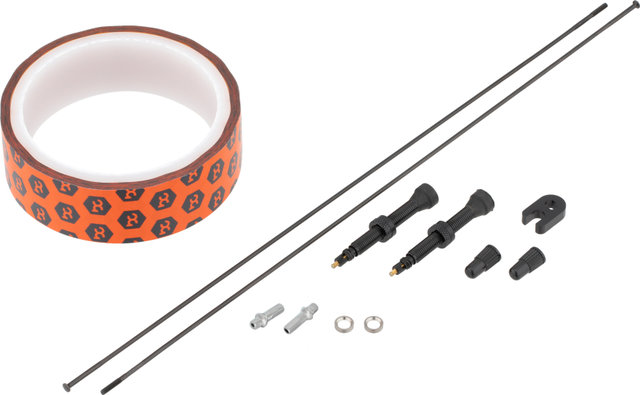

Contents:

• 1 x bc original Loamer MK2 wheelset (front & rear)
• 2 x bc basic tubeless valves
• 1 x rolls bc basic rim tape
• 2 x 304 mm spare spokes
• 2 x spare nipples
• 2 x spare washers

Order Together:

Optional accessories:

• spare bearing
