bc original RAVeL 28" Gravel Center Lock Disc Wheelset

bc original RAVeL 28" Gravel wheelset: Reliable, fast and light

Are you looking for a lightweight yet durable wheelset? The RAVeL with center lock disc brake from bc original is just the one for you. This wheel was developed specifically to meet the demands of gravel biking. The heart of its strength is in its rim: a special aluminium compound and a matching rim design make for an extremely stable wheel with a remarkably low weight. RAVeLs are hand-laced in the charming city of Maastricht, The Netherlands, a stone's throw from our German headquarters.

The challenge in creating a good gravel wheelset lies in the inherently versatile nature of gravel biking. From fast road tours to long gravel paths, to playful descents on single tracks, a good gravel bike has to master it all, and its wheels have to be able to cope with a variety of landscapes. With this in mind, we took our time in testing the RAVeL extensively. On our own bikes and on test benches, these wheels had to prove that they could deliver-- we're proud to say they surpassed our every expectation with flying colours.

Sporting a discreet design, RAVeL wheels are suitable for any kind of gravel bike - OPEN, Specialized or Surly, off-the-rack or a custom build. They're a perfect match for our Flint Gravel Frame.

Specifications:

Application:

Gravel, Road, Cross Country

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24

Brake Type:

Center Lock Disc

Tubeless System: Tubeless Ready

Technical Information - Rim:

Type:

bc original RAVeL

Rim Flange:

with hook

Dimensions (ETRTO):

22-622

Inner Width:

22 mm

Outer Width:

25.6 mm

Depth:

24.5 mm

Valve Hole Diameter:

SV / Presta (6.5 mm)

Rim Material:

Aluminium

Technical Information - Front Hub:

Type:

bc original RAVeL Front

Over Locknut Dimension:

12 x 100 mm thru-axle

Body Material:

Aluminium

Technical Information - Rear Hub:

Type:

bc original RAVeL Rear

Over Locknut Dimension:

12 x 142 mm thru-axle

Body Material:

Aluminium

Freehub Body Material:

Aluminium

Freehub Body:

ratchet system w/ 20 teeth, 18° release angle

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

DT Swiss Aero Comp / straight pull / 1.2 x 1.2 mm

Spoke Size:

294 mm (front), 294 mm/292 mm (rear l/r)

Spoke Material:

stainless steel

Nipple Type:

DT Swiss

Nipple Size:

14 mm (length), 2.0 mm (diameter)

Nipple Material:

brass

Approved For:

Weight Limit:

115 kg total weight

Air Pressure (max.):

6.5 bar (94 psi) (Observe tyre pressure release)

Tyre Width:

25 mm - 60 mm

Spoke Tension (max.):

1200 N

Note:

The RAVeL wheelset must be used with center-lock rings with external teeth.

Features:

• durable rim design
• reinforced nipple bed
• special washers
• sleek decals and a clean look

Colour info:

black:

• Rim: black
• Hubs: black
• Spokes: black
• Nipples: black

Models:

28" set (front 12x100 + rear 12x142) Shimano:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-speed

Note:

Assembly of 8-/9-/10-speed cassettes and MTB 11-speed cassettes on a Shimano Road freehub bodies requires a 1.85 mm spacer (not included, sold separately)

Manufacturer Number:

79519-2-10438

Conversion Options:

To convert to SRAM XD, a XD freehub body is required.

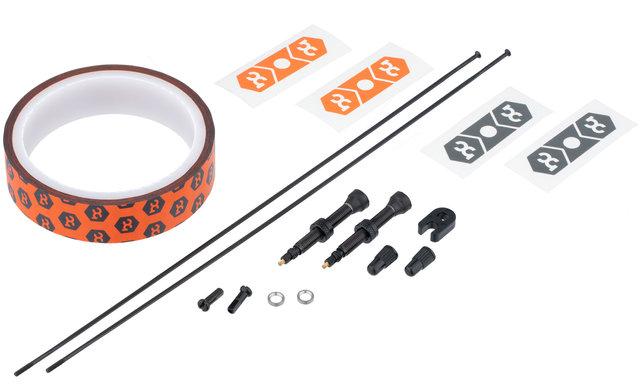

Contents:

• 1 x bc original RAVeL wheelset (front and rear)
• 2 x bc basic tubeless valves
• 1 x rolls of bc basic rim tape
• 1 x 292 mm spare spokes
• 1 x 294 mm spare spokes
• 2 x spare nipples
• 2 x spare washers
