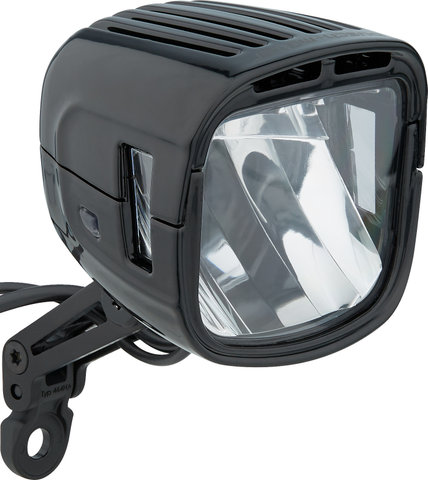

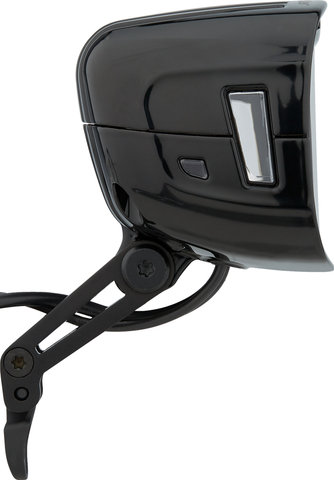

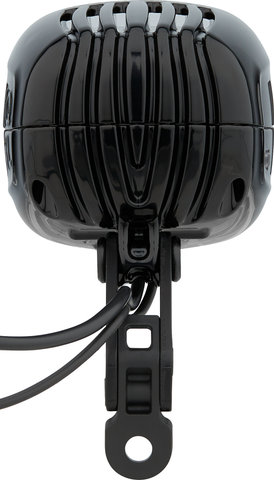

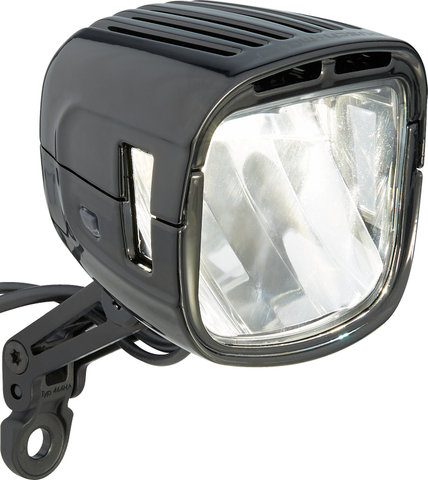

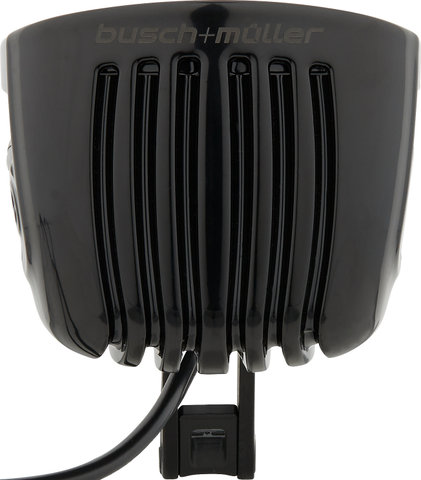

busch+müller IQ-XL High Beam LED Front Light for e-bikes - StVZO approved

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Specifications:

Type:

front light (white)

Mount:

fork crown

Light Source:

LED

Brightness:

300 lux

Power Source:

E-bike battery

Technical Information:

Illumination Modes:

Low beam, high beam, daytime running light

Voltage:

11 - 48 V

Cable Length:

150 cm (light connection), 65 cm (push-button)

Material:

aluminium

Standing Light:

yes (can be turned off)

Switch:

On / Off / Light mode / Flashing light

Approved For:

Street Use in Germany:

yes, for bicycles (according to §67 StVZO)

Check Number:

K~~1888

Compatibility:

• light connection with at least 16 W nominal power
• DC voltage from 11 - 48 V

Features:

• e-bike front light with powerful 300 lux luminosity
• high beam function with 250 lux
• sensor-controlled daytime running lights
• wide light field for clear vision in the dark
• colour-illuminated handlebar button for switching on, off and over

Manufacturer Numbers:

black:

169U65TS-01

matte black:

169MU65TS-01

Contents:

• 1 x busch + müller IQ-XL LED front light
• 1 x busch + müller high beam push button
• 1 x handlebar mount
• 2 x cables
• 2 x bolts
• 2 x assembly tool
