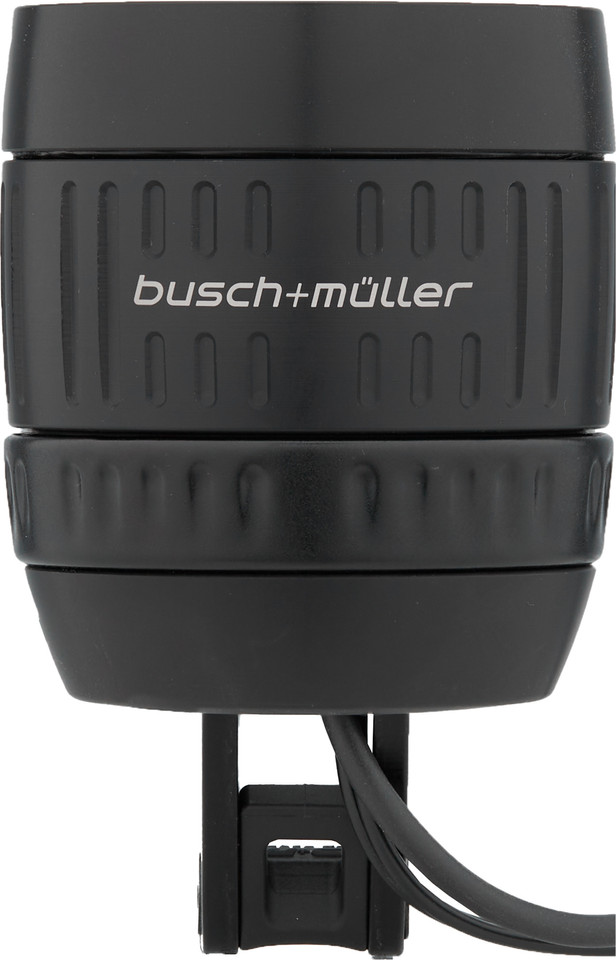

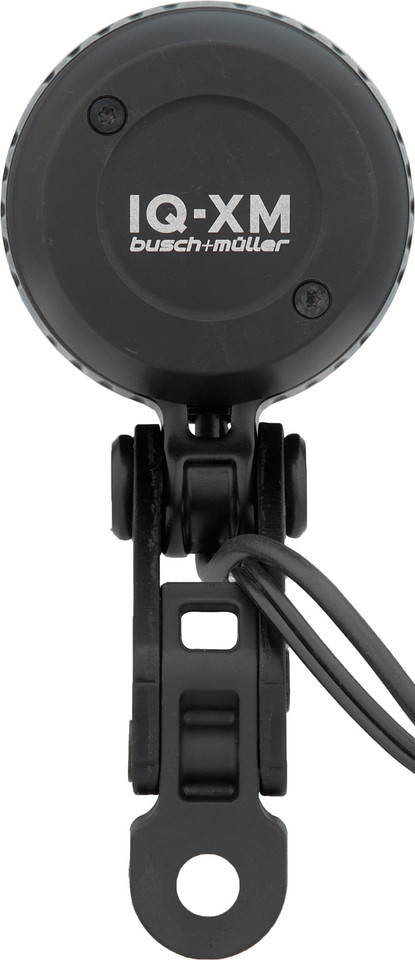

busch+müller IQ-XM E High Beam LED Front Light for E-bike - StVZO approved

Information regarding the return of batteries and electrical equipment:

Information on the return and disposal of used batteries and electrical equipment can be found here.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Type:

front light (white)

Mount:

fork crown

Light Source:

LED (6)

Brightness:

170 lux (high beam), 120 lux (low beam)

Power Source:

E-bike battery

Technical Information:

Illumination Modes:

Low beam, high beam, flashing light

Voltage:

9 - 48 V

Cable Length:

140 cm

Material:

aluminium

Switch:

On / Off / High beam / Flashing light

Approved For:

Street Use in Germany:

yes, for bicycles (according to §67 StVZO)

Check Number:

K~~1506

Features:

• e-bike front light made of aluminium with 170 lux high beam for fixed attachment on the fork crown
• 120 lux luminance in low beam mode
• uniform illumination, wide light field
• coloured illuminated button for switching between low beam, high beam and flashing light
• push-button mounting clamp for handlebars with 22 mm diameter or for directly mounting on Magura and Tektro brake levers
• mount option for a front reflector
• rated battery output for high beam: 16 W

Technology:

IQ Technology

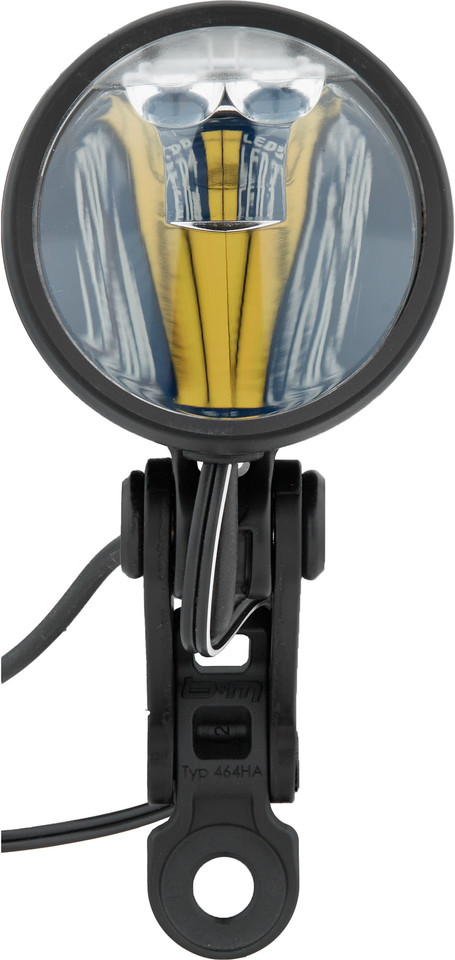

The light revolution from busch+müller: a special reflector with an optimised cooling system uses a high-performance LED as an indirect light source. The LED is not visible any longer in the middle of the reflector. This creates a light field that is extremely evenly illuminated and can be twice as wide as conventional technology. Light effects can be positioned more precisely - for example, the near field in front of the front wheel can be additionally brightened.

Manufacturer Number:

168RU65-01

Contents:

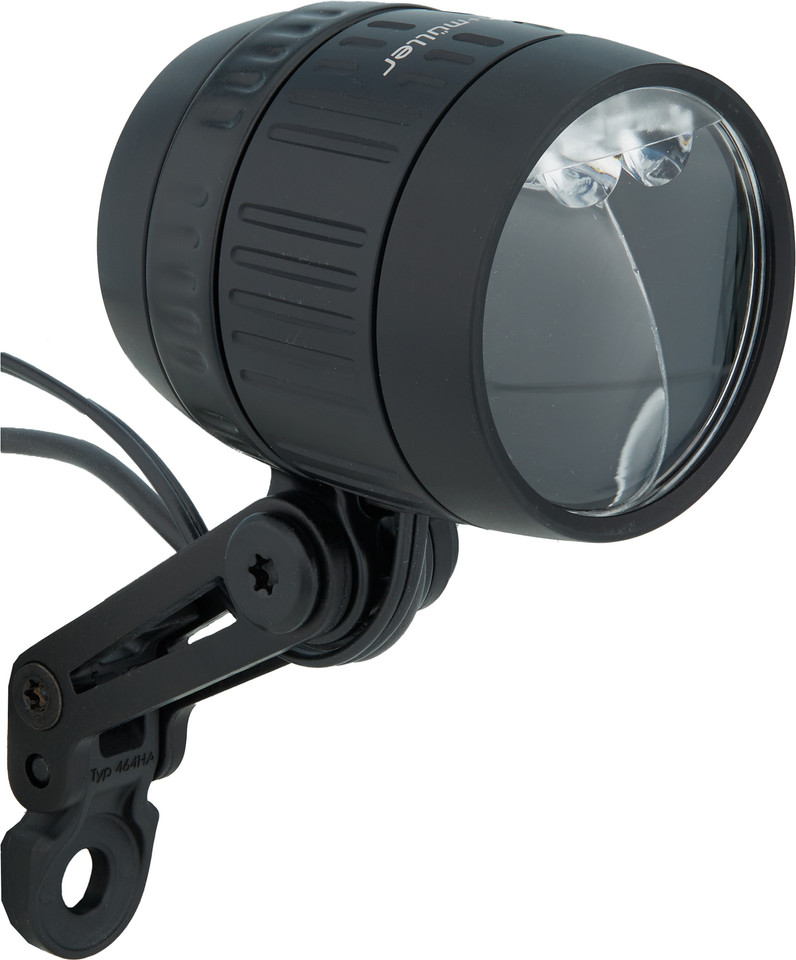

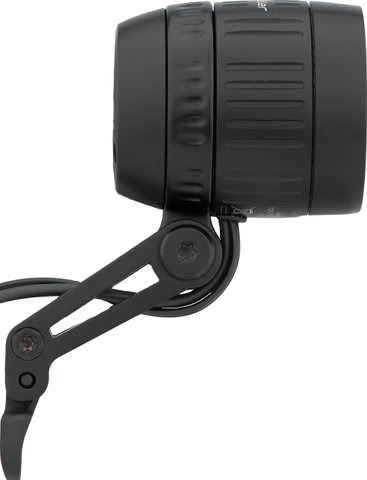

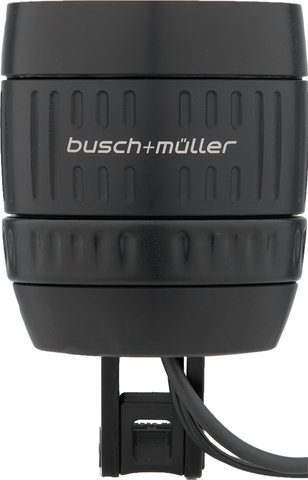

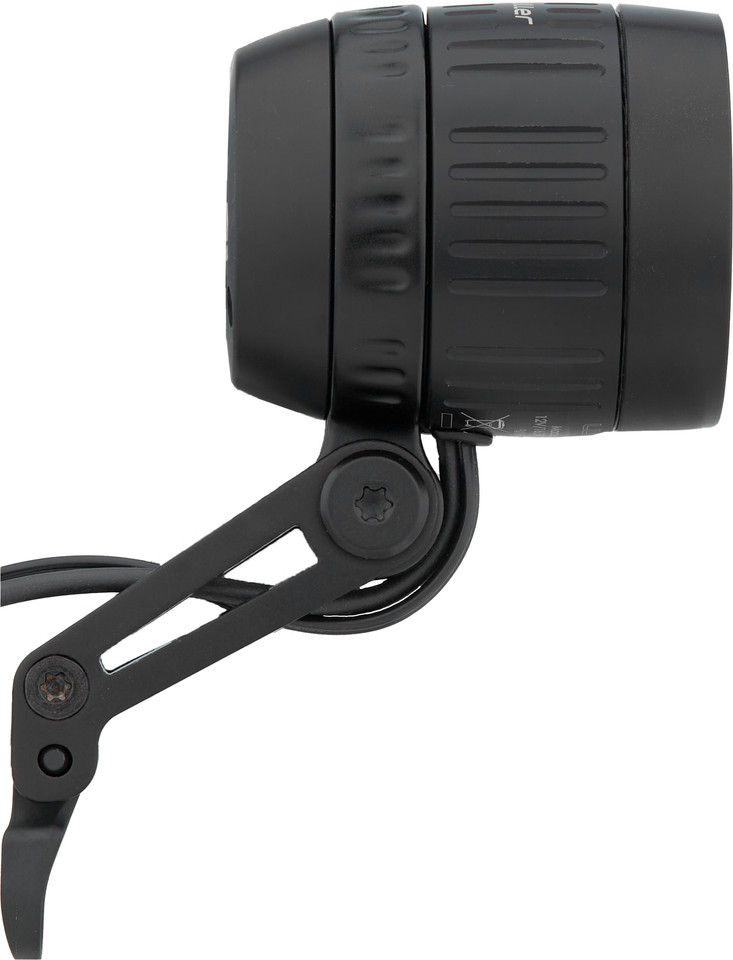

• 1 x busch+müller IQ-XM E High Beam front light

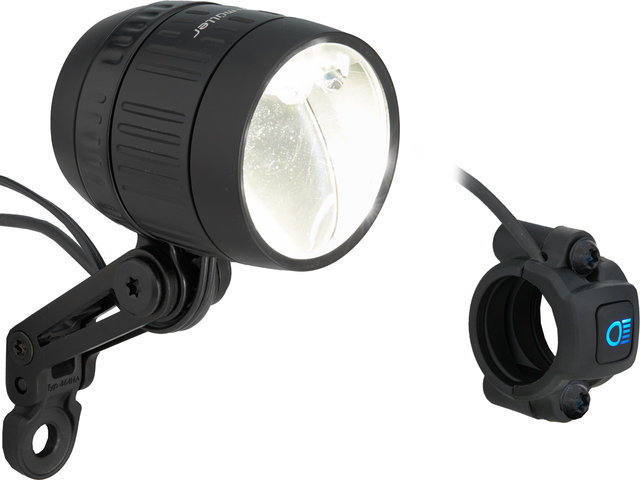

• 1 x high beam button with cable
• 1 x connection cable

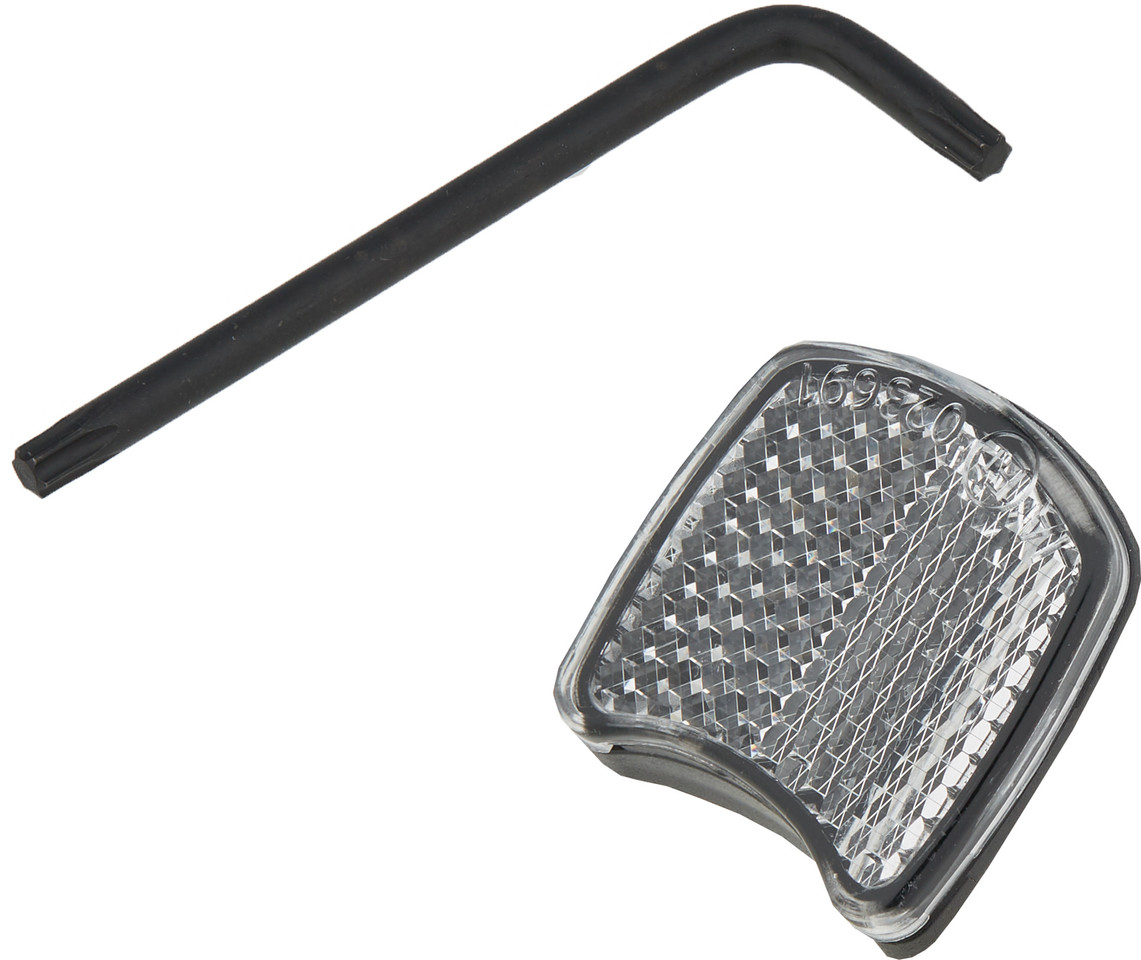

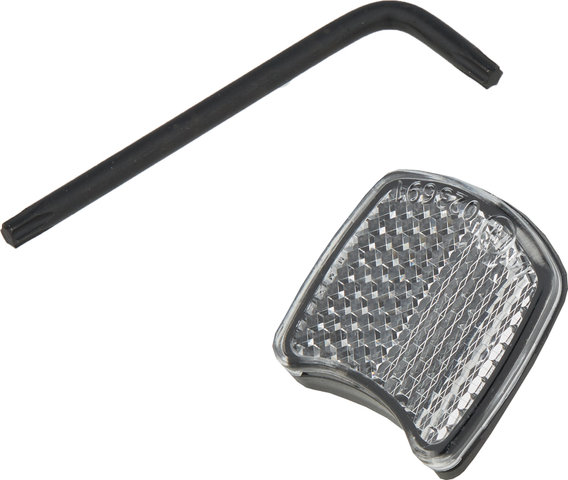

• 1 x Torx key
• 1 x front reflector
