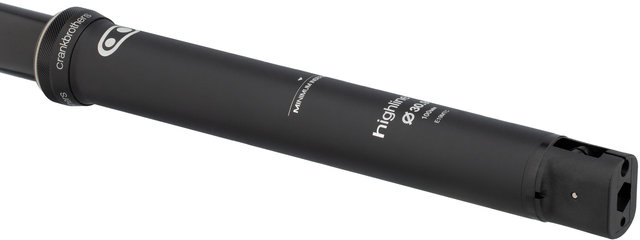

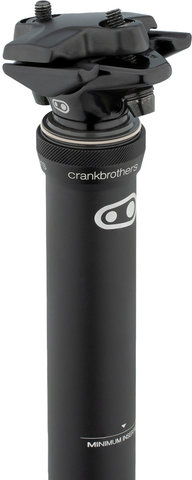

crankbrothers Highline 3 100 mm Dropper Post

crankbrothers Highline 3 100 mm dropper post - continuous and user-friendly

The crankbrothers Highline 3 dropper post with 100 mm of travel is suitable for Mountain bikes as well as Gravel or Cross bikes. It impresses with its continuous adjustment, smooth function, immediate readjustment and simple installation. Its core is a self-contained hydraulic gas-oil cartridge of the highest reliability. In addition, a Jagwire cable, Igus bearings and Trelleborg seals guarantee top quality. With its low overall height and clean internal cable routing, the Highline 3 will also delight enduro specialists, cross-country racers and gravel lovers.

Specifications:

Application:

Cyclocross, Gravel, Cross Country, Enduro, All Mountain

Travel:

100 mm

Diameter:

30.9 mm, 31.6 mm, 34.9 mm

Length:

370 mm

Setback:

0 mm

Technical Information:

Actuation:

mechanical handlebar remote

Cable Routing:

internal

Clamp:

2-bolt clamp

Compatible Saddle Rails:

7 x 7 mm (standard)

Material:

aluminium (7075-T6)

Approved For:

Insertion Depth (max.):

220 mm

Insertion Depth (min.):

100 mm

Features:

• lower insertion depth suitable for many frames
• premium seals by Trelleborg
• exclusive plain bearings by Igus
• Jagwire cable and cable housing
• encapsulated hydraulic cartridge (gas-oil mixture) of high industrial quality and reliability
• internal cable routing
• quick connection mechanism for easy cable installation
• linear actuator for quick return
• aluminium quill
• standard 2-bolt clamp
• 47 mm minimum construction height
• 241 mm maximum extension length
• 146 mm minimum extension length
• remote with especially flexible mount system available separately

Maintenance Intervals:
The maintenance intervals are dependent on riding style and geographical location.
After every ride: Wipe dust and dirt from the seatpost, focusing on the seal area and the tip of the coil spring. Check the seatpost for any damage.
Every 150-175 hours of riding time: Lubricate the internal components by unscrewing the collar, use coil-specific grease (never oil!) up to the sleeve under the collar and reassemble. Check screw connections for the specified torques.
450+ hours riding time: Check seatpost and replace internal components if necessary.

Models:

30.9 mm / 370 mm / SB 0 mm:

Diameter:

30.9 mm

Length:

370 mm

Setback:

0 mm

Manufacturer Number:

16370

31.6 mm / 370 mm / SB 0 mm:

Diameter:

31.6 mm

Length:

370 mm

Setback:

0 mm

Manufacturer Number:

16371

34.9 mm / 370 mm / SB 0 mm:

Diameter:

34.9 mm

Length:

370 mm

Setback:

0 mm

Manufacturer Number:

16469

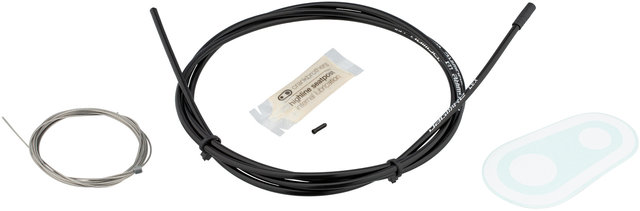

Contents:

• 1 x crankbrothers Highline 3 100 mm dropper post
• 1 x Jagwire cable
• 1 x Jagwire cable housing

Order Together:

The remote kit is required for use.
