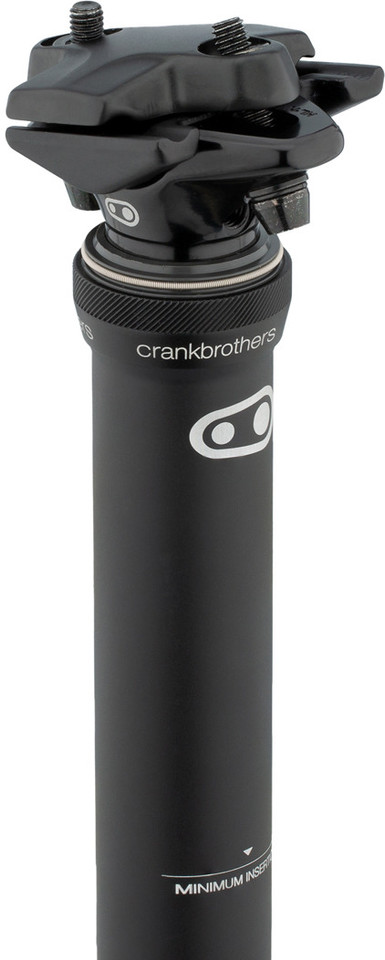

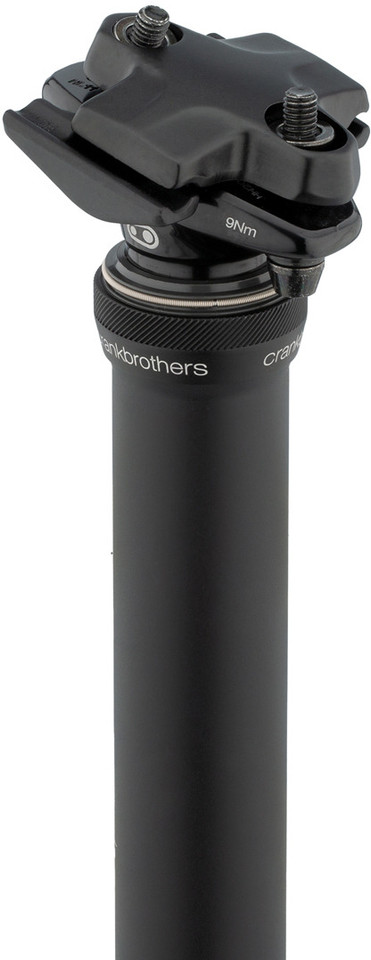

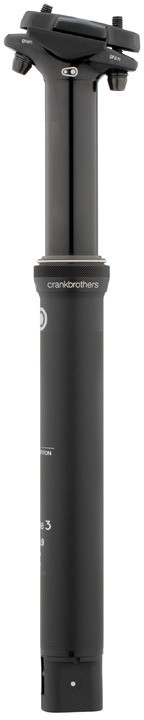

crankbrothers Highline 3 80 mm Dropper Post

The Highline 3 80 mm dropper post by crankbrothers - optimal for your Cross bike

The crankbrothers Highline 3 seatpost with 80 mm stroke is a dropper post for your gravel bike or your crosser. It is infinitely adjustable and impresses with its smooth operation, quick return to the starting position and easy installation. Its core is a self-contained hydraulic gas-oil cartridge of the highest reliability. The Jagwire cable, Igus bearings and Trelleborg seals stand for the best quality. With its low overall hieght and clean internal cable routing, the Highline 3 will soon accompany you on your off road adventures.

Specifications:

Application:

Cyclocross, Gravel

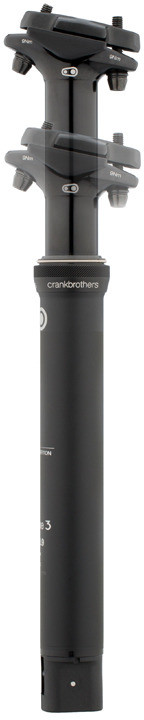

Travel:

80 mm

Diameter:

30.9 mm, 31.6 mm

Length:

380 mm

Setback:

0 mm

Technical Information:

Actuation:

mechanical handlebar remote

Cable Routing:

internal

Clamp:

2-bolt clamp

Compatible Saddle Rails:

7 x 7 mm (standard)

Material:

aluminium (7075-T6)

Approved For:

Insertion Depth (max.):

285 mm

Insertion Depth (min.):

100 mm

Features:

• lower insertion depth suitable for many frames
• premium seals by Trelleborg
• exclusive plain bearings by Igus
• Jagwire cable and cable housing
• encapsulated hydraulic cartridge (gas-oil mixture) of high industrial quality and reliability
• internal cable routing
• quick connection mechanism for easy cable installation
• linear actuator for quick return
• aluminium quill
• standard 2-bolt clamp
• 47 mm minimum construction height
• 283 mm maximum extension length
• 125 mm minimum extension length
• remote with especially flexible mount system available separately

Maintenance Intervals:
The maintenance intervals are dependent on riding style and geographical location.
After every ride: Wipe dust and dirt from the seatpost, focusing on the seal area and the tip of the coil spring. Check the seatpost for any damage.
Every 150-175 hours of riding time: Lubricate the internal components by unscrewing the collar, use coil-specific grease (never oil!) up to the sleeve under the collar and reassemble. Check screw connections for the specified torques.
450+ hours riding time: Check seatpost and replace internal components if necessary.

Models:

30.9 mm / 380 mm / SB 0 mm:

Diameter:

30.9 mm

Length:

380 mm

Setback:

0 mm

Manufacturer Number:

16478

31.6 mm / 380 mm / SB 0 mm:

Diameter:

31.6 mm

Length:

380 mm

Setback:

0 mm

Manufacturer Number:

16479

Contents:

• 1 x crankbrothers Highline 3 80 mm dropper post
• 1 x Jagwire cable
• 1 x Jagwire cable housing

Order Together:

The remote kit is required for use.
