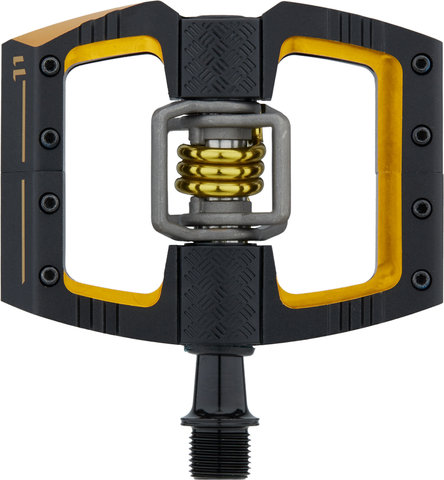

crankbrothers Mallet DH 11 Clipless Pedals

Pedals from the top performance league: the Mallet DH 11 by crankbrothers

The most successful downhill pedal is now available in a premium edition with titanium wings and double bevelled edges that minimise weight and maximise performance. The grooved body provides more grip when clicked out. Added to this are the " Traction Pads" : exchangeable rubber plates with which the shoe and pedal can be brought to an optimum fit. The number of pins - 8 per side - and the four-sided click-in mechanism have remained unchanged.
The Mallet DH 11 is designed and manufactured for all riders who want the best of the best and nothing less.

Specifications:

Application:

Downhill

Type:

clipless pedals with platform

Pedal System:

crankbrothers

Cleat Mount:

2-bolt

Technical Information:

Body Material:

aluminium (6061-T6)

Axle Material:

steel (scm435 CrMo)

Bearings:

Igus LL bushings (inner), Enduro cartdige (outer)

Release Angle:

15° or 20° (depending how the cleats are mounted)

Recommended Cleats:

crankbrothers Premium Cleats

Number of Pins per Pedal:

16

Pin Height:

8 mm

Pedal Centre to Crank Arm Distance:

57 mm

Features:

• level code 11 (= pro level)
• forged steel axle
• wings made of 6al / 4v titanium
• 300 stainless steel spring
• 57 mm Q-factor for more control on narrow trails
• large, concave platform for better hold
• " Traction Pads" optimise the connection between the sole and the pedal body
• grooved body for more grip when clicked out
• double bevelled edges reduce the risk of contact with stones
• premium bearing, double sealed
• adjustable float and release angle
• four-sided entry
• excellent self-cleaning
• 8 pins per side (replaceable)
• aluminium hexagonal end caps
• exclusive black-golden anodised colour
• no rider weight limit

Manufacturer Number:

black-gold:

16096

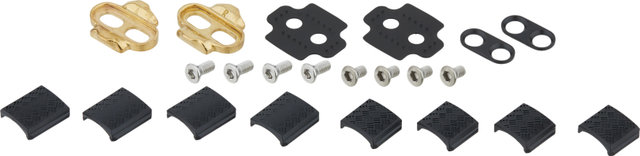

Contents:

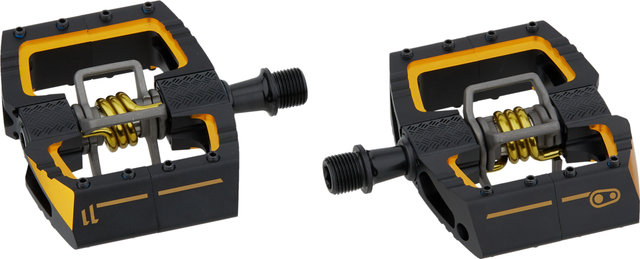

• 1 x pair crankbrothers Mallet DH 11 pedals
• 1 x pair crankbrothers Premium Cleats (brass)
