e*thirteen Helix Race espec Direct Mount Chainring for Bosch Gen4

The Helix Race e*spec chainring from e*thirteen with Direct Mount for e-bikes with Bosch Gen4 motor

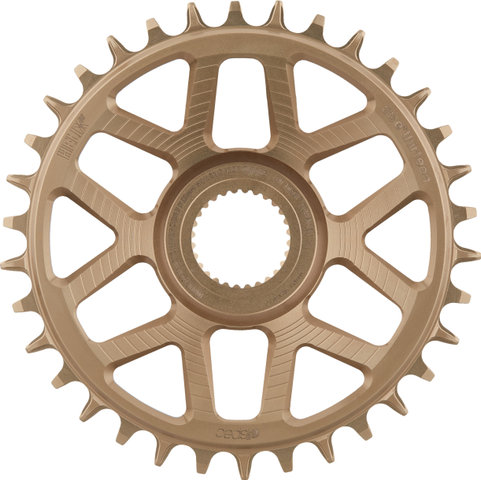

This e*thirteen Helix Race e*spec Direct Mount chainring is suitable for fourth-generation Bosch motors and is compatible with 11-speed and 12-speed drivetrains from e*thirteen, Shimano, SRAM or TRP in combination with the matching crank. It is made of forged 7075 aluminium, which makes it rigid and robust. Thanks to CNC manufacturing, the result is a lightweight chainring with visual highlights. The scope of delivery includes a cover to be mounted on the outside, which fits in perfectly and protects against dust ingress at the interface.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

All Mountain, Enduro

Mount:

Bosch Direct Mount

Teeth:

32 T, 34 T

Gearing:

1x11-speed, 1x12-speed

Technical Information:

Offset:

13 mm

Chainline:

53 mm

Material:

aluminium (7075)

Compatibility:

• Bosch Gen4 CX motor
• Bosch Performance Line SX motor
• e*thirteen Helix Race e*spec e-bike crank
• drivetrains from e*thirteen, Shimano, SRAM (including T-Type) or TRP

Features:

• chainring for e-bikes with fourth-generation Bosch motors
• lightweight, rigid and particularly durable
• excellent chain retention
• made of forged, CNC-machined aluminium
• M4 tooth design
• with matching dust cover
• chic design

Manufacturer Numbers:

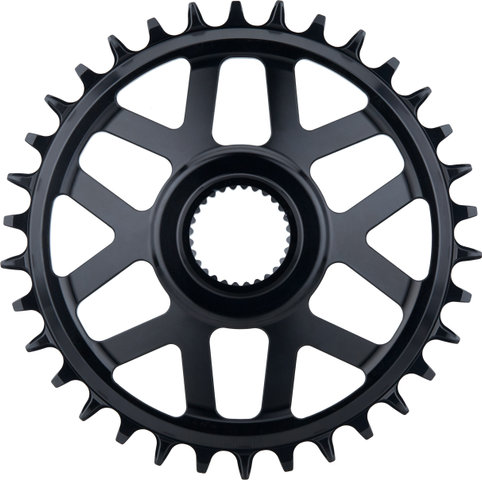

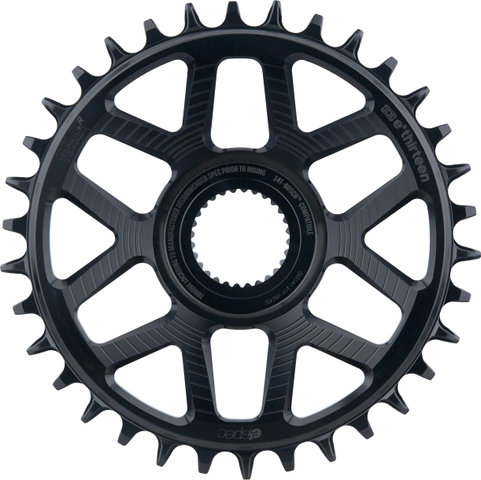

black / 32 tooth:

CR5ERA-100

black / 34 tooth:

CR5ERA-101

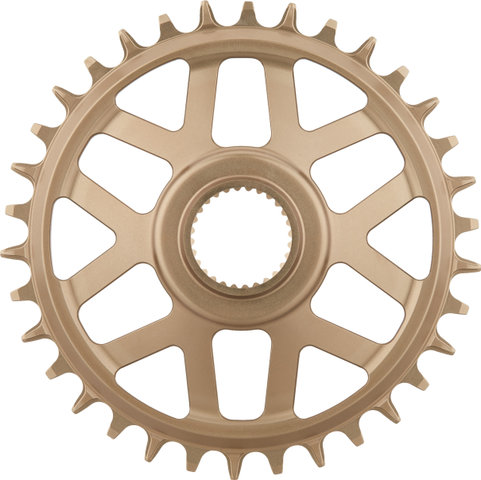

bronze / 32 tooth:

CR5ERA-102

bronze / 34 tooth:

CR5ERA-103

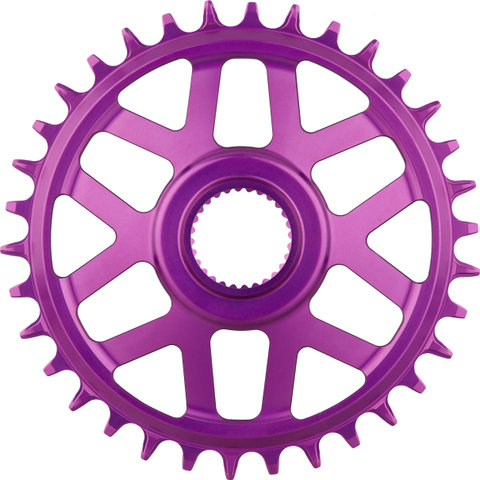

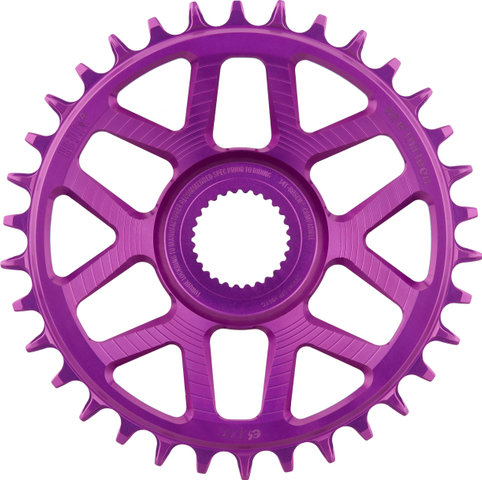

eggplant / 32 tooth:

CR5ERA-104

eggplant / 34 tooth:

CR5ERA-105

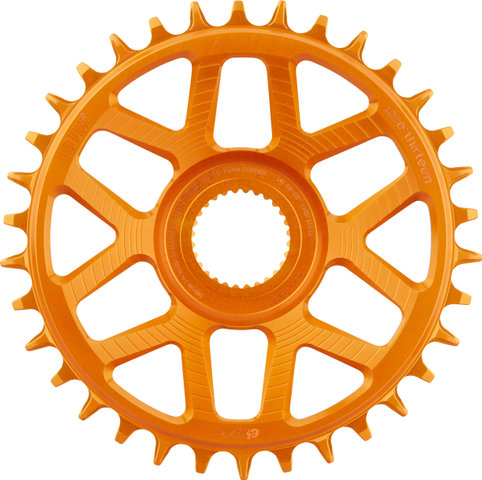

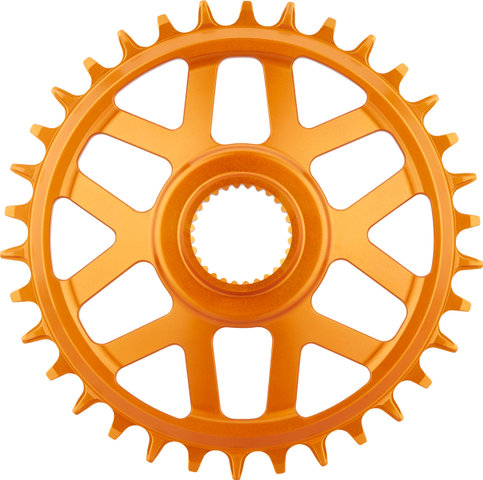

naranja / 32 tooth:

CR5ERA-106

naranja / 34 tooth:

CR5ERA-107

Contents:

• 1 x e*thirteen Helix Race e*spec Direct Mount chainring for Bosch Gen4
• 1 x e*thirteen dust cover
