e*thirteen XCX Race Carbon Gravel 68 mm Crank
Item number: 72652

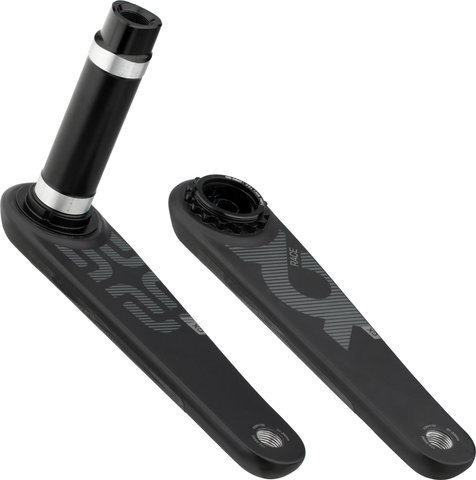

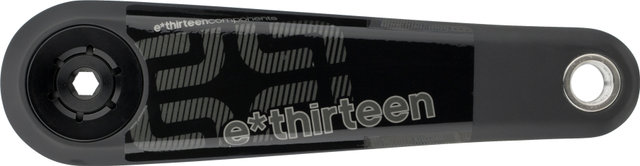

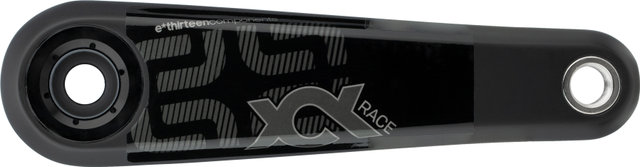

The XCX Race Carbon Gravel 68 mm Crank by e*thirteen - Strong and ultralight
The XCX Race Carbon Gravel 68 mm crank from e*thirteen relies on an ultra-light construction and remains uncompromisingly strong. The axle is on the non-drive side, which makes it easier for you to adjust the chain and maintain the drivetrain.
Specifications:
- Application:
- Gravel, Cross Country
- Compatibility:
- 1-speed
- Chainring Mount:
- e*thirteen Direct Mount
Technical Information:
- Series:
- XCX Race
- Crank Arm Material:
- Carbon
- Axle Material:
- aluminium
- Crank Arm Length:
- 170.0 mm, 172.5 mm, 175.0 mm
- Chainline:
- 47 mm
- Q-Factor:
- 152.6 mm
- Axle Diameter:
- 30 mm
- Compatible BSA Shell Width:
- 68 mm
Features:
- lightweight
- with self-extractor
- 8 mm Allen key is sufficient for disassembly
- robust APS Adjuster for easy adjustment of bearing play
- P3 Connect crank connection
- direct mount chainrings and bottom bracket sold separately
Manufacturer Numbers:
- 170.0 mm:
- CS4XRA-100
- 172.5 mm:
- CS4XRA-101
- 175.0 mm:
- CS4XRA-102

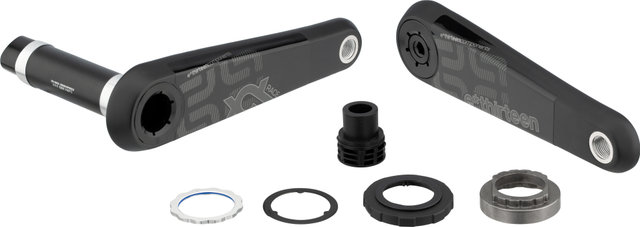

Contents:
- 1 x e*thirteen XCX Race crankset
- incl. installation tool
- 1 x APS adjuster
- not incl. bottom bracket
- not incl. chainring
