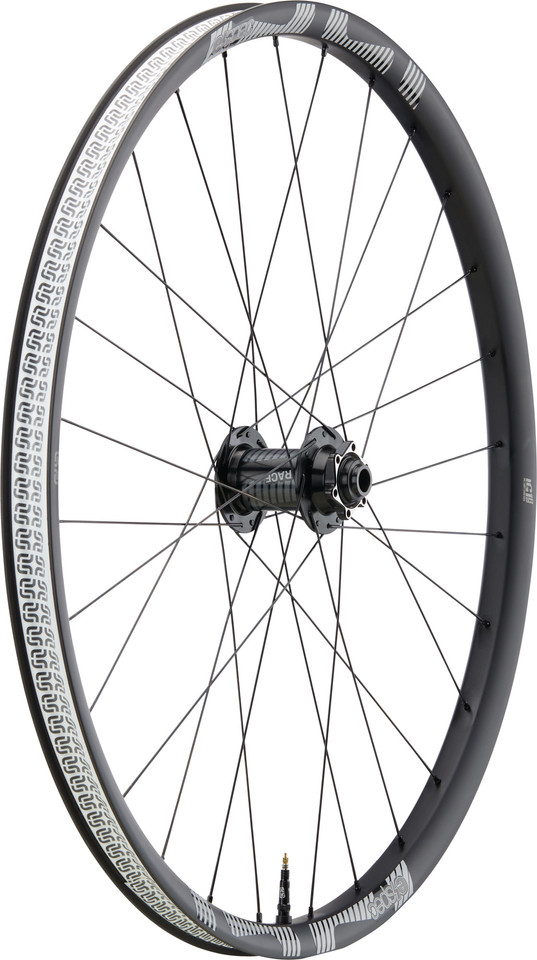

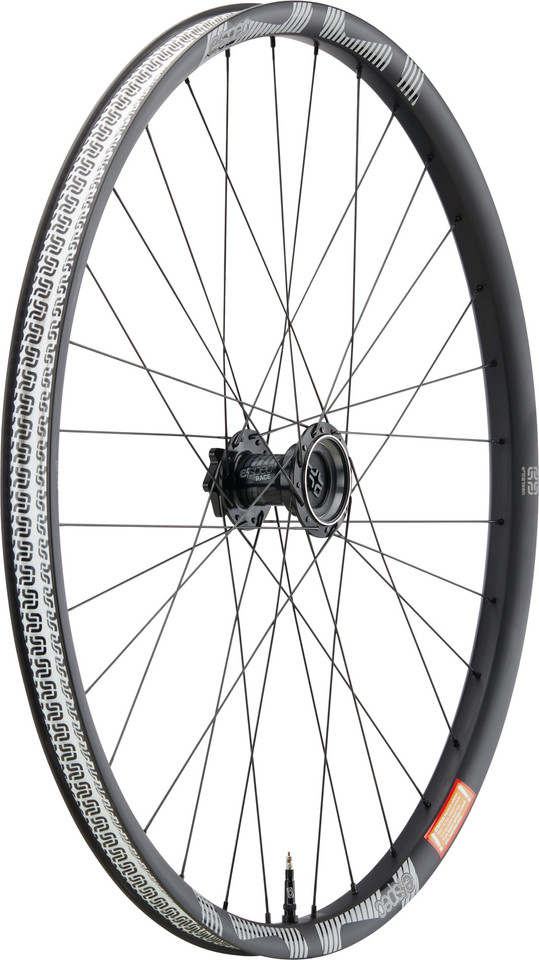

e*thirteen espec Race Carbon Enduro Boost 29" Wheelset

The espec Race Carbon Boost wheelset by e*thirteen is a set of stable, lightweight competition wheels for your 29" enduro bike. They are also suitable for e-bikes.

Guidelines for Replacing E-bike Components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked e-bikes/pedelecs with pedal assistance.

Specifications:

Application:

Enduro

Wheel Size:

29"

Tyre Type:

clincher tyre

Number of Spokes:

28 (front), 32 (rear)

Brake Type:

6-bolt disc

Wheel Standard:

Boost

Tubeless System:

Tubeless Ready

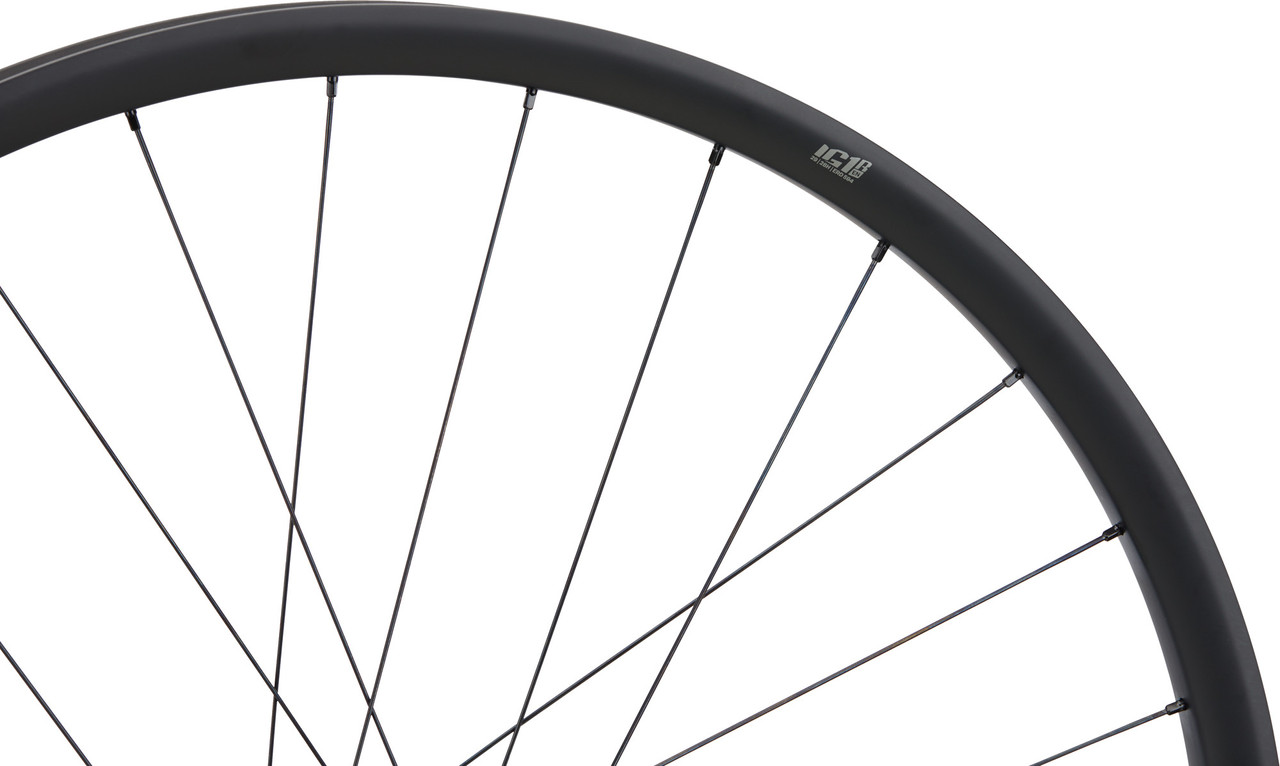

Technical Information - Rim:

Type:

espec Race

Rim Flange:

hookless

Dimensions (ETRTO):

30-622

Inner Width:

30 mm

Outer Width:

37 mm

Depth:

23 mm

ERD:

553 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

Carbon

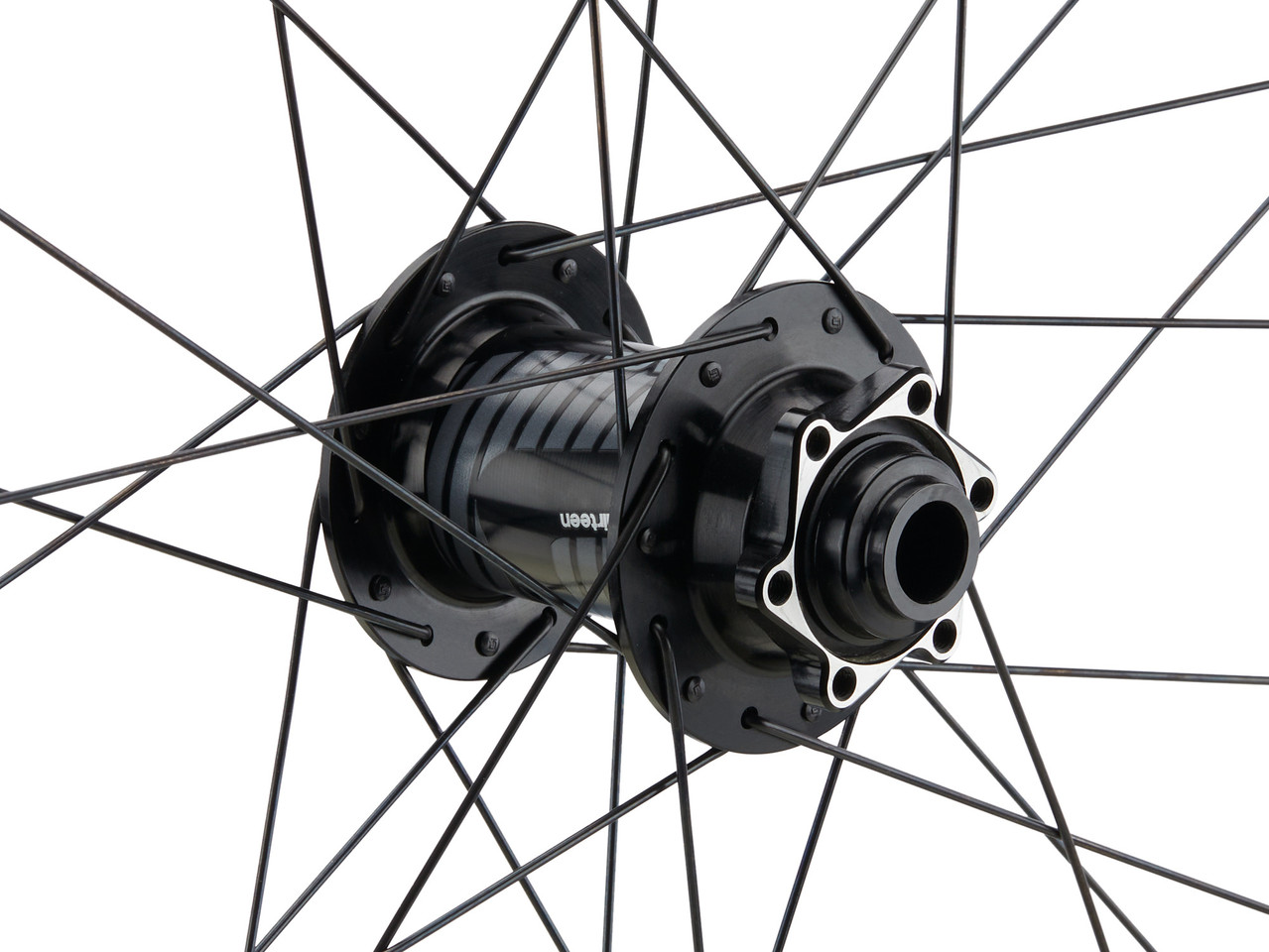

Technical Information - Front Hub:

Over Locknut Dimension:

15 x 110 mm thru-axle

Body Material:

aluminium

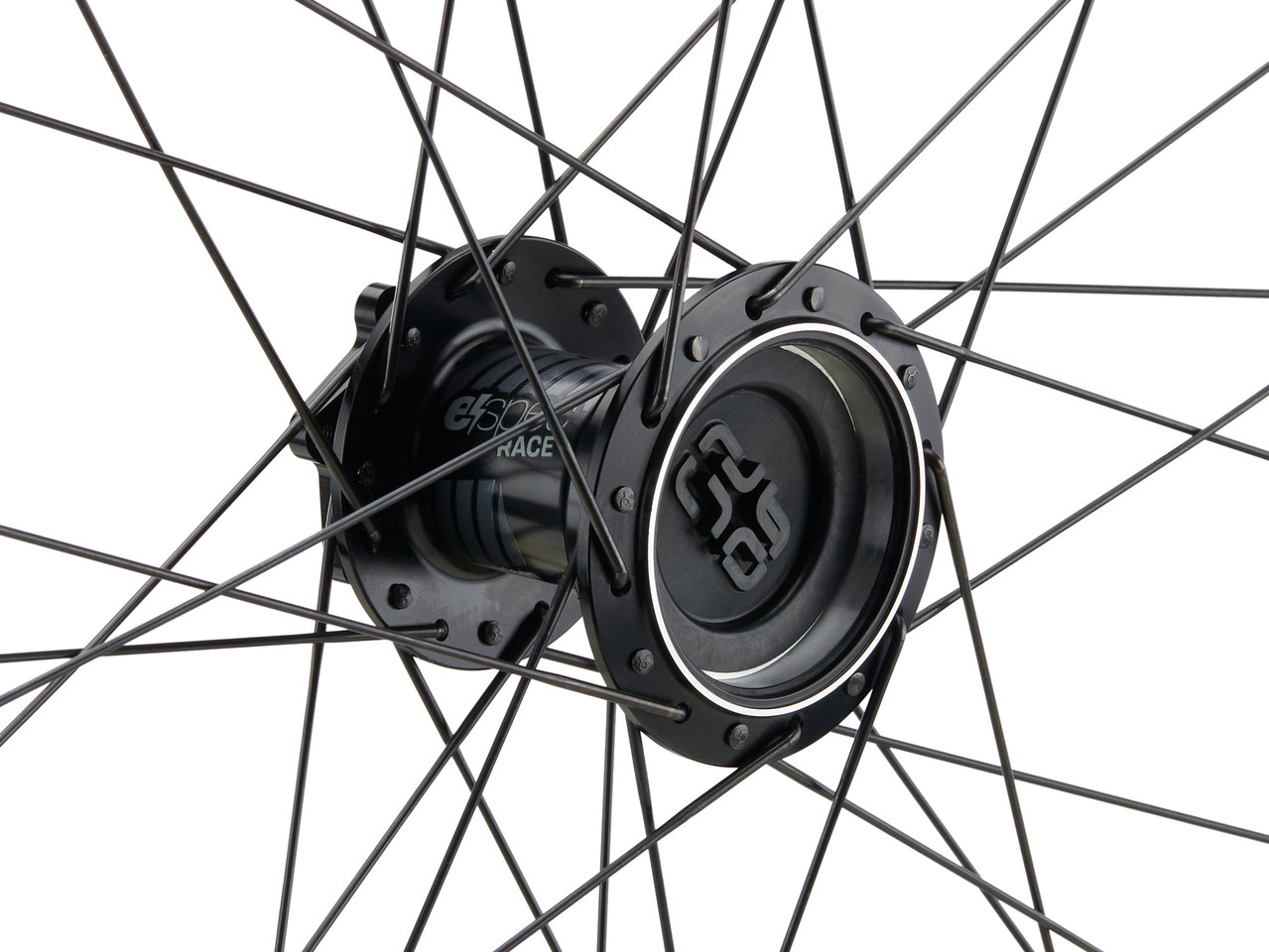

Technical Information - Rear Hub:

Over Locknut Dimension:

12 x 148 mm thru-axle

Bearings:

triple sealed

Body Material:

aluminium

Freehub Body:

pawls

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

J-Bend, triple-butted

Spoke Size:

292 mm/294 mm (front l/r), 289 mm/286 mm (rear l/r)

Spoke Material:

steel

Nipple Material:

aluminium

Colour Info:

black-silver:

• Rims: black with silver decals
• Hubs: black with silver decals
• Spokes: black
• Nipples: black

Models:

29" set (front 15x110 Boost + rear 12x148 Boost) SRAM XD:

Freehub:

SRAM XD

Gearing:

11-/12-speed

Manufacturer Numbers:

WH4LRA-102 + WH4LRA-103

29" set (front 15x110 Boost + rear 12x148 Boost) Shimano Micro Spline:

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Numbers:

WH4LRA-102 + WH4LRA-105

Contents:

• 1 x e*thirteen espec Race Carbon Enduro Boost wheelset (front and rear wheel)
• 6 x spokes
• 6 x nipples
• 6 x nipple washers
