tubus Logo Classic Rack
Item number: 74216
The Logo Classic Rack by tubus - Strong on tours
The Logo Classic rack by tubus offers plenty of space for your belongings with two luggage levels, making it ideal for bike tours. This pannier rack is narrow at the top, but there is enough space for a tent, sleeping mat and sleeping bag. Bags can be attached to the lower cargo rails. This shifts the centre of gravity further down and improves stability.
Specifications:
- Application:
- City & Touring
- Upper Mount:
- rear triangle braze-ons
- Lower Mount:
- stays mount at dropouts
- Wheel Size:
- 26" , 28" , 29"
- Rail Diameter:
- 10 mm
- Payload (max.):
- 26 kg
Technical Information:
- Material:
- steel (CrMo)
- Tyre Width (max.):
- 60 mm
- Rear Light Hole Distance:
- 50 mm
Features:
- with bag stopper on the lower stays
- well suited for short frames
Note from the manufacturer:
The 29" version is equipped with a cable guide for a rear light cable. For this purpose, there is an opening at the top, on the inside of the lower strut.Models:
26" -28"- Wheel Size:
- 26" , 28"
- Manufacturer Number:
- 80001 (black), 80502 (silver)
29"
- Wheel Size:
- 29"
- Manufacturer Number:
- 82001 (black)

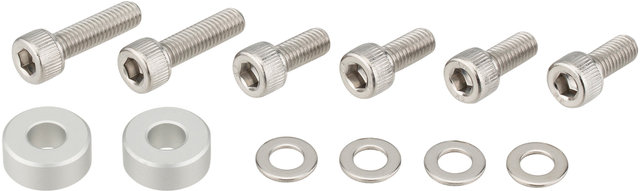

Contents:
- 1 x tubus Logo Classic rack
- 2 x tube end caps, 8 mm
- 6 x 16 K M5 x 12 mm bolts
- 4 x 5.6 x 12.7 mm washers
- 2 x retaining plates
- 2 x round stays, 240 mm
- 2 x clamp bolts, M5 x 16 mm
- 2 x locknuts, M5
- 4 x 5.3 x 10 mm washers
- 2 x 16 K M5 x 18 mm bolts
- 2 x 14 x 6 mm spacers
- 4 x tube end plugs, 10 x 0.7 mm
