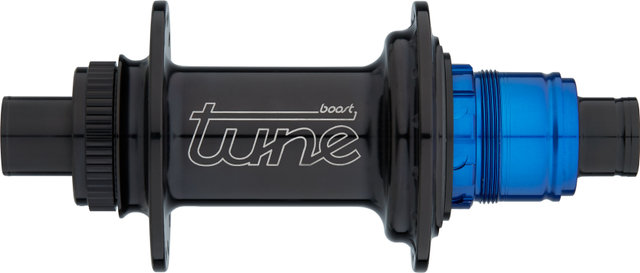

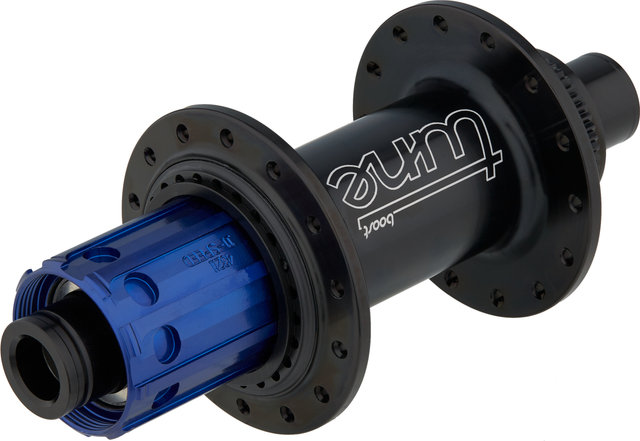

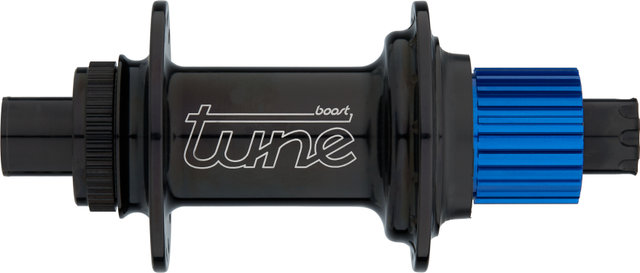

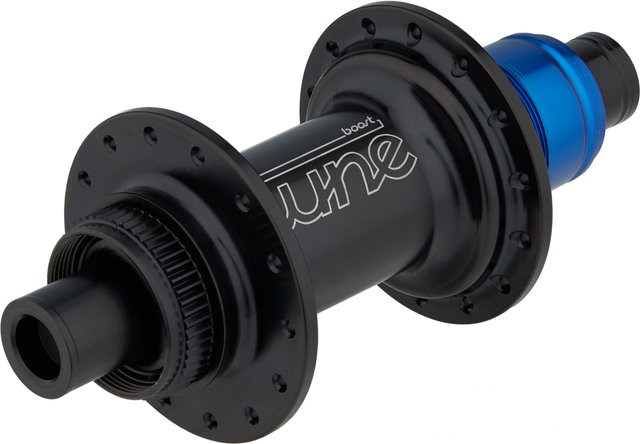

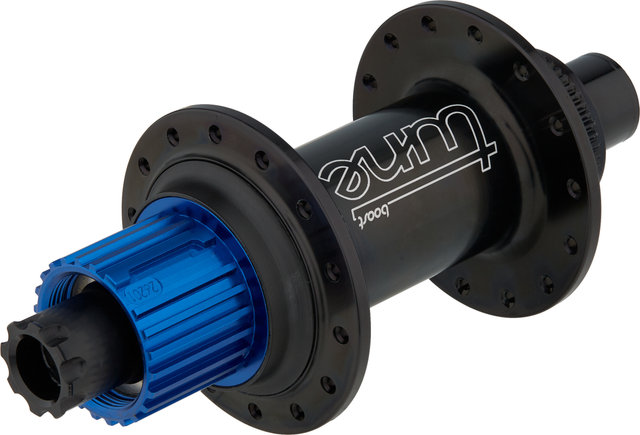

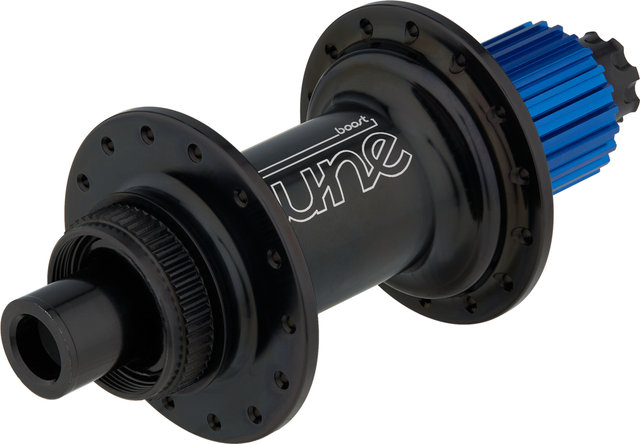

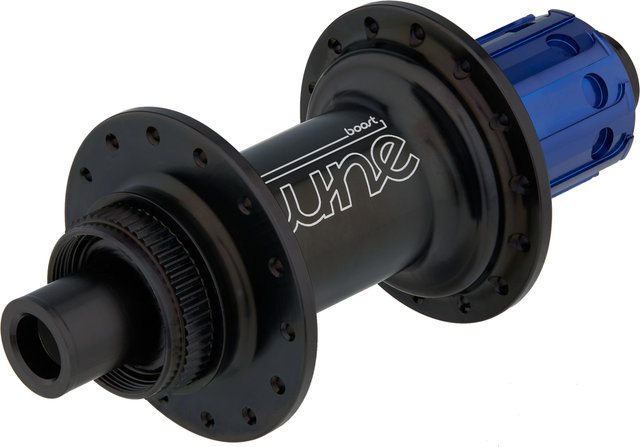

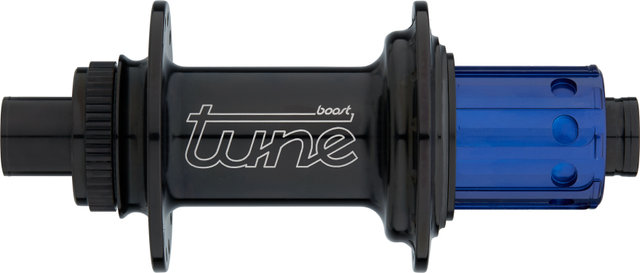

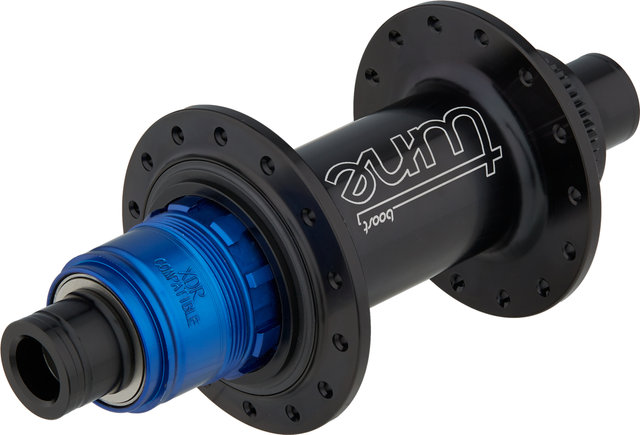

tune ClimbHill Boost CL Center Lock Disc Rear Hub - 2022 Model

Specifications:

Application:

All Mountain, Enduro, Cross Country

Brake Type:

Center Lock Disc

Wheel Standard:

Boost

Freehub Body Type:

3T Sky with 3 titanium pawls

Technical Information:

Body Material:

aluminium

Bearings:

standard ball

Spoke Hole Diameter:

2.4 mm

Approved For:

Weight Limit:

100 kg rider weight, 115 kg system weight

Spoke Tension (max.):

1100 Nm

Features:

• all-rounder hub for mountain bikes with Boost dimensions
• mount for centre-lock brake rotors
• 3T Sky freehub with titanium pawls
• CNC-milled hub body made of anodised aluminium
• for triple-crossed lacing
• recommended spokes: Sapim CX-Ray, Sapim D-Light

Models:

Over Locknut Dimension:

12 x 148 mm thru-axle

Spoke Hole Count:

28 hole

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

The assembly of 11-speed MTB cassettes on a Shimano Road rotor requires a 1.85 mm spacer.

Flange Distance (L/R):

61 mm (37.4 mm/23.6 mm)

Partial Bolt Circle Diameter (L/R):

55.5 mm/55.5 mm

Manufacturer Number:

BHNCHBooCl28BeaSt12mmAluHg10113tbck

Over Locknut Dimension:

12 x 148 mm thru-axle

Spoke Hole Count:

28 hole

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Flange Distance (L/R):

61 mm (37.4 mm/23.6 mm)

Partial Bolt Circle Diameter (L/R):

55.5 mm/55.5 mm

Manufacturer Number:

BHNCHBooCl28BeaSt12mmAluMS3tbck

Over Locknut Dimension:

12 x 148 mm thru-axle

Spoke Hole Count:

28 hole

Freehub:

SRAM XDR

Gearing:

11-/12-speed

Note:

A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub body.

Flange Distance (L/R):

61 mm (37.4 mm/23.6 mm)

Partial Bolt Circle Diameter (L/R):

55.5 mm/55.5 mm

Manufacturer Number:

BHNCHBooCl28BeaSt12mmAluXDXDR3tbck

Over Locknut Dimension:

12 x 148 mm thru-axle

Spoke Hole Count:

32 hole

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

Assembly of 11-speed MTB cassettes on a Shimano Road rotor requires a 1.85 mm spacer.

Flange Distance (L/R):

61 mm (37.4 mm/23.6 mm)

Partial Bolt Circle Diameter (L/R):

55.5 mm/55.5 mm

Manufacturer Number:

BHNCHBooCl32BeaSt12mmAluHg10113tbck

Over Locknut Dimension:

12 x 148 mm thru-axle

Spoke Hole Count:

32 hole

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Flange Distance (L/R):

61 mm (37.4 mm/23.6 mm)

Partial Bolt Circle Diameter (L/R):

55.5 mm/55.5 mm

Manufacturer Number:

BHNCHBooCl32BeaSt12mmAluMS3tbck

Over Locknut Dimension:

12 x 148 mm thru-axle

Spoke Hole Count:

32 hole

Freehub:

SRAM XDR

Gearing:

11-/12-speed

Note:

A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub body.

Flange Distance (L/R):

61 mm (37.4 mm/23.6 mm)

Partial Bolt Circle Diameter (L/R):

55.5 mm/55.5 mm

Manufacturer Number:

BHNCHBooCl32BeaSt12mmAluXDXDR3tbck

Contents:

• 1 x tune ClimbHill Boost CL Center Lock Disc hub
• 1 x spacer (only for version with Shimano or SRAM XDR freehub)
