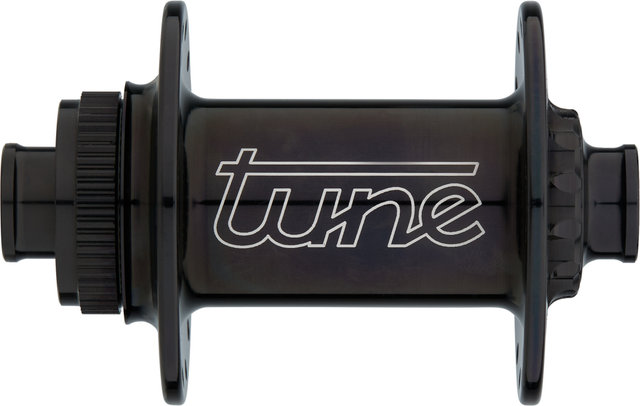

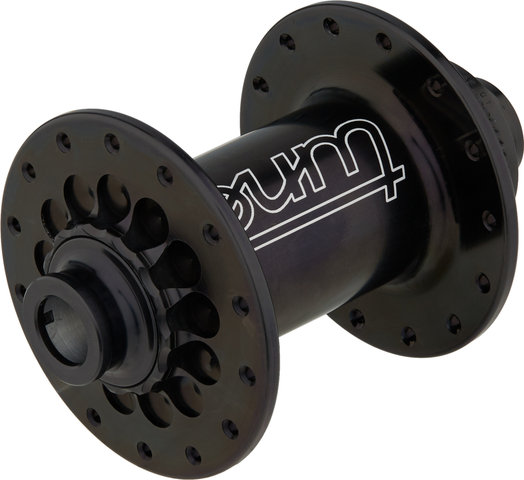

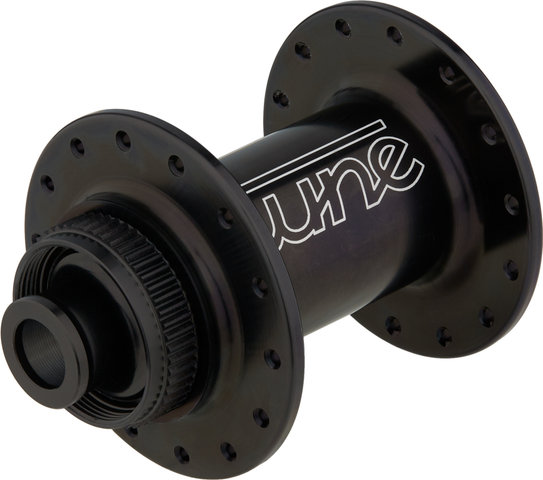

tune KillHill CL Center Lock Disc Front Hub
Item number: 86534
Specifications:
- Application:
- Road, Cyclocross, Gravel, All Mountain
- Brake Type:
- Center Lock Disc
- Wheel Standard:
- Boost
Technical Information:
- Body Material:
- aluminium
- Bearings:
- standard ball
- Spoke Hole Diameter:
- 2.4 mm
Approved For:
- Weight Limit:
- 100 kg rider weight, 115 kg system weight
- Spoke Tension (max.):
- 1100 Nm
Features:
- all-rounder front hub for mountain bikes and road bikes (depending on number of holes)
- mount for centre-lock brake rotors
- CNC-milled hub body made of anodised aluminium
- 24-hole: double-crossed spoke lacing
- 28-hole: triple-crossed spoke lacing
- recommended spokes: Sapim CX-Ray, Sapim D-Light
Models:
12 x 100 mm / 24 hole:- Application:
- Road
- Over Locknut Dimension:
- 12 x 100 mm thru-axle
- Spoke Hole Count:
- 24 hole
- Flange Distance (L/R):
- 56.2 mm (22.9 mm/33.3 mm)
- Partial Bolt Circle Diameter (L/R):
- 55.5 mm/55.5 mm
- Manufacturer Number:
- BVNKHCl24BeaSt12mmAlubck
12 x 100 mm / 28 hole:
- Application:
- Road, Cyclocross, Gravel, All Mountain
- Over Locknut Dimension:
- 12 x 100 mm thru-axle
- Spoke Hole Count:
- 28 hole
- Flange Distance (L/R):
- 56.2 mm (22.9 mm/33.3 mm)
- Partial Bolt Circle Diameter (L/R):
- 55.5 mm/55.5 mm
- Manufacturer Number:
- BVNKHCl28BeaSt12mmAlubck
Contents:
- 1 x tune KillHill CL Center Lock Disc hub
