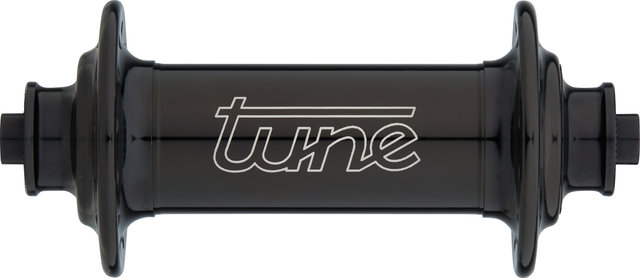

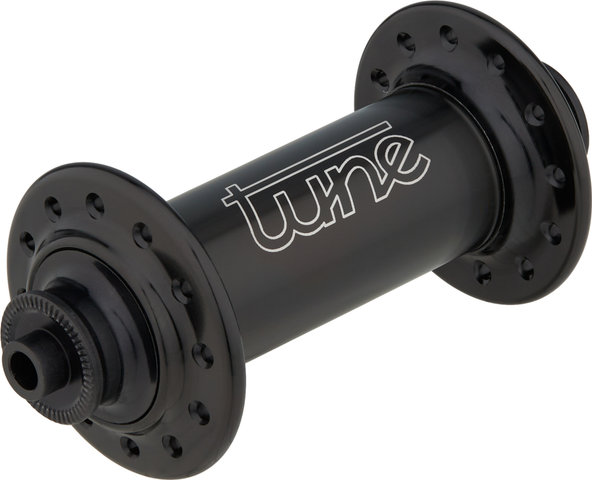

tune Mig Front Hub Rim Brake
Item number: 86537
Specifications:
- Application:
- Road
- Brake Type:
- rim brake
Technical Information:
- Body Material:
- aluminium
- Bearings:
- standard ball
- Spoke Hole Diameter:
- 2.4 mm
Approved For:
- Weight Limit:
- 100 kg rider weight, 110 kg system weight
- Spoke Tension (max.):
- 1050 Nm
Features:
- lightweight front hub for road bikes with rim brakes
- CNC-milled hub body made of anodised aluminium
- radial lacing
- recommended spokes: Sapim CX-Ray, Sapim D-Light
Models:
9 x 100 mm / 20 hole:- Over Locknut Dimension:
- 9 x 100 mm quick release
- Spoke Hole Count:
- 20 hole
- Flange Distance (L/R):
- 70 mm (35 mm/35 mm)
- Partial Bolt Circle Diameter (L/R):
- 37.5 mm/37.5 mm
- Manufacturer Number:
- BVNMig20BeaStQR5Alubck
9 x 100 mm / 24 hole:
- Over Locknut Dimension:
- 9 x 100 mm quick release
- Spoke Hole Count:
- 24 hole
- Flange Distance (L/R):
- 70 mm (35 mm/35 mm)
- Partial Bolt Circle Diameter (L/R):
- 37.5 mm/37.5 mm
- Manufacturer Number:
- BVNMig24BeaStQR5Alubck
Contents:
- 1 x tune Mig rim brake hub
