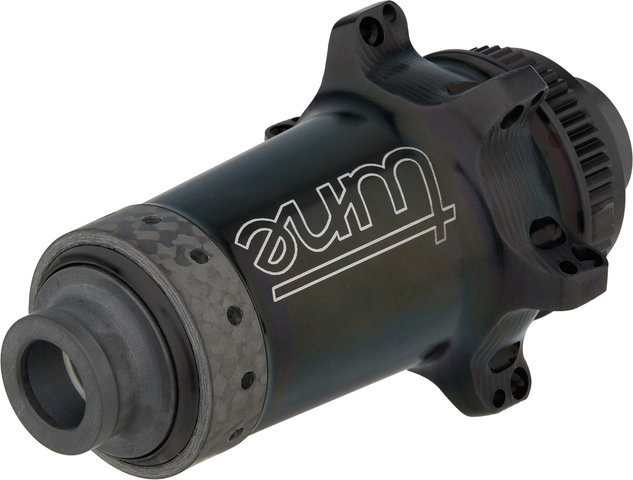

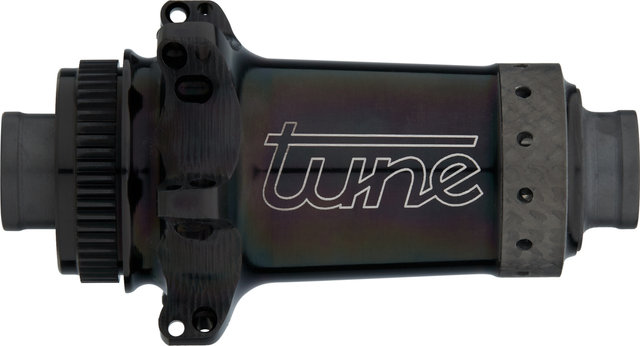

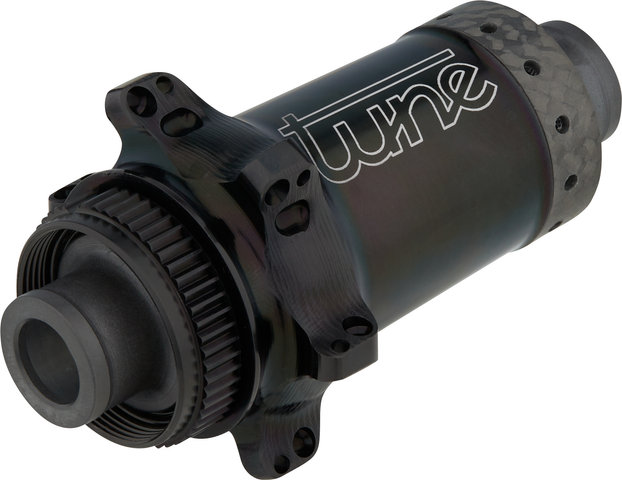

tune Princess CL Center Lock Disc Front Hub

Specifications:

Application:

Road

Brake Type:

Center Lock Disc

Technical Information:

Body Material:

aluminium

Bearings:

ceramic bearings with carbon end caps

Spoke Hole Diameter:

2.4 mm

Approved For:

Weight Limit:

90 kg rider weight, 105 kg system weight

Spoke Tension (max.):

1100 Nm

Features:

• front hub for competition-ready road bikes
• mount for centre-lock brake rotors
• smooth-running ceramic hybrid ball bearings ensure particularly quiet running
• carbon reinforced flange on one side
• CNC-milled hub body made of anodised aluminium
• for radial lacing on the left, double-crossed on the right
• recommended spokes: Sapim CX-Ray, Sapim D-Light

Models:

12 x 100 mm / 24 hole:

Over Locknut Dimension:

12 x 100 mm thru-axle

Spoke Hole Count:

24 hole

Flange Distance (L/R):

53.1 mm (20.7 mm/32.4 mm)

Partial Bolt Circle Diameter (L/R):

51.6 mm/28.2 mm

Manufacturer Number:

BVNPssCl24BeaCer12mmCarbck

Contents:

• 1 x tune Princess CL Center Lock Disc hub
