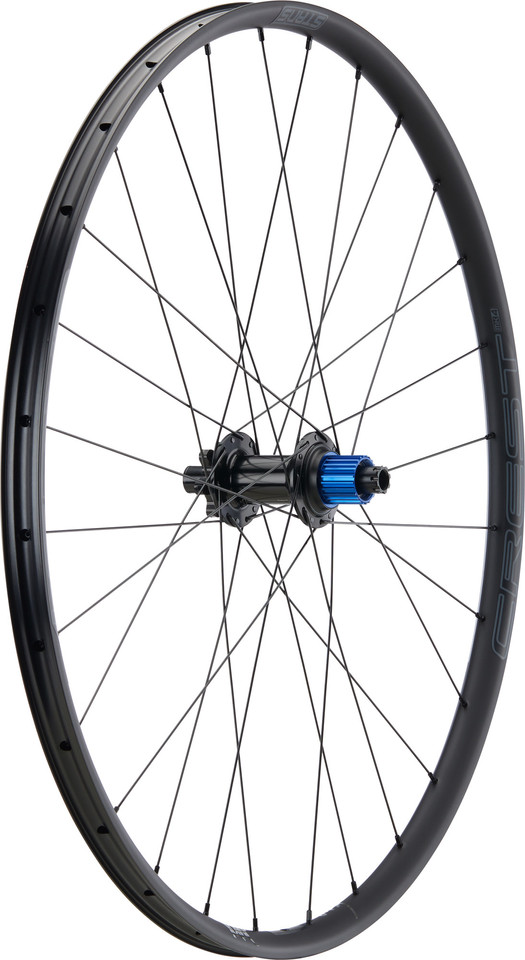

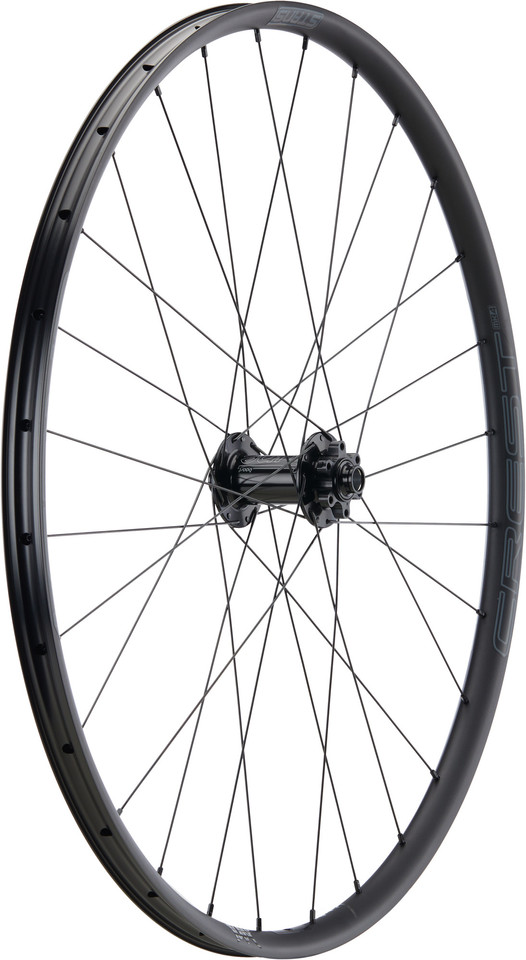

tune Race 25 Boost Disc 6-bolt 29" Wheelset

Specifications:

Application:

Cross Country

Wheel Size:

29"

Tyre Type:

clincher tyre

Number of Spokes:

28

Brake Type:

6-bolt disc

Wheel Standard:

Boost

Tubeless System:

Tubeless Ready

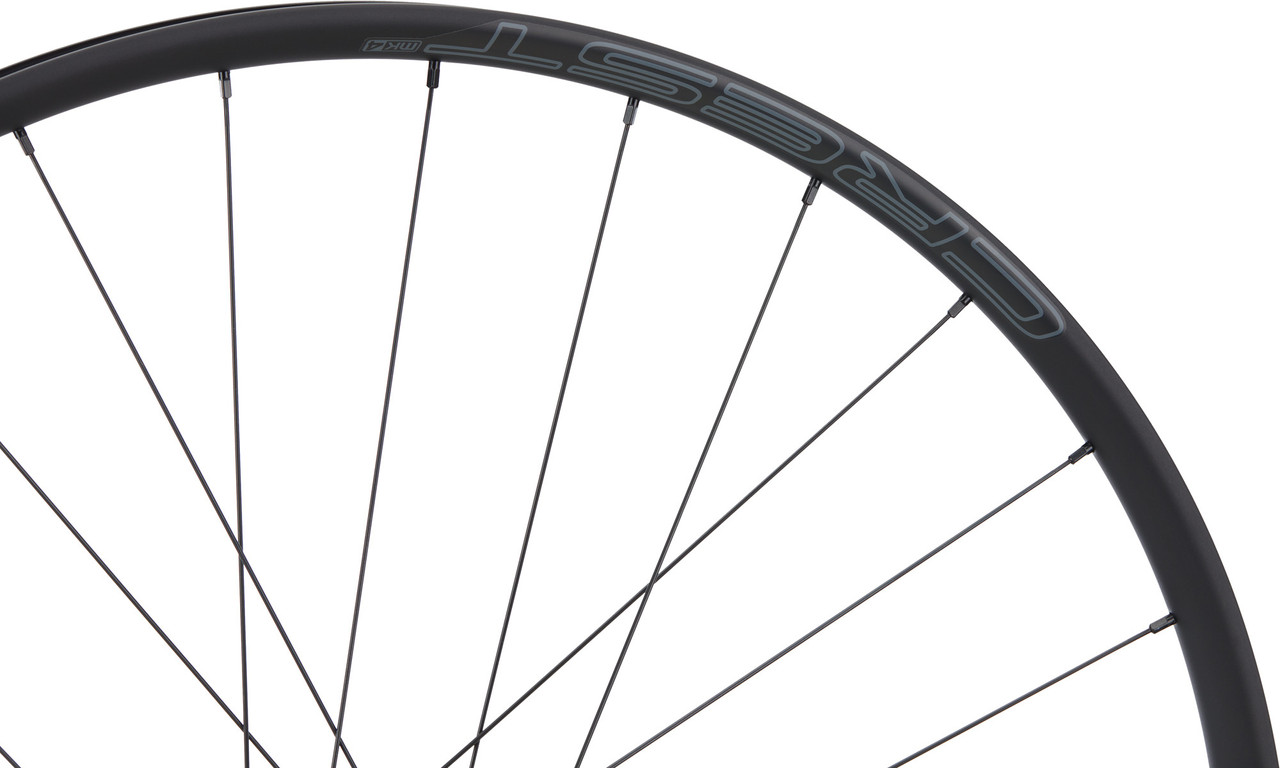

Technical Information - Rim:

Type:

NoTubes Crest MK4

Rim Flange:

with hook

Dimensions (ETRTO):

25-622

Inner Width:

25 mm

Outer Width:

28.4 mm

Depth:

18 mm

Valve Hole Diameter:

SV / Presta (6.5 mm)

Rim Material:

Aluminium

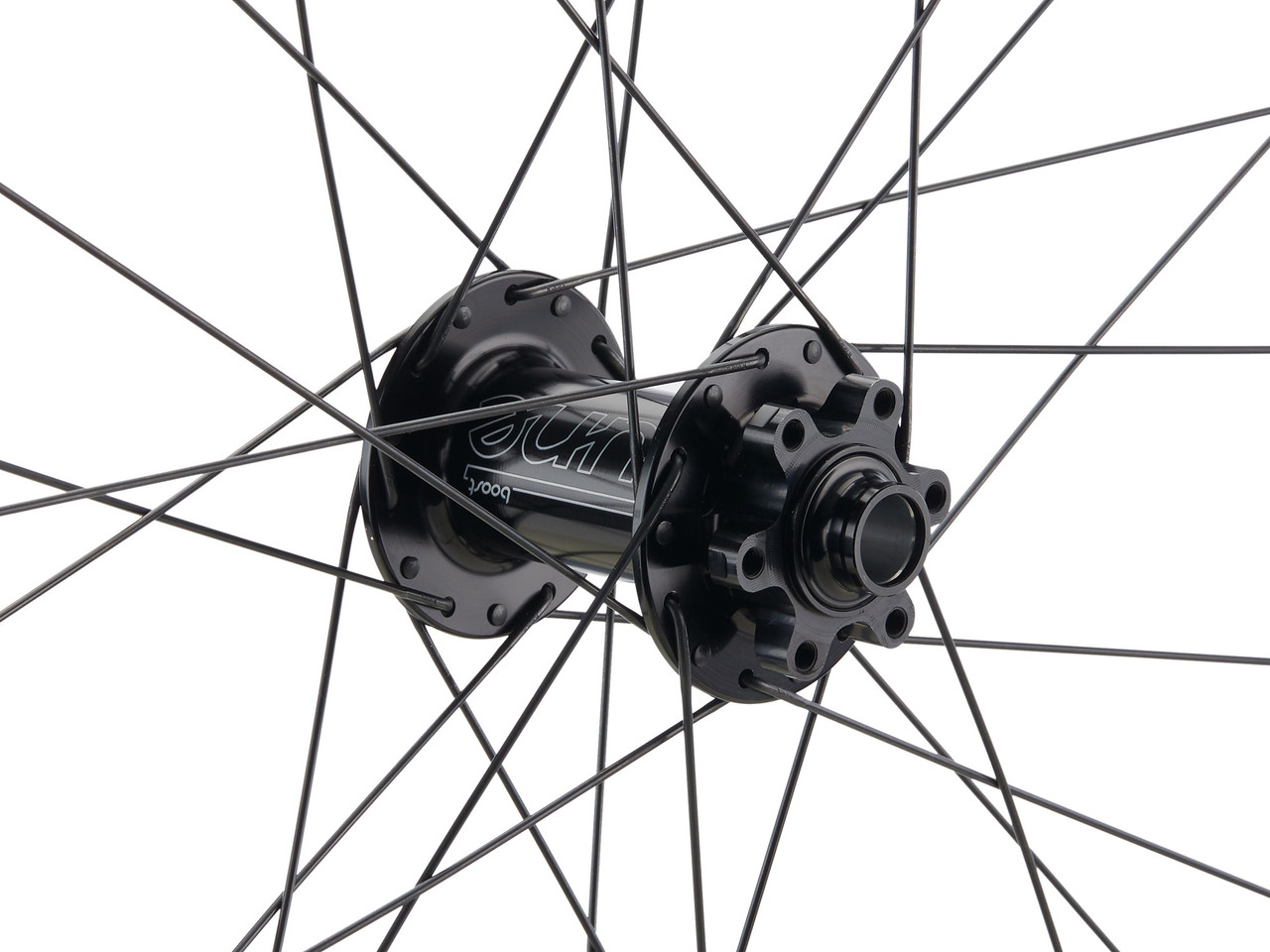

Technical Information - Front Hub:

Type:

tune KillHill

Over Locknut Dimension:

15 x 110 mm thru-axle

Bearings:

standard ball

Body Material:

Aluminium

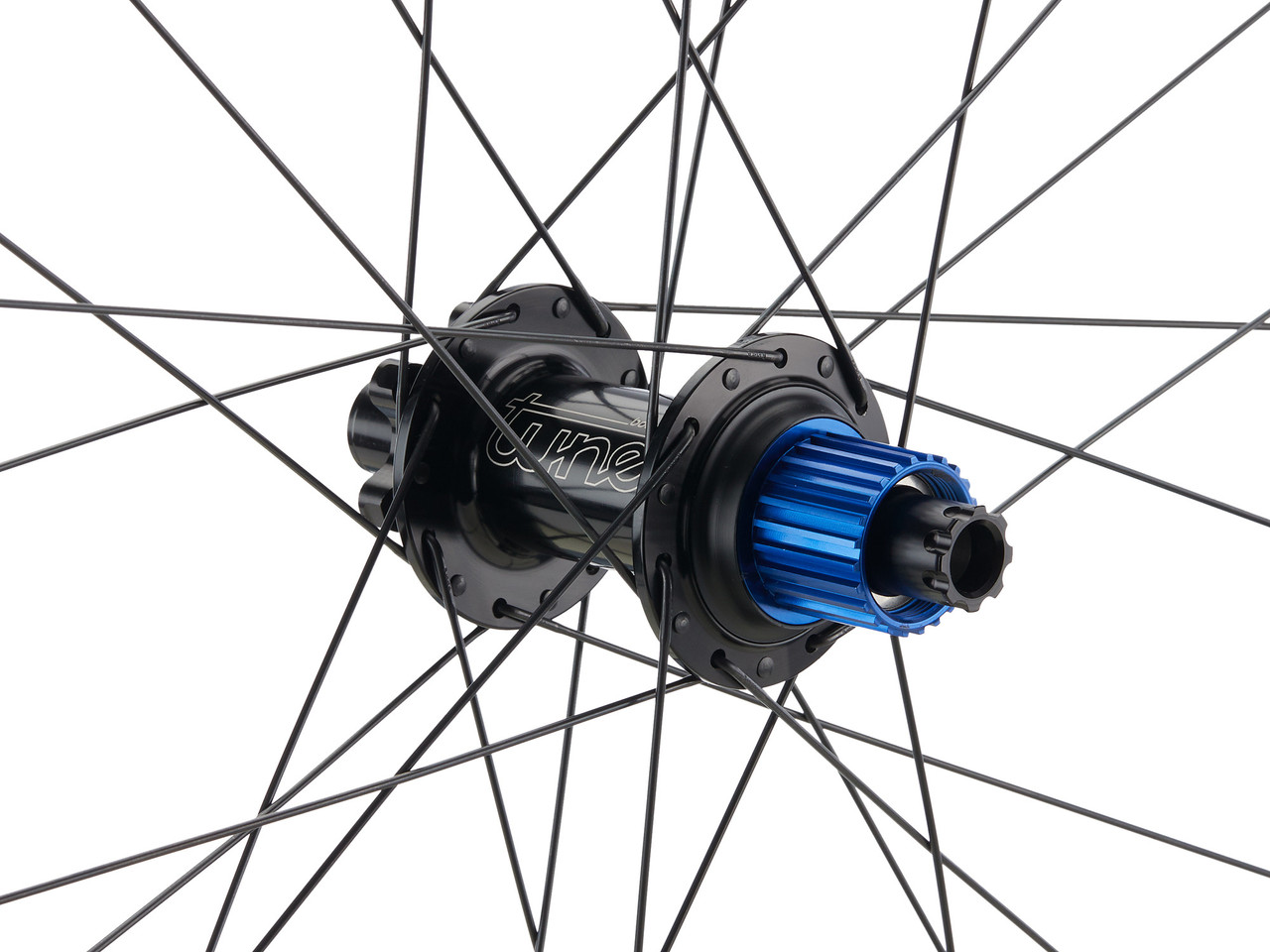

Technical Information - Rear Hub:

Type:

tune ClimbHill

Over Locknut Dimension:

12 x 148 mm thru-axle

Bearings:

standard ball

Body Material:

Aluminium

Freehub Body Material:

Aluminium

Freehub Body:

3T Sky with 3 titanium pawls

Technical Information - Lacing:

Front Lacing Pattern:

3-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

SAPIM D-Light / J-bend / straight / double butted

Spoke Material:

steel

Nipple Type:

Sapim Polyax Secure Lock

Nipple Material:

Aluminium

Approved For:

Weight Limit:

105 kg system weight, 90 kg rider weight

Air Pressure (max.):

3.8 bars (40 mm), 3.1 bars (2.0" ), 2.6 bars (2.3" )

Recommended Tyre Width:

40 mm - 2.3"

Features:

• lightweight 29" MTB Boost wheelset for 6-bolt brake rotors
• aluminium rims from Stan's NoTubes with 25 mm inner width
• KillHill/ClimbHill hub combination for optimised performance
• 3T-Sky freehub with titanium pawls
• recommended rim tape width: 28 mm
• recommended valve height: 35 mm

Note from the manufacturer:

Models:

Freehub:

Shimano Micro Spline

Gearing:

12-speed

Manufacturer Number:

LKVR25KHBoo28BeaSt15mmAluDLNipbck + LKHR25CHBoo28BeaSt12mmAluMS3tDLNipbck

Freehub:

SRAM XDR

Gearing:

11-/12-speed

Note:

A 1.8 mm spacer ring is required to mount XD cassettes on an XDR freehub body.

Manufacturer Number:

LKVR25KHBoo28BeaSt15mmAluDLNipbck + LKHR25CHBoo28BeaSt12mmAluXDXDR3tDLNipbck

Contents:

• 1 x tune Race 25 Boost Disc 6-bolt 29" wheelset (front and rear wheel)
• 1 x spacer (only for version with SRAM XDR freehub)
