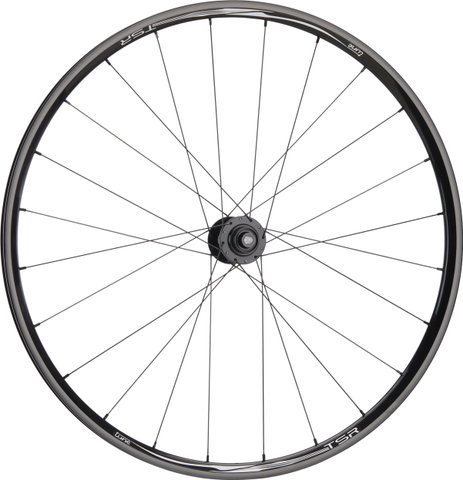

tune TSR22 Center Lock Disc 28" Wheelset

Specifications:

Application:

Road

Wheel Size:

28"

Tyre Type:

clincher tyre

Number of Spokes:

24 (front), 28 (rear)

Brake Type:

Center Lock Disc

Tubeless System:

Tubeless Ready

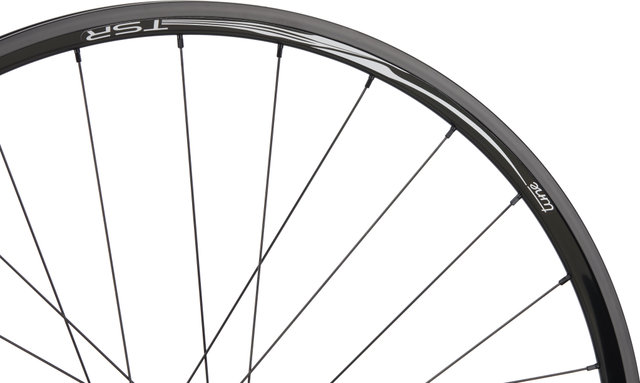

Technical Information - Rim:

Type:

tune TSR22

Rim Flange:

with hook

Dimensions (ETRTO):

19-622

Inner Width:

19 mm

Outer Width:

24 mm

Depth:

22 mm

Valve Hole Diameter:

SV/Presta (6.5 mm)

Rim Material:

aluminium

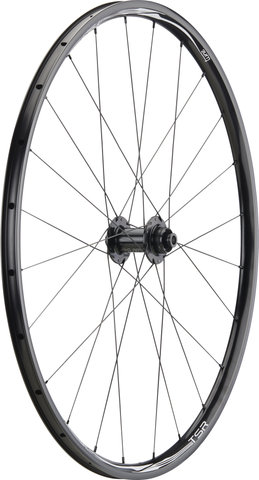

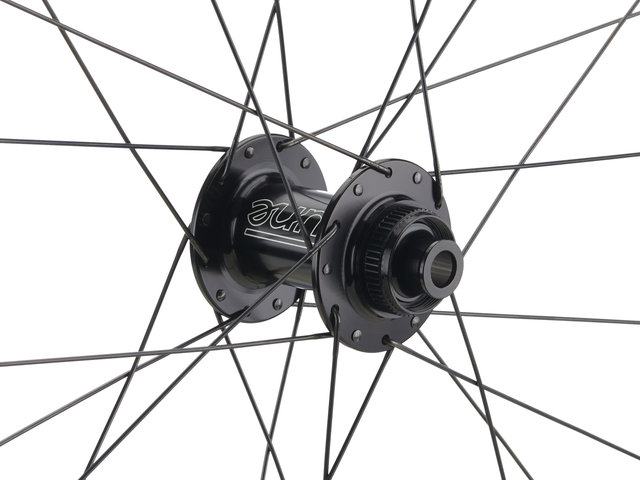

Technical Information - Front Hub:

Type:

tune KillHill

Over Locknut Dimension:

12 x 100 mm thru-axle

Bearings:

standard ball

Body Material:

aluminium

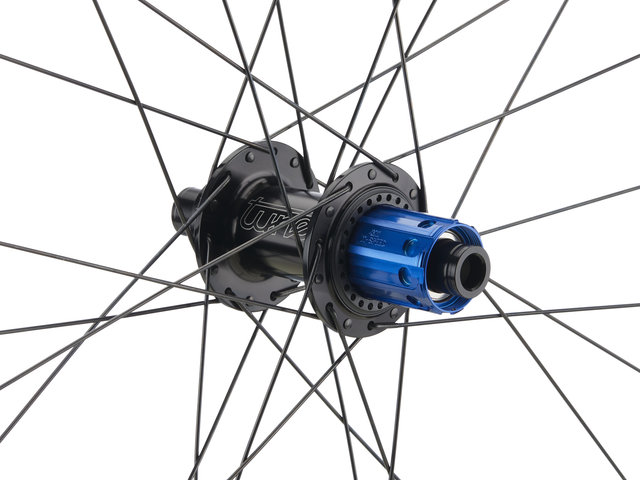

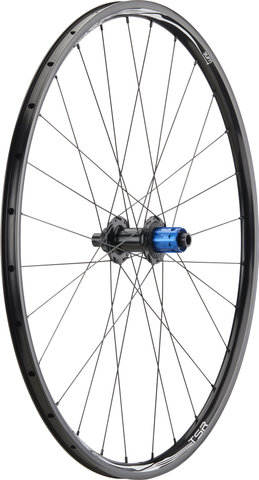

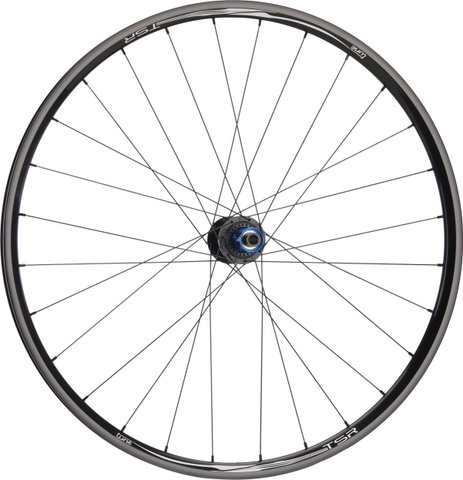

Technical Information - Rear Hub:

Type:

tune ClimbHill

Over Locknut Dimension:

12 x 142 mm thru-axle

Bearings:

standard ball

Body Material:

aluminium

Freehub Body Material:

aluminium

Freehub Body:

3T Sky with 3 titanium pawls

Technical Information - Lacing:

Front Lacing Pattern:

2-cross

Rear Lacing Pattern:

3-cross

Spoke Type:

SAPIM D-Light / J-bend / straight / double butted

Spoke Material:

steel

Nipple Type:

Sapim Polyax Secure Lock, double square

Nipple Material:

aluminium

Approved For:

Weight Limit:

110 kg system weight, 100 kg rider weight

Air Pressure (max.):

7.5 bars (25 mm), 4.8 bars (32 mm), 3.8 bars (50 mm)

Recommended Tyre Width:

25 - 50 mm

Features:

• fast and lightweight road wheelset for center-lock brake rotors
• 22 mm high aluminium rims offer excellent climbing properties
• good lateral stiffness
• KillHill/ClimbHill hub combination for optimised performance
• 3T Sky freehub with titanium pawls
• recommended rim tape width: 22 mm
• recommended valve height: 35 mm

Models:

Freehub:

Shimano Road

Gearing:

8-/9-/10-/11-/12-speed

Note:

The assembly of 8-/9-/10-speed cassettes on a Shimano Road Rotor requires a 1.85 mm spacer.

Manufacturer Number:

LKVTSR22DKHCl24BeaSt12mmAluDLNipbck + LKHTSR22DCHCl28BeaSt12mmAluHg10113tDLNipbck

Freehub:

SRAM XDR

Gearing:

11-/12-speed

Note:

A 1.8 mm spacer is required to mount XD cassettes on an XDR freehub body.

Manufacturer Number:

LKVTSR22DKHCl24BeaSt12mmAluDLNipbck + LKHTSR22DCHCl28BeaSt12mmAluXDXDR3tDLNipbck

Contents:

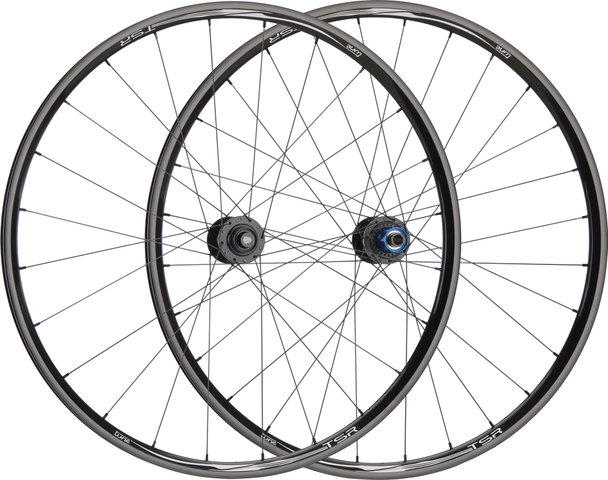

• 1 x tune TSR22 Center Lock Disc 28" wheelset (front and rear wheel)

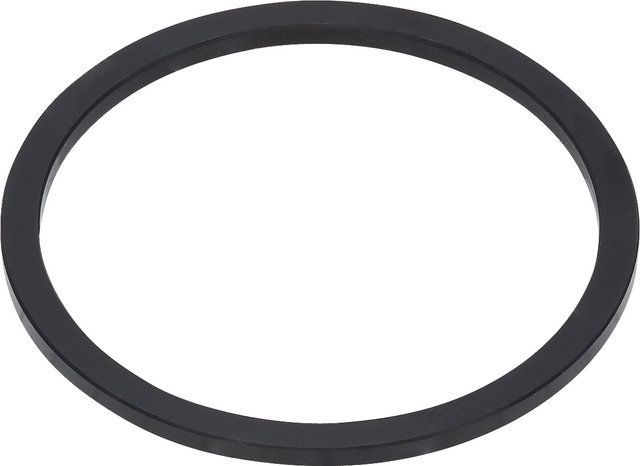

• 1 x spacer
