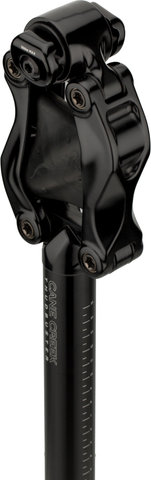

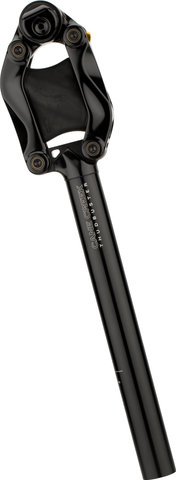

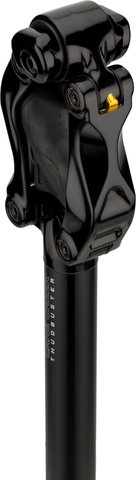

Cane Creek Thudbuster G4 LT Seatpost

Guidelines for replacing E-bike components:

Before you replace components on your e-bike, please read through the guidelines for component replacement for CE-marked E-bikes/pedelecs with pedal assistance.

Specifications:

Application:

Gravel, Road, City & Touring

Diameter:

27.2 mm, 30.9 mm, 31.6 mm

Length:

390 mm (diameter 27.2 mm), 420 mm (diameter 30.9 mm, 31.6 mm)

Setback:

0 mm

Technical Information:

Clamp:

1-bolt

Compatible Saddle Rails:

7 x 7 mm (standard)

Material:

aluminium

Approved For:

Weight Limit:

115 kg total weight

Insertion Depth (max.): 290 mm (diameter 27.2 mm), 320 (diameter 30.9 mm, 31.6 mm)

Insertion Depth (min.):

146 mm

Features:

• proven parallelogram suspension
• 90 mm suspension travel
• medium elastomer pre-assembled
• optionally available elastomers from extra soft to extra hard for adjusting to your riding weight
• tool-free changing
• e-bike ready

Models:

27.2 mm / 390 mm / SB 0 mm:

Diameter:

27.2 mm

Length:

390 mm

Setback:

0 mm

Manufacturer Number:

SP7A272

30.9 mm / 420 mm / SB 0 mm :

Diameter:

30.9 mm

Length:

420 mm

Setback:

0 mm

Manufacturer Number:

SP7A309

31.6 mm / 420 mm / SB 0 mm:

Diameter:

31.6 mm

Length:

420 mm

Setback:

0 mm

Manufacturer Number:

SP7A316

Order Together:

Cane Creek's Thudbuster G4 LT seatpost can be adjusted to fit the rider's weight using elastomers. They can be exchanged in seconds without tools.

Contents:

1 x Cane Creek Thudbuster G4 LT Seatpost
