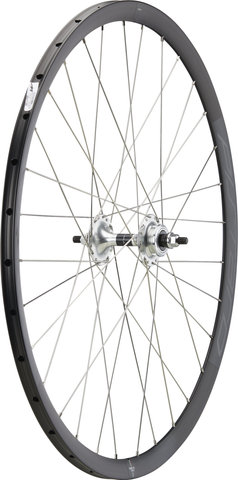

Miche Pistard Tubular Track Wheelset

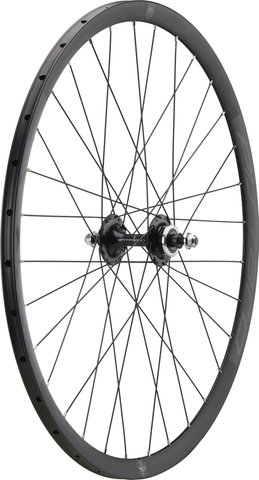

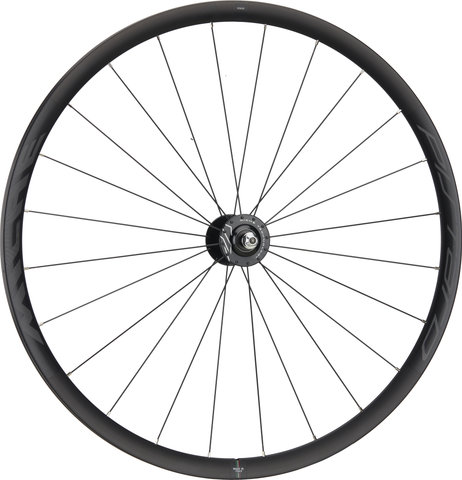

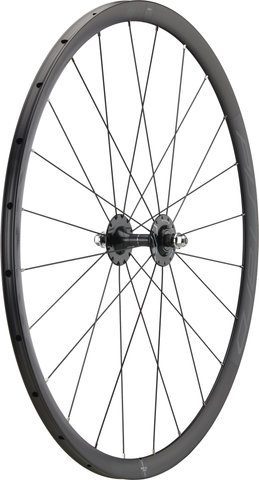

The Pistard Tubular from Miche is a tubular wheelset exclusively for track cycling. It has 28mm high and 20mm wide aluminium rims, 24 stainless steel spokes at the front and 32 at the rear, and screw-in axle hubs with high flanges that have low-friction bearings.

Specifications:

Application:

Track

Wheel Size:

28"

Tyre Type:

tubular

Number of Spokes:

24 (front), 32 (rear)

Brake Type:

none

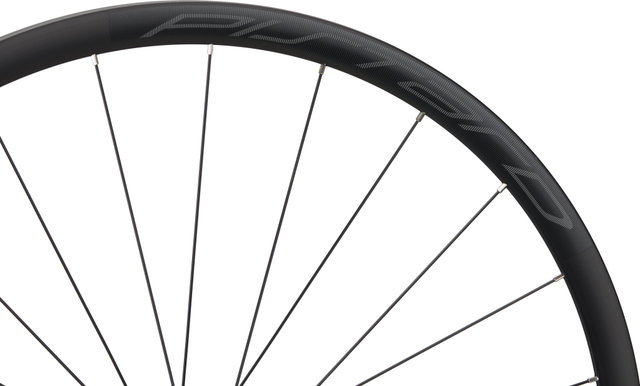

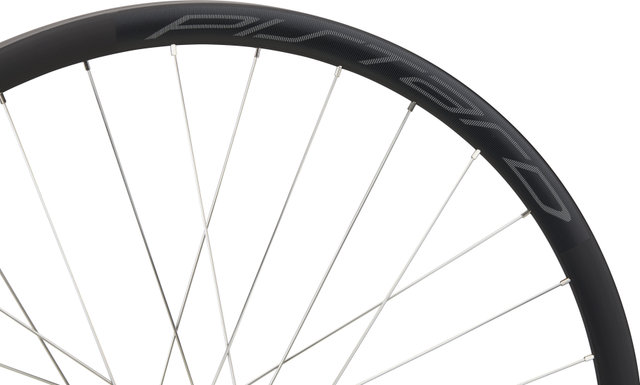

Technical Information - Rim:

Dimensions (ETRTO):

20-633

Rim Width:

20 mm

Depth:

28 mm

Valve Hole Diameter:

SV / Presta (6.5 mm)

Rim Material:

aluminium

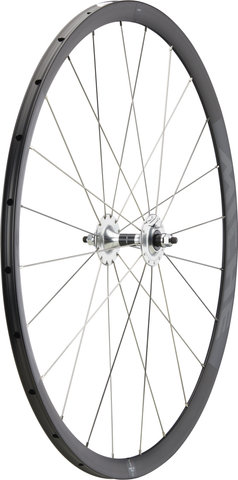

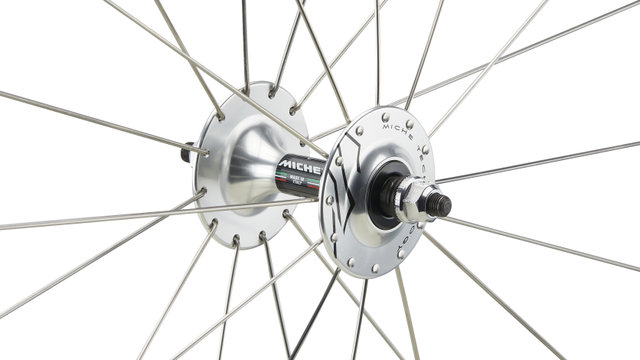

Technical Information - Front Hub:

Type:

Miche high flange

Bearings:

Miche

Over Locknut Dimension:

9 x 100 mm threaded axle

Body Material:

aluminium

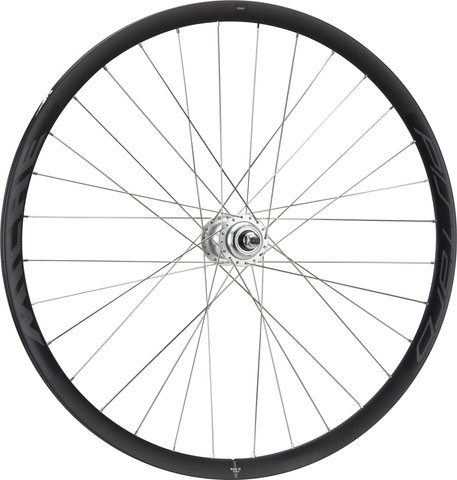

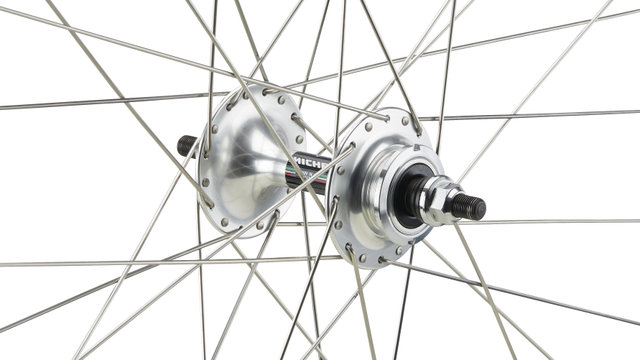

Technical Information - Rear Hub:

Type:

Miche high flange

Bearings:

Miche

Over Locknut Dimension:

10 x 120 mm threaded axle

Body Material:

aluminium

Technical Information - Lacing:

Front Lacing Pattern:

radial

Rear Lacing Pattern:

radial (left), 2-cross (right)

Spoke Type:

round / J-Bend

Spoke Material:

stainless steel

Nipple Material:

brass

Approved For:

Weight Limit:

110 kg rider weight + accessories

Recommended Tyre Width:

21 - 25 mm

Features:

• exclusively for track use (ASTM category 1)
• forged aluminium hubs with sealed, low-friction bearings
• Singlespeed
• matt finish

Colour info:

black-silver:

• Rim: black
• Hubs: silver
• Spokes: silver
• Nipples: silver

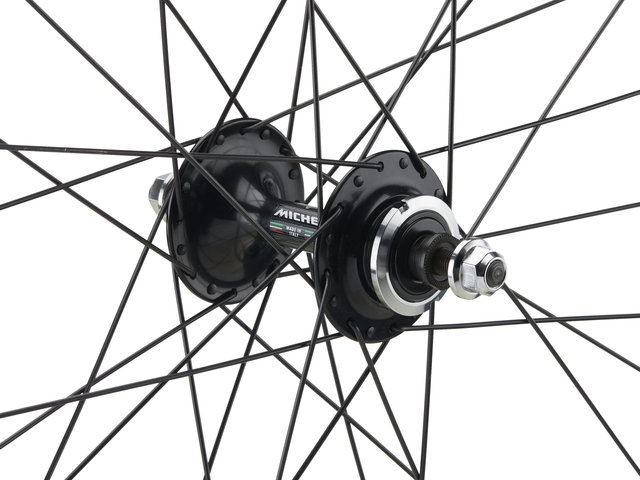

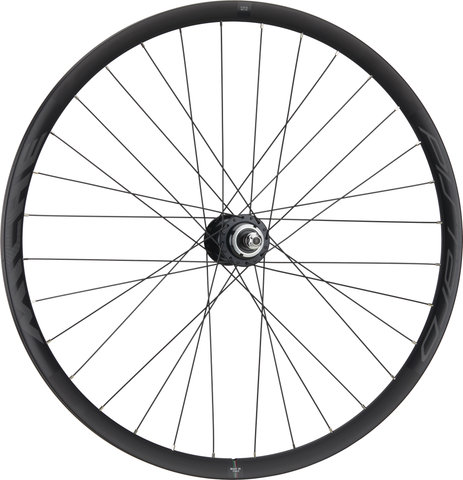

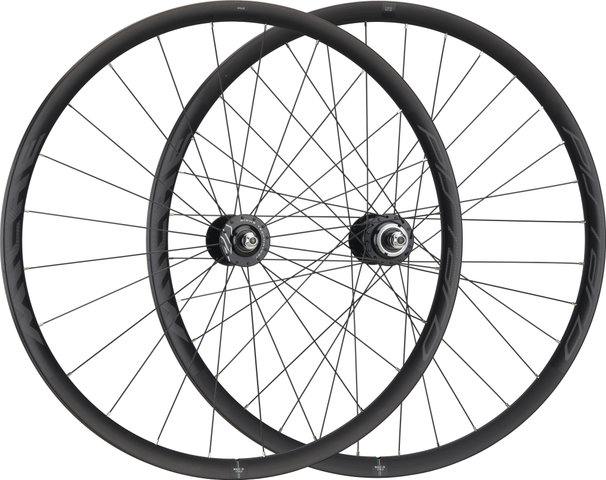

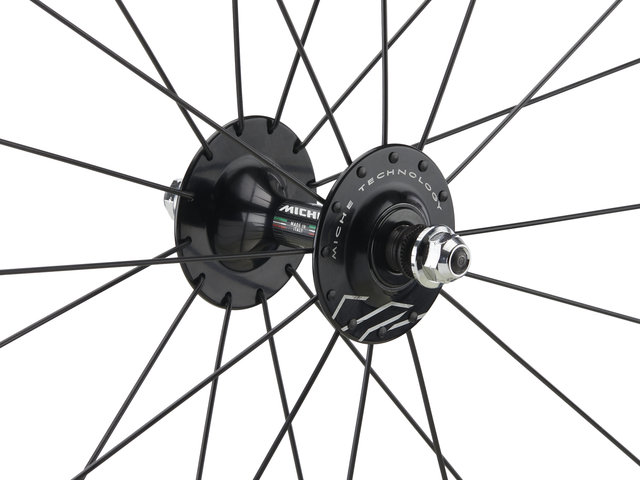

black-black:

• Rim: black
• Hubs: black
• Spokes: black
• Nipples: silver

Models:

28" set (front 9x100 + rear 10x120):

Freehub:

screw-on cassette

Sprocket Mount:

threaded (35x24)

Gearing:

1x

Manufacturer Numbers:

WHPIT1BST0000 (black-silver), WHPIT2BBT0000 (black-black)

Contents:

• 1 x Miche Pistard Tubular wheelset (front and rear)
